High-temperature glass sensing membrane
Fermentation & high temperature · XF263HT

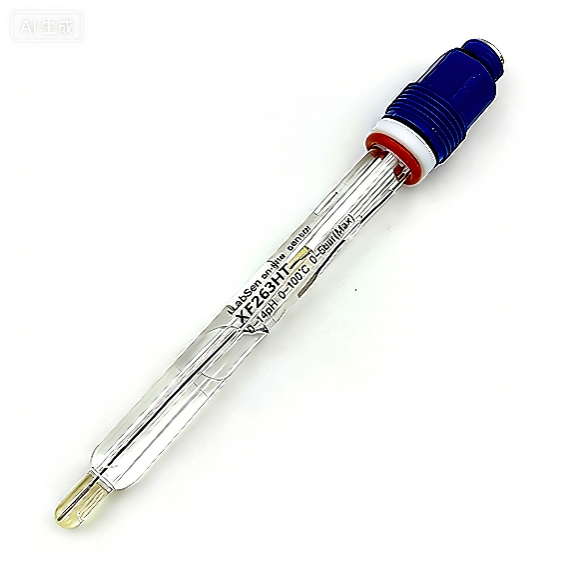

High-temperature fermentation pH sensor
A liquid-electrolyte pH sensor for high-temperature fermentation, bioprocess reactors and repeated CIP/SIP service.
Liquid electrolyte0–130°CCIP / SIP
Structured from the current technical file
The values below come from the current model file. Final housing, membrane, cable, insertion depth, interface and accessories are controlled by the configured project datasheet.
01
Construction and product highlights
High-temperature liquid reference electrolyte
Dual-junction design
Compatible with CIP and SIP steam cleaning
More than 30 fermentation batches stated in the technical file
Optional annular PTFE salt-bridge upgrade
02
Verified technical specifications
XF263HT is positioned for fermentation with liquid electrolyte. Confirm sterilization cycle, insertion depth and mounting before ordering.
- Measurement range
- 0–14 pH
- Operating temperature
- 0–130 °C
- Pressure range
- 0–3 bar, 6 bar max
- Temperature compensation
- PT1000 / NTC10K (optional)
- Factory slope
- >95%
- Zero point
- 7 ± 0.25 pH
- Response time
- <30 s
- Reference electrolyte
- High-temperature liquid electrolyte (GFT)
- Protection rating
- IP68
- Housing material
- PPS / PTFE (optional)
03
Recommended process fit
Biopharmaceutical fermentation
For online pH monitoring in sterilized bioprocesses.
Food and beverage fermentation
High-temperature measurement in process vessels and tanks.
Bioreactors
Selected for repeated cleaning and sterilization cycles.
High-temperature fermentation
Liquid-electrolyte construction for demanding process conditions.
04
Items to confirm
To avoid selecting the wrong electrode, provide the real process conditions instead of only the pH range.
- 01Water matrix and main chemical components
- 02Continuous and peak temperature and pressure
- 03Mounting, insertion depth and cable length
- 04Temperature compensation, controller and communication interface
05

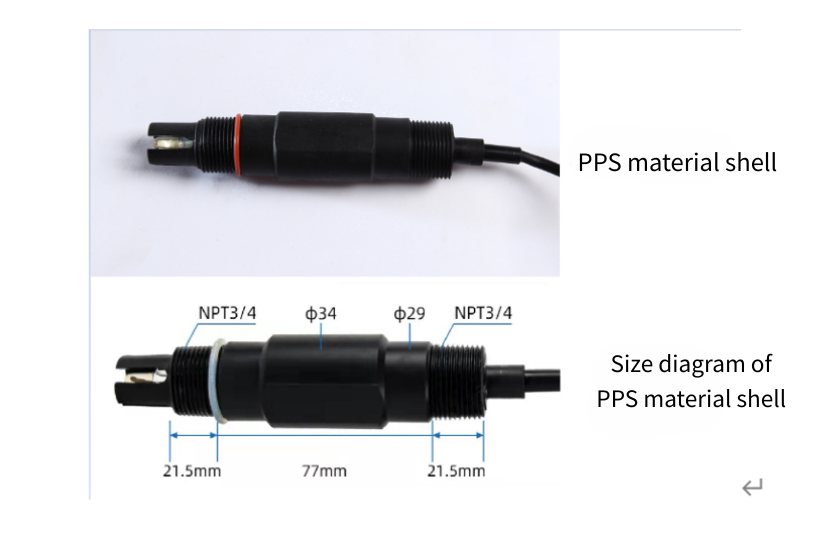

Installation drawing
This drawing comes from the current technical file. Some models may share a housing illustration; confirm the final configured dimensions before ordering.
06
Project documents available on request
After receiving the process conditions, we prepare the current configured documents for the selected model. Unverified certificates or customer references are not presented as standard claims.
Get a quote- Configured technical datasheet→
- Installation and dimension confirmation→
- Cable, interface and accessory schedule→
- Project quotation→
07
Related models in this family

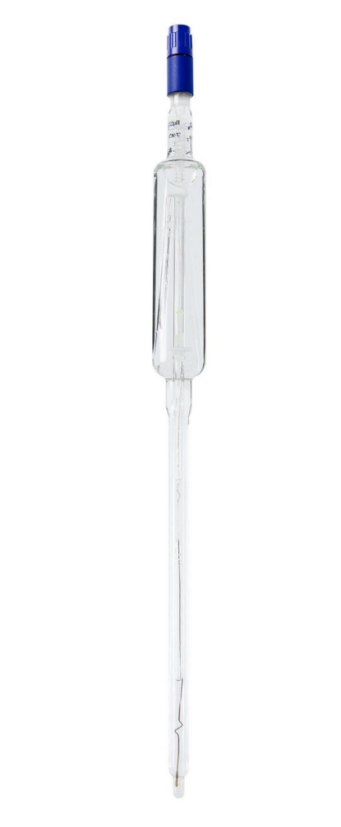

Refillable fermentation pH sensor
View product↗
High-temperature process pH sensor
View product↗08
Model confirmation
Can I order directly from the values on this page?+
The page supports preliminary selection. Final housing, membrane, cable, dimensions, temperature compensation and controller interface must be confirmed before ordering.
What is needed for an accurate quotation?+
Send the water chemistry, temperature, pressure, mounting, cable, interface, quantity and destination so the complete configuration can be quoted.
