Refillable large-chamber construction
Fermentation & high temperature · XF232

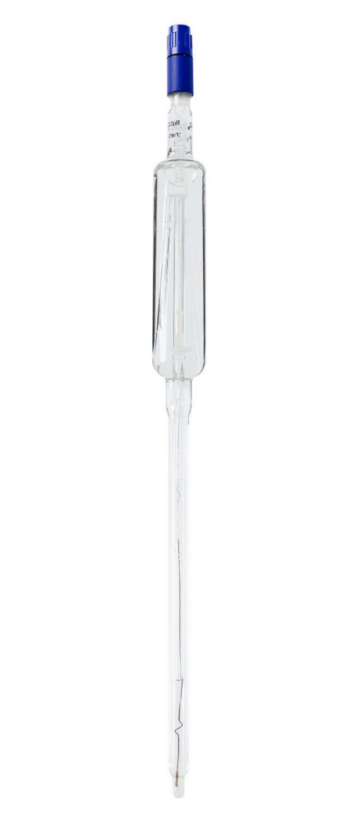

Refillable fermentation pH sensor
A refillable large-chamber pH electrode for high-temperature, high-pressure fermentation and heavy-foam processes.
Refillable electrolyte0–130°CCIP / SIP
Structured from the current technical file
The values below come from the current model file. Final housing, membrane, cable, insertion depth, interface and accessories are controlled by the configured project datasheet.
01
Construction and product highlights
Double-junction design for contamination resistance
High-temperature liquid reference electrolyte
Compatible with high-pressure and in-situ sterilization
More than 30 fermentation batches stated in the technical file
Customizable insertion depth
02
Verified technical specifications
Confirm the water chemistry, continuous and peak temperature, pressure, mounting, insertion depth, cable length and controller interface before ordering.
- Measurement range
- 0–14 pH
- Operating temperature
- 0–130 °C
- Pressure range
- 0–3 bar, 6 bar max
- Temperature compensation
- PT1000 / NTC10K (optional)
- Factory slope
- >95%
- Zero point
- 7 ± 0.25 pH
- Response time
- <30 s
- Reference electrolyte
- GFT liquid (high-temperature type)
- Protection rating
- IP68
03
Recommended process fit
Biopharmaceutical fermentation
Long-term online pH measurement in sterilized fermentation processes.
Food and beverage fermentation
For tanks and reactors requiring CIP/SIP-compatible measurement.
Heavy-foam processes
Large refillable chamber supports demanding fermentation service.
Custom insertion projects
Insertion length is selected for the vessel and mounting arrangement.
04
Items to confirm
To avoid selecting the wrong electrode, provide the real process conditions instead of only the pH range.
- 01Water matrix and main chemical components
- 02Continuous and peak temperature and pressure
- 03Mounting, insertion depth and cable length
- 04Temperature compensation, controller and communication interface
05
Project documents available on request
After receiving the process conditions, we prepare the current configured documents for the selected model. Unverified certificates or customer references are not presented as standard claims.
Get a quote- Configured technical datasheet→
- Installation and dimension confirmation→
- Cable, interface and accessory schedule→
- Project quotation→
06
Related models in this family

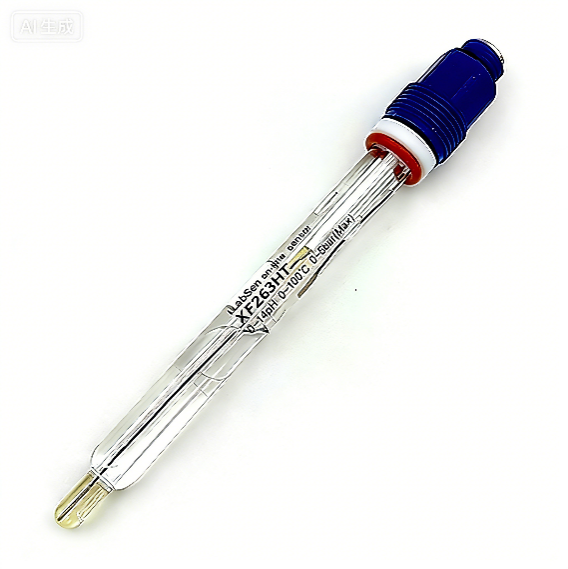

High-temperature fermentation pH sensor
View product↗

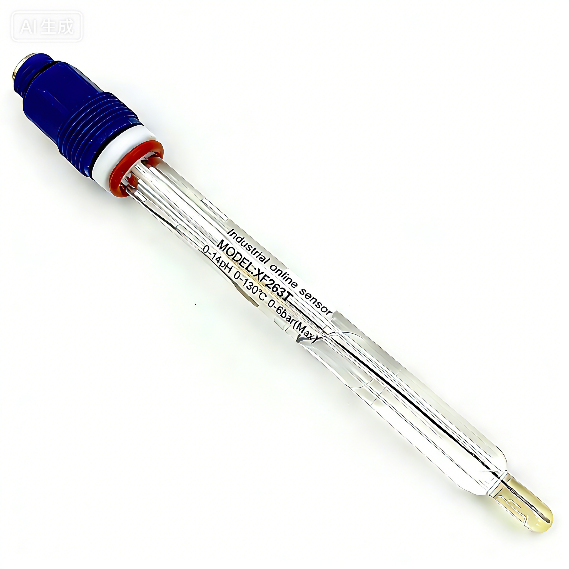

High-temperature process pH sensor
View product↗07
Model confirmation
Can I order directly from the values on this page?+
The page supports preliminary selection. Final housing, membrane, cable, dimensions, temperature compensation and controller interface must be confirmed before ordering.
What is needed for an accurate quotation?+
Send the water chemistry, temperature, pressure, mounting, cable, interface, quantity and destination so the complete configuration can be quoted.
