All-metal sensor housing for demanding industrial duty

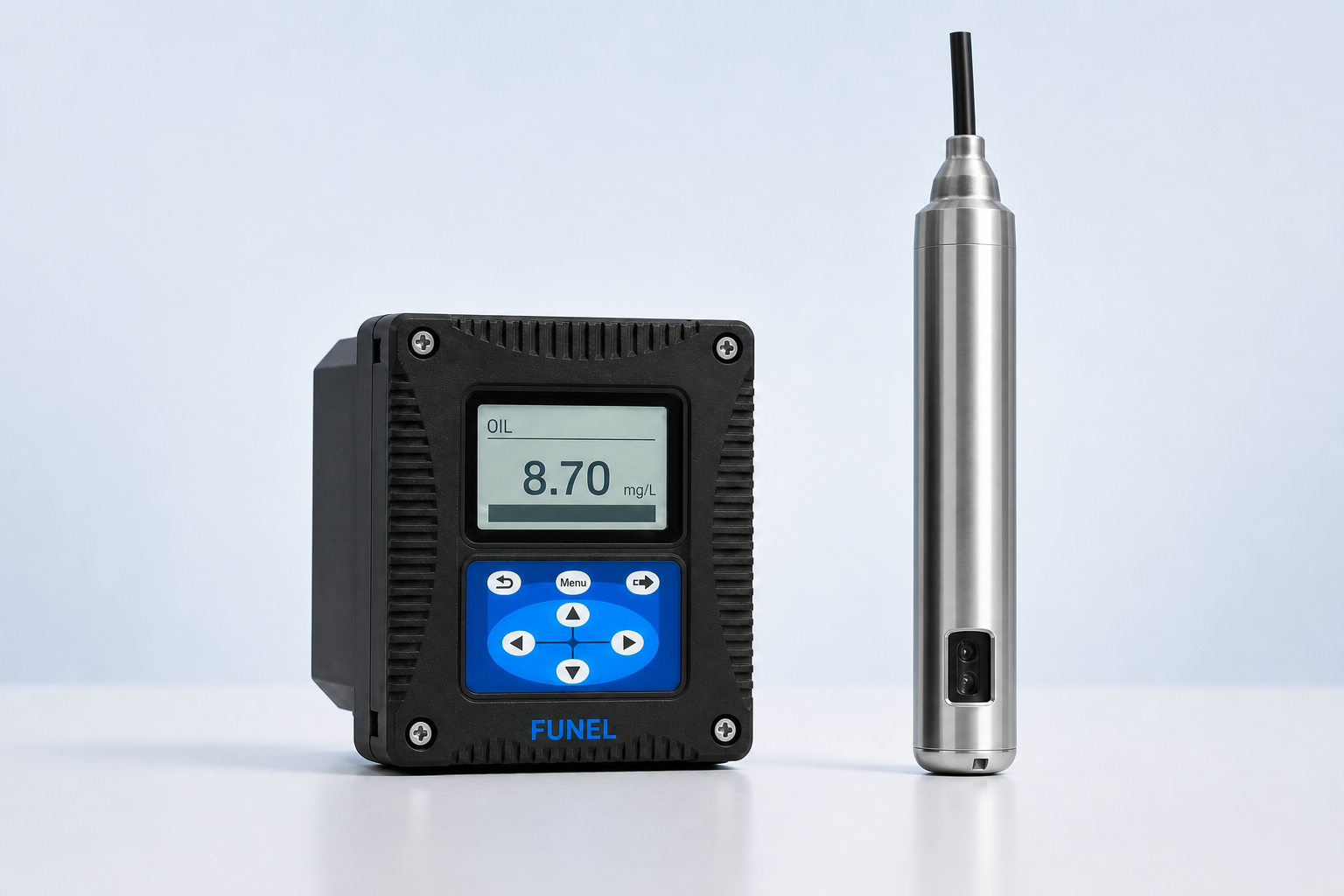

Industrial and seawater analyzer · POIL-800
Wide-Range Online Oil-in-Water Analyzer
The wider-range, higher-pressure model for petroleum, chemical, power, industrial-wastewater and seawater monitoring, with standard SUS316L or titanium-alloy construction.
0–100 mg/L±5% or ±0.15 mg/L≤0.4 MPa
Model-specific values checked against the supplied sheet
POIL-700 and POIL-800 retain separate ranges, accuracy, pressure, construction and dimensions. The black FUNEL transmitter image provides consistent export-market presentation.
01
Measurement principle and product highlights
Reagent-free UV fluorescence measurement for continuous oil-in-water monitoring
LED optical source supports stable long-term operation
Automatic wiper cleaning reduces optical-window maintenance
Optical and electronic design reduces ambient-light interference
Three 4–20 mA outputs, three configurable relays and Modbus RS485
Time display, data storage, historical review and optional wireless transmission
02
Product technical specifications
Confirm the water matrix, petroleum or oil type, minimum/normal/peak concentration, pressure, material, fouling, cleaning, mounting, cable and control interfaces before quotation.
- Measurement principle
- UV fluorescence of petroleum and aromatic compounds
- Measurement range
- 0–100 mg/L (NDSA)
- Accuracy
- ±5% of reading or ±0.15 mg/L, whichever is greater
- Repeatability
- ±2%
- Resolution
- 0.01 mg/L
- Pressure rating
- ≤0.4 MPa
- Calibration
- Sample calibration; slope calibration
- Construction
- SUS316L standard; titanium-alloy seawater version; PUR cable
- Power supply
- 85–500 VAC; 9–36 VDC
- Analog output
- 3 × 4–20 mA
- Relays
- 3 configurable relays
- Digital communication
- Modbus RS485
- Storage temperature
- -15–50°C
- Operating temperature
- 0–45°C, non-freezing
- Sensor dimensions
- Ø60 × 263 mm
- Transmitter dimensions
- 145 × 125 × 162 mm
- Sensor weight
- 2.1 kg
- Transmitter weight
- 1.35 kg
- Sensor protection
- IP68 / NEMA6P
- Transmitter protection
- IP66 / NEMA4X
- Cleaning
- Automatic wiper cleaning
- Cable
- 10 m standard; extendable to 100 m
03
Recommended applications
Petroleum and chemical wastewater
Monitor oil-bearing process water and treated industrial discharge.
Power and industrial water
Track oil contamination in power and industrial water-treatment systems.
Seawater projects
Use the titanium-alloy configuration when the project requires seawater construction.
Environmental monitoring
Measure surface water, groundwater, drinking water and pollution-source discharge.
04
Items to confirm
Identify the water matrix and oil type first, then confirm concentration span, pressure, construction, cleaning and mounting.
- 01Water matrix and petroleum or oil composition
- 02Minimum, normal, peak and alarm concentration
- 03Temperature, pressure, standard SUS316L or seawater titanium construction
- 04Fouling, automatic wiper, mounting, cable, 4–20 mA, relays and RS485
05
Project documents available on request
After receiving the operating conditions, we prepare the configured datasheet, mounting confirmation, I/O schedule and quotation. The clean product image is not a dimensional drawing.
Get a quote- Configured model datasheet→
- Mounting and cleaning confirmation→
- Cable and I/O schedule→
- Project quotation→
06
Compare the other POIL model
Online Oil-in-Water Analyzer
View product↗07
Selection questions
Does UV-fluorescence measurement require reagents?+
No. The supplied sheets describe direct continuous sensing of petroleum fluorescence in water.

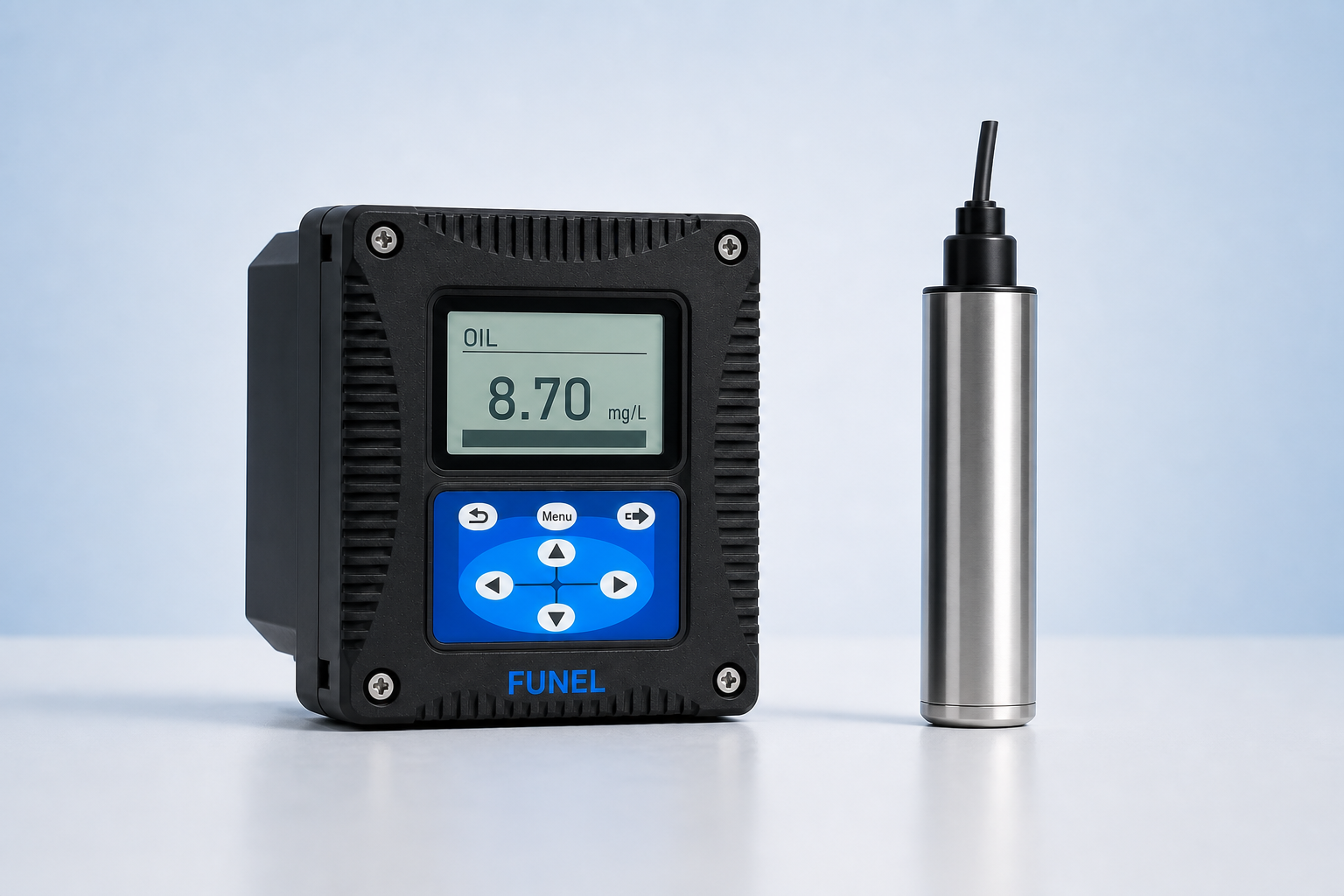

What is the main difference between POIL-700 and POIL-800?+
POIL-700 is 0–50 mg/L, ≤0.1 MPa and Ø60 × 213 mm. POIL-800 is 0–100 mg/L, ≤0.4 MPa and Ø60 × 263 mm, with a titanium seawater option.
Can the website image be used as a technical drawing?+
No. It provides consistent public presentation. Dimensions, interfaces and accessories come from the datasheet and order confirmation.
