Pressure-resistant cylindrical glass bulb
Harsh chemical & anti-fouling · XF264

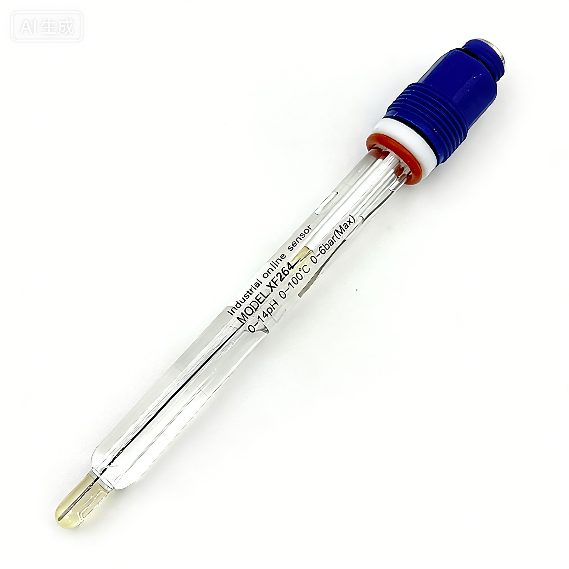

FGD and DeNOx pH sensor
A double-ceramic-junction pH electrode with FGD-specific mixed gel for sulfur-rich, high-solids and heavy-metal process conditions.
FGD-specific mixed gelDouble ceramic junction0–100°C
Structured from the current technical file
The values below come from the current model file. Final housing, membrane, cable, insertion depth, interface and accessories are controlled by the configured project datasheet.
01
Construction and product highlights
GMT mixed-gel intermediate electrolyte
Double ceramic junction designed to resist clogging
Designed for sulfur-rich and high-solids media
Optional annular PTFE salt-bridge upgrade
Cable length can be extended up to 60 m
02
Verified technical specifications
Confirm the water chemistry, continuous and peak temperature, pressure, mounting, insertion depth, cable length and controller interface before ordering.
- Measurement range
- 0–14 pH
- Operating temperature
- 0–100 °C
- Pressure range
- 0–3 bar, 6 bar max
- Temperature compensation
- PT1000 / NTC10K (optional)
- Factory slope
- >95%
- Zero point
- 7 ± 0.25 pH
- Response time
- <30 s
- Reference electrolyte
- GMT mixed gel (FGD-specific type)
- Protection rating
- IP68
- Housing material
- PPS or PTFE (optional)
03
Recommended process fit
Flue-gas desulfurization
Dedicated selection for sulfur-rich FGD process media.
Denitrification
For contaminated exhaust-gas treatment processes.
High suspended solids
Double ceramic junction helps reduce blockage risk.
Heavy-metal process media
For verified chemical conditions within the product limits.
04
Items to confirm
To avoid selecting the wrong electrode, provide the real process conditions instead of only the pH range.
- 01Water matrix and main chemical components
- 02Continuous and peak temperature and pressure
- 03Mounting, insertion depth and cable length
- 04Temperature compensation, controller and communication interface
05

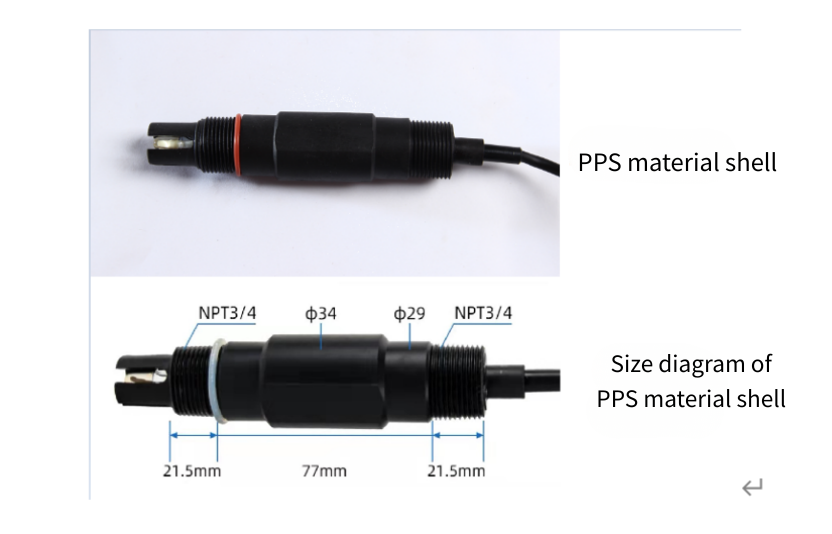

Installation drawing
This drawing comes from the current technical file. Some models may share a housing illustration; confirm the final configured dimensions before ordering.
06
Project documents available on request
After receiving the process conditions, we prepare the current configured documents for the selected model. Unverified certificates or customer references are not presented as standard claims.
Get a quote- Configured technical datasheet→
- Installation and dimension confirmation→
- Cable, interface and accessory schedule→
- Project quotation→
07
Related models in this family
Ion-trapping industrial pH electrode
View product↗
HF-resistant industrial pH sensor
View product↗
Non-porous-junction pH sensor
View product↗08
Model confirmation
Can I order directly from the values on this page?+
The page supports preliminary selection. Final housing, membrane, cable, dimensions, temperature compensation and controller interface must be confirmed before ordering.
What is needed for an accurate quotation?+
Send the water chemistry, temperature, pressure, mounting, cable, interface, quantity and destination so the complete configuration can be quoted.
