Low-temperature-resistant intermediate electrolyte
Low temperature & pure water · XF263L

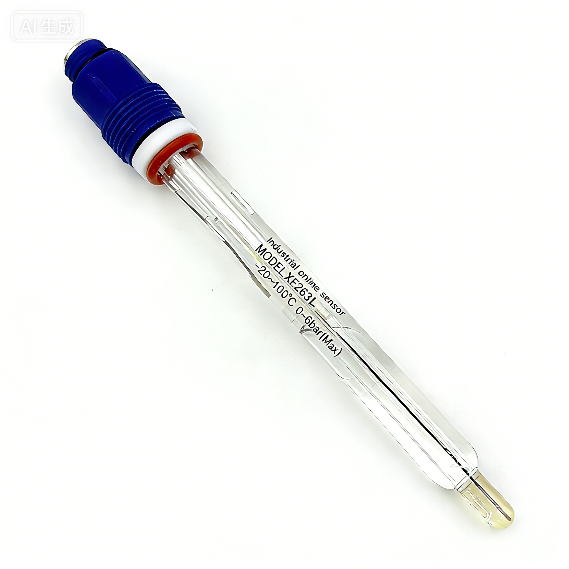

Low-temperature pH electrode
A low-temperature electrolyte pH electrode for frozen brine, surface water, chemical and industrial processes down to -20°C.
-20–100°CLow-temperature gelIP68
Structured from the current technical file
The values below come from the current model file. Final housing, membrane, cable, insertion depth, interface and accessories are controlled by the configured project datasheet.
01
Construction and product highlights
Maintains response speed under low-temperature conditions
Double-junction contamination-resistant construction
Resistance to solvents and strong acids/bases
Optional annular PTFE salt-bridge upgrade
Cable length can be extended up to 60 m
02
Verified technical specifications
Confirm the water chemistry, continuous and peak temperature, pressure, mounting, insertion depth, cable length and controller interface before ordering.
- Measurement range
- 0–14 pH
- Operating temperature
- -20–100 °C
- Pressure range
- 0–3 bar, 6 bar max
- Temperature compensation
- PT1000 / NTC10K (optional)
- Factory slope
- >95%
- Zero point
- 7 ± 0.25 pH
- Response time
- <30 s
- Reference electrolyte
- GFT polymer gel (low-temperature type)
- Protection rating
- IP68
- Housing material
- PPS or PTFE (optional)
03
Recommended process fit
Frozen brine
Low-temperature pH measurement down to the verified -20°C limit.
Surface water
For cold environmental monitoring locations.
Chemical and industrial process
Low-temperature process measurement with selected housing.
Laboratory applications
For chilled samples and controlled low-temperature work.
04
Items to confirm
To avoid selecting the wrong electrode, provide the real process conditions instead of only the pH range.
- 01Water matrix and main chemical components
- 02Continuous and peak temperature and pressure
- 03Mounting, insertion depth and cable length
- 04Temperature compensation, controller and communication interface
05

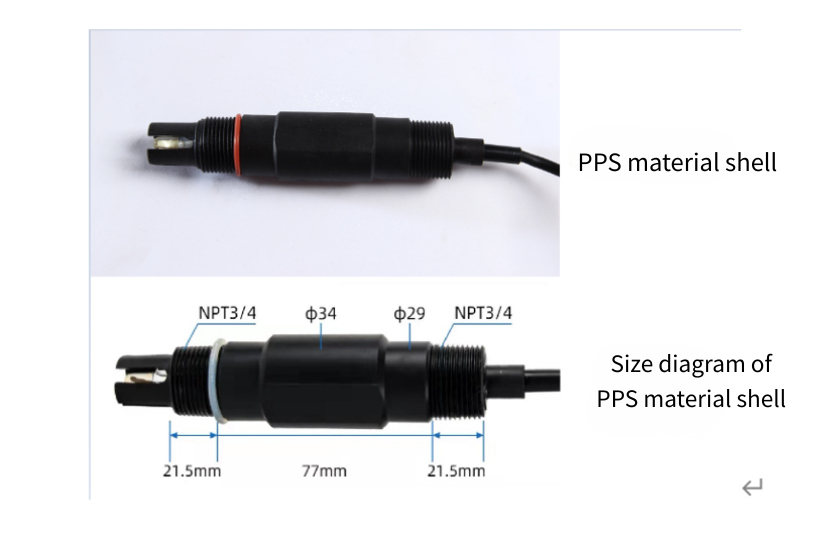

Installation drawing
This drawing comes from the current technical file. Some models may share a housing illustration; confirm the final configured dimensions before ordering.
06
Project documents available on request
After receiving the process conditions, we prepare the current configured documents for the selected model. Unverified certificates or customer references are not presented as standard claims.
Get a quote- Configured technical datasheet→
- Installation and dimension confirmation→
- Cable, interface and accessory schedule→
- Project quotation→
07
Related models in this family
High-temperature pure-water pH sensor
View product↗
Refillable ultra-pure-water pH sensor
View product↗08
Model confirmation
Can I order directly from the values on this page?+
The page supports preliminary selection. Final housing, membrane, cable, dimensions, temperature compensation and controller interface must be confirmed before ordering.
What is needed for an accurate quotation?+
Send the water chemistry, temperature, pressure, mounting, cable, interface, quantity and destination so the complete configuration can be quoted.
