Transmitter functions integrated into the electrode
General process & digital · XF263i

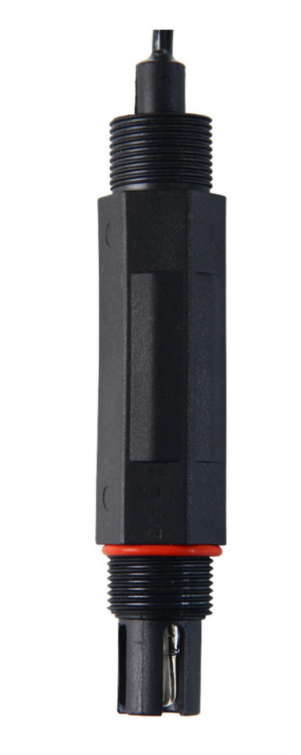

Digital industrial pH electrode
A pH electrode with an integrated microprocessor and direct RS485 Modbus RTU communication for water and process monitoring.
0–14 pHRS485 Modbus RTUIP68
Structured from the current technical file
The values below come from the current model file. Final housing, membrane, cable, insertion depth, interface and accessories are controlled by the configured project datasheet.
01
Construction and product highlights
Standard Modbus RTU protocol over RS485
Improved resistance to environmental signal interference
Double-junction reference design
Fast response for water and industrial monitoring
Cable length can be extended up to 100 m
02
Verified technical specifications
Power supply, wiring, register map and final housing material are not complete in the source file and must be confirmed before quotation.
- Measurement range
- 0–14 pH
- Operating temperature
- 0–100 °C
- Pressure range
- 0–3 bar, 6 bar max
- Temperature compensation
- PT1000 / NTC10K (optional)
- Factory slope
- >95%
- Zero point
- 7 ± 0.25 pH
- Response time
- <30 s
- Reference electrolyte
- GFT polymer gel
- Protection rating
- IP68
- Communication
- RS485, Modbus RTU
- Length
- 144 mm
- Housing material
- Confirm with final configured datasheet
03
Recommended process fit
Wastewater treatment
Digital pH measurement for automation-oriented projects.
Water-treatment equipment
Direct RS485 integration reduces separate transmitter requirements.
Surface water
Suitable for environmental water monitoring within the verified limits.
Industrial process monitoring
Use where digital communication and longer cable runs are required.
04
Items to confirm
To avoid selecting the wrong electrode, provide the real process conditions instead of only the pH range.
- 01Water matrix and main chemical components
- 02Continuous and peak temperature and pressure
- 03Mounting, insertion depth and cable length
- 04Temperature compensation, controller and communication interface
05
Project documents available on request
After receiving the process conditions, we prepare the current configured documents for the selected model. Unverified certificates or customer references are not presented as standard claims.
Get a quote- Configured technical datasheet→
- Installation and dimension confirmation→
- Cable, interface and accessory schedule→
- Project quotation→
06
Related models in this family
Economical industrial pH sensor
View product↗

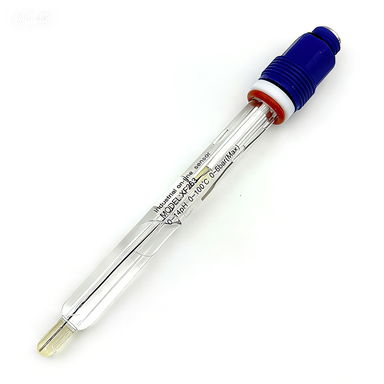

General-purpose industrial pH sensor
View product↗07
Model confirmation
Can I order directly from the values on this page?+
The page supports preliminary selection. Final housing, membrane, cable, dimensions, temperature compensation and controller interface must be confirmed before ordering.
What is needed for an accurate quotation?+
Send the water chemistry, temperature, pressure, mounting, cable, interface, quantity and destination so the complete configuration can be quoted.
