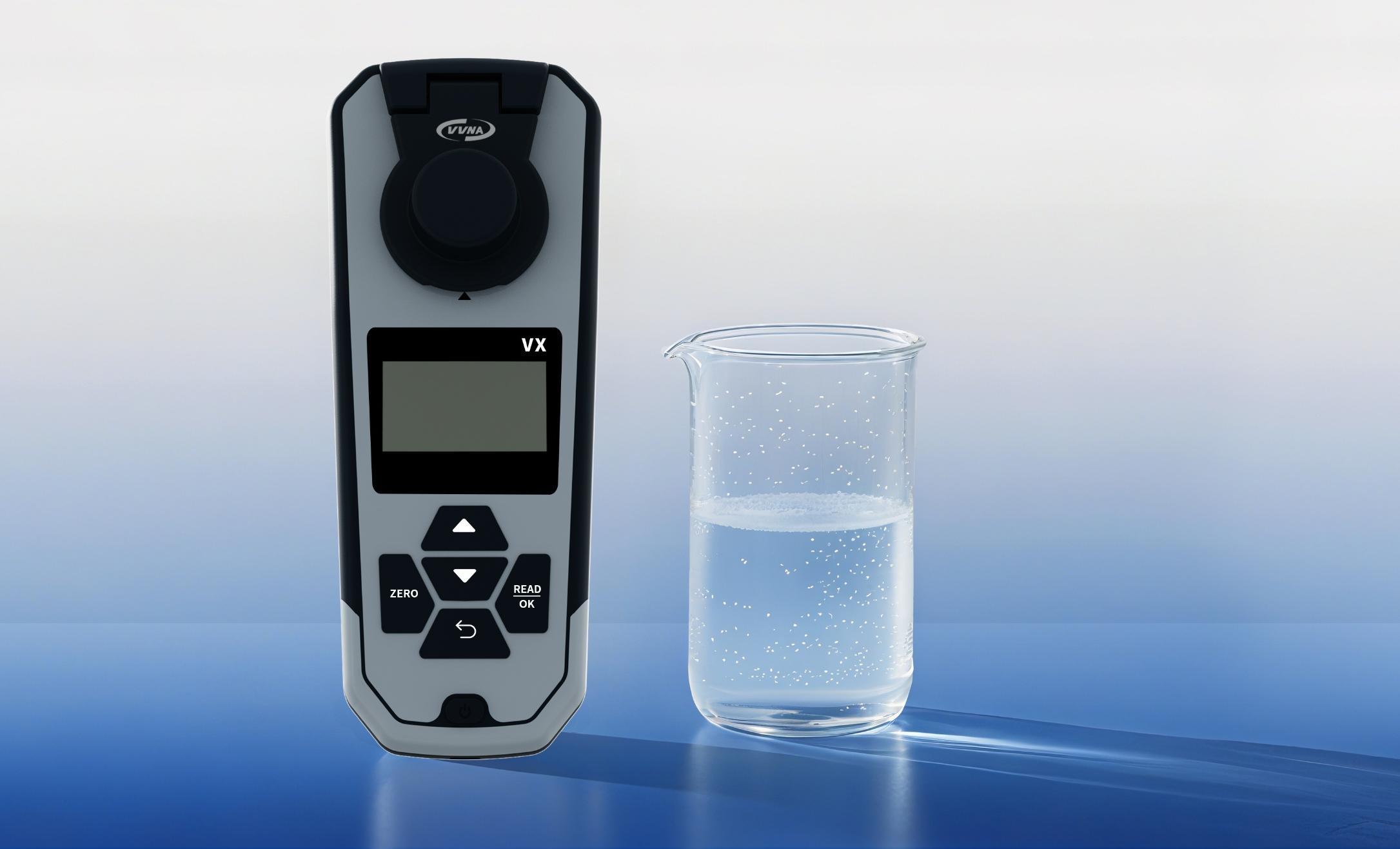

VX-FMA Iron, Manganese and Aluminum Analyzer
Laboratory and field instruments

VX-FMA Iron, Manganese and Aluminum Analyzer

VX-FMA groups iron, manganese and aluminum tests for portable water analysis. Its documented ranges are iron 0.10–3.00 mg/L, manganese 0.03–5.00 mg/L and aluminum 0.008–0.250 mg/L. Built-in optical programs require the corresponding reagents; the host stores readings and supports USB data handling.

CJ-VX-FMA0.10–3.00 mg/L0.03–5.00 mg/L
01

Product and supply highlights

01

CJ-VX-FMA

02

0.10–3.00 mg/L

03

0.03–5.00 mg/L

04

0.008–0.250 mg/L

05

One-year warranty

06

Normally in stock · 3-5 day lead time

02

Product technical specifications

Order code
CJ-VX-FMA
Iron
0.10–3.00 mg/L
Manganese
0.03–5.00 mg/L
Aluminum
0.008–0.250 mg/L
Optical system
LED and silicon photodiode; integrated scattering / transmission path
Reading modes
Concentration, absorbance and % transmittance
Programs
Built-in standard programs
Interface language
Chinese / English
Data interface
USB
Data storage
Historical records
Operating environment
0–50°C; ≤90% RH, non-condensing
Sample vials
25 mm / 16 mm
Housing
Injection-molded ABS
Power
2 × AA batteries or USB
Dimensions
210 × 84 × 76 mm
Standard configuration
Final configuration is confirmed during quotation.
Optional configuration
Final configuration is confirmed during quotation.
Consumables
Final configuration is confirmed during quotation.
03

Recommended applications

Source-water metal checks

Use for the matching water matrix, process-control or project-integration scenario; final range and installation are confirmed during quotation.

Treatment-process iron and manganese testing

Use for the matching water matrix, process-control or project-integration scenario; final range and installation are confirmed during quotation.

Laboratory aluminum sample analysis

Use for the matching water matrix, process-control or project-integration scenario; final range and installation are confirmed during quotation.

04

Confirm the final configuration before quotation

Confirm the target metal, reporting form and sample pretreatment with the selected reagent method. The instrument name does not imply measurement of every dissolved and total-metal form without preparation.

  1. 01Water matrix and application
  2. 02Required parameters and expected ranges
  3. 03Laboratory or field use
  4. 04Quantity, destination and delivery requirement
05

Technical and quotation documents

Confirm the model, water sample and required tests to request an English datasheet, configuration list and formal quotation. Reagents, vials and supporting equipment are confirmed in the quotation.
