VX-CL202 Free Chlorine and Chlorine Dioxide Analyzer
Laboratory and field instruments

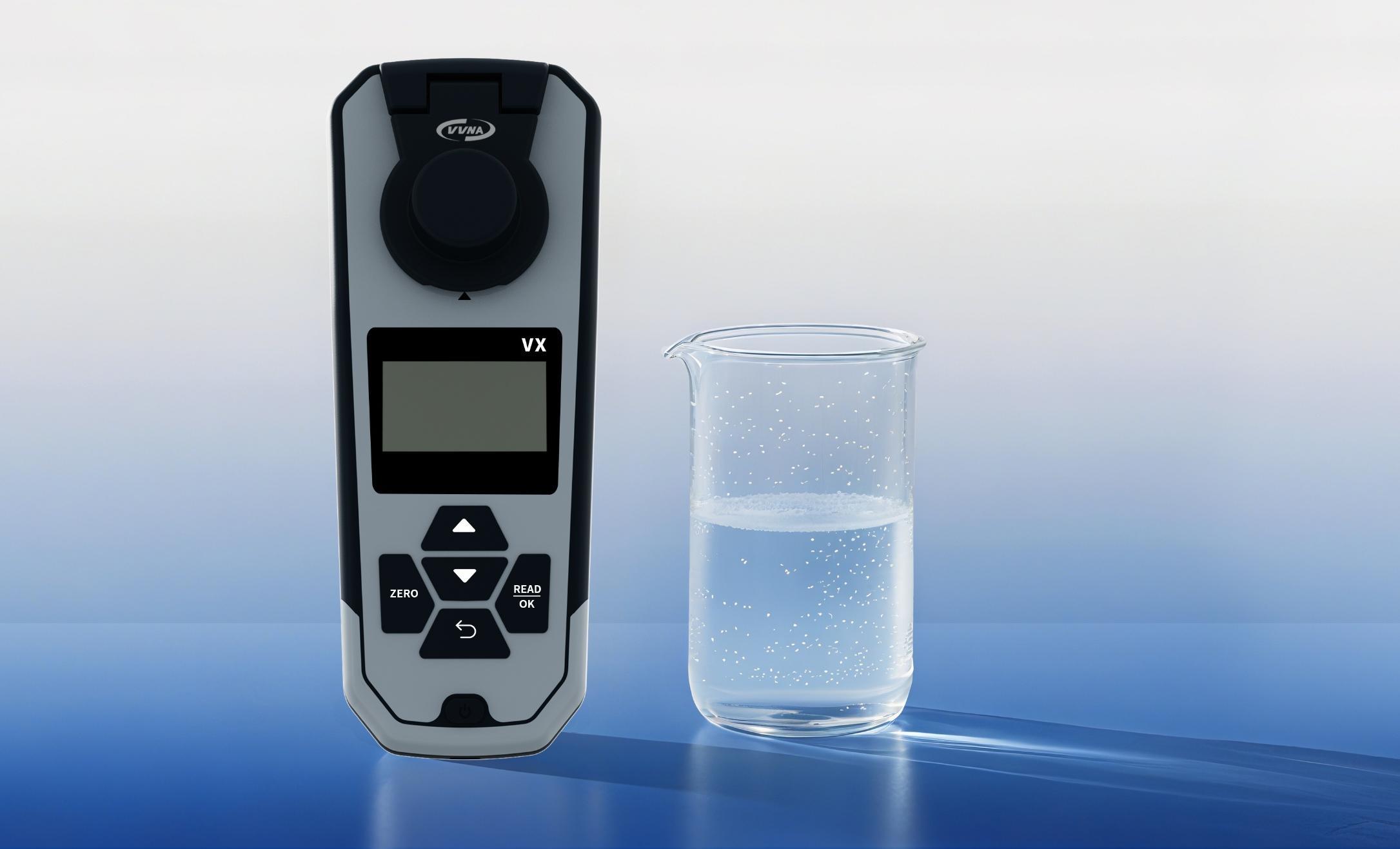

VX-CL202 Free Chlorine and Chlorine Dioxide Analyzer

VX-CL202 is a two-parameter optical analyzer for free chlorine at 0.01–5.00 mg/L and chlorine dioxide at 0.02–10.00 mg/L. It provides built-in programs with matched reagents, two-AA-battery or USB power, historical records and 25 mm or 16 mm sample-vial compatibility.

CJ-VX-CL2020.01–5.00 mg/L0.02–10.00 mg/L
01

Product and supply highlights

01

CJ-VX-CL202

02

0.01–5.00 mg/L

03

0.02–10.00 mg/L

04

LED and silicon photodiode; integrated scattering / transmission path

05

One-year warranty

06

Normally in stock · 3-5 day lead time

02

Product technical specifications

Order code
CJ-VX-CL202
Free chlorine
0.01–5.00 mg/L
Chlorine dioxide
0.02–10.00 mg/L
Optical system
LED and silicon photodiode; integrated scattering / transmission path
Reading modes
Concentration, absorbance and % transmittance
Programs
Built-in standard programs
Interface language
Chinese / English
Data interface
USB
Data storage
Historical records
Operating environment
0–50°C; ≤90% RH, non-condensing
Sample vials
25 mm / 16 mm
Housing
Injection-molded ABS
Power
2 × AA batteries or USB
Dimensions
210 × 84 × 76 mm
Standard configuration
Final configuration is confirmed during quotation.
Optional configuration
Final configuration is confirmed during quotation.
Consumables
Final configuration is confirmed during quotation.
03

Recommended applications

Free-chlorine residual checks

Use for the matching water matrix, process-control or project-integration scenario; final range and installation are confirmed during quotation.

Chlorine-dioxide water-treatment checks

Use for the matching water matrix, process-control or project-integration scenario; final range and installation are confirmed during quotation.

04

Confirm the final configuration before quotation

Choose this model for these two disinfectant programs. Compare VX-CL03 if chlorate is required, or VX-5CL if the project also needs ozone, total chlorine and combined chlorine.

  1. 01Water matrix and application
  2. 02Required parameters and expected ranges
  3. 03Laboratory or field use
  4. 04Quantity, destination and delivery requirement
05

Technical and quotation documents

Confirm the model, water sample and required tests to request an English datasheet, configuration list and formal quotation. Reagents, vials and supporting equipment are confirmed in the quotation.
