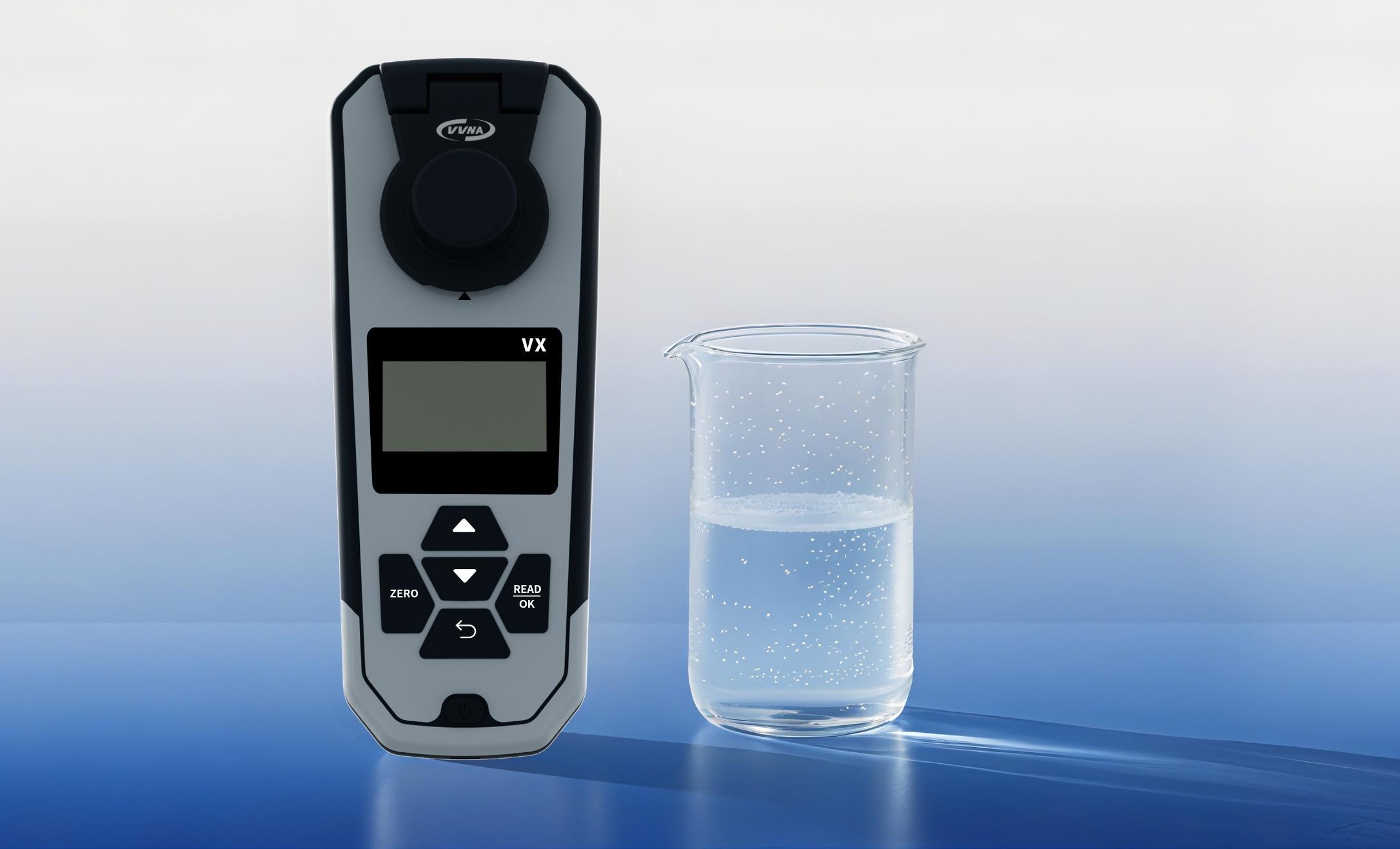

VX-CL200 Portable Free Chlorine, Total Chlorine and pH Analyzer
Model: VX-CL200
FUNEL VX-CL200 combines free chlorine, total chlorine and pH testing in one portable instrument for drinking water, pools, wastewater and disinfection control.
VX-CL200
FUNEL VX-CL200 combines free chlorine, total chlorine and pH testing in one portable instrument for drinking water, pools, wastewater and disinfection control.
Best for: Drinking water and water supply, Pool and spa water, Municipal wastewater.
Specifications
- Free chlorine range: 0.01-5.00 mg/L
- Total chlorine range: 0.01-5.00 mg/L
- pH range: 6.5-8.5
- Optical system: LED and silicon photodiode integrated optical path
- Reading modes: Concentration, absorbance and transmittance
- Programs: Built-in standard measurement programs
- Language: English and Chinese
- Data: USB interface with historical record storage
- Operating environment: 0-50 deg C, up to 90% RH, non-condensing
- Sample vials: 25 mm and 16 mm
- Power: 2 AA batteries or USB
- Dimensions: 210 x 84 x 76 mm
Applications
- Drinking water and water supply
- Pool and spa water
- Municipal wastewater
- Disinfection process checks
- Cooling water and process water
Benefits
- Portable field testing with a compact carrying configuration
- Guided operation for fast routine measurements
- Cold-light optical system for stable, repeatable readings
- Historical data storage and USB export
- Ready-to-use reagent support for applicable parameters
Frequently asked questions
What does the VX-CL200 measure?
VX-CL200 is configured for Free chlorine range: 0.01-5.00 mg/L; Total chlorine range: 0.01-5.00 mg/L; pH range: 6.5-8.5; Optical system: LED and silicon photodiode integrated optical path.
Where is the VX-CL200 used?
Typical applications include Drinking water and water supply, Pool and spa water, Municipal wastewater, Disinfection process checks.
How do I select or order the VX-CL200?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
