VX-5CL Portable Disinfectant Analyzer
Laboratory and field instruments

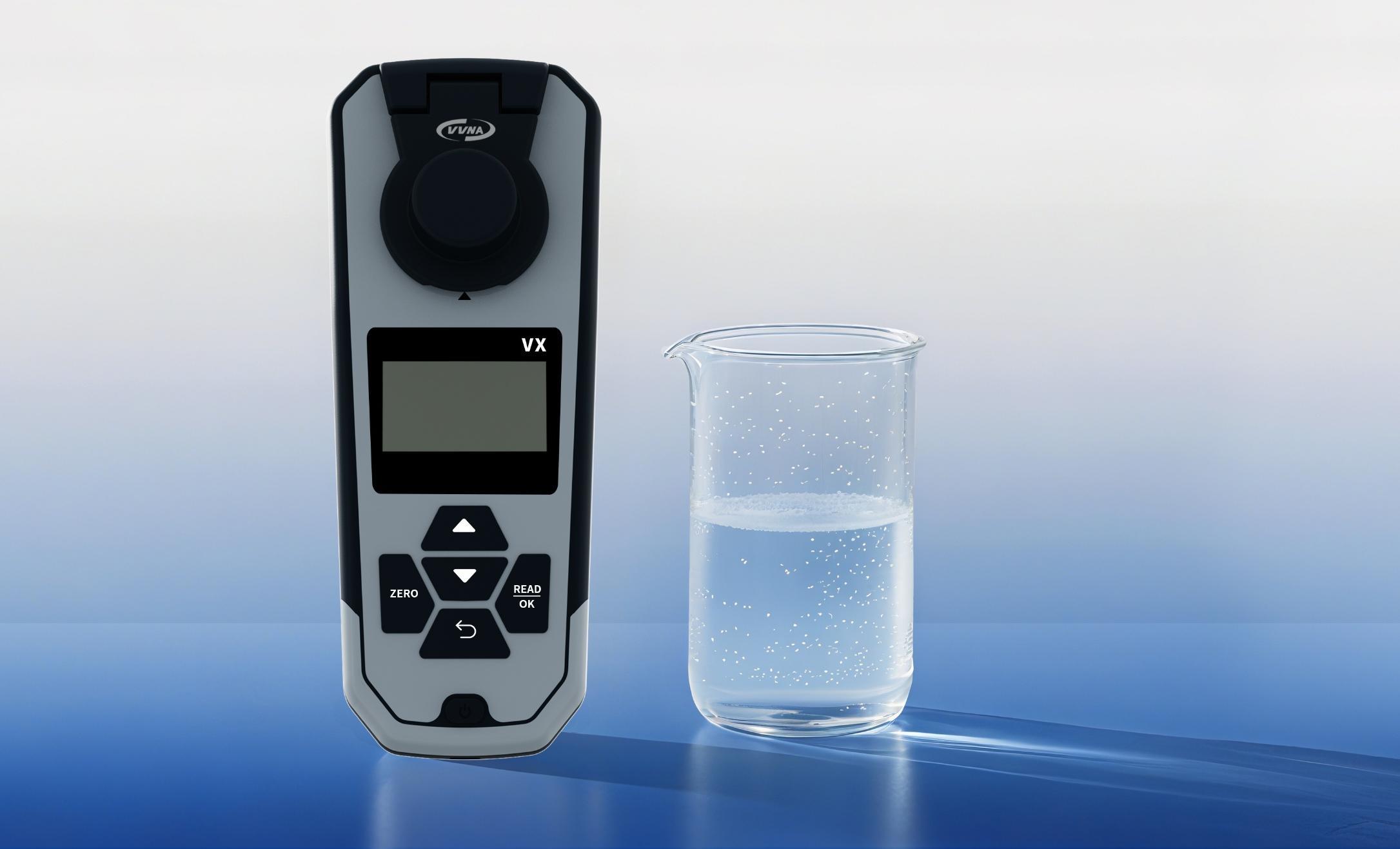

VX-5CL Portable Disinfectant Analyzer

VX-5CL covers five disinfectant measurements: free chlorine, total chlorine, combined chlorine, ozone and chlorine dioxide. The chlorine programs cover 0.01–5.00 mg/L, ozone 0.01–10.00 mg/L and chlorine dioxide 0.02–10.00 mg/L. Its shared portable host provides standard programs, historical records and USB connectivity.

CJ-VX-5CL0.01–5.00 mg/L0.01–5.00 mg/L
01

Product and supply highlights

01

CJ-VX-5CL

02

0.01–5.00 mg/L

03

0.01–5.00 mg/L

04

0.01–10.00 mg/L

05

One-year warranty

06

Normally in stock · 3-5 day lead time

02

Product technical specifications

Order code
CJ-VX-5CL
Free chlorine
0.01–5.00 mg/L
Total chlorine
0.01–5.00 mg/L
Ozone
0.01–10.00 mg/L
Combined chlorine
0.01–5.00 mg/L
Chlorine dioxide
0.02–10.00 mg/L
Optical system
LED and silicon photodiode; integrated scattering / transmission path
Reading modes
Concentration, absorbance and % transmittance
Programs
Built-in standard programs
Interface language
Chinese / English
Data interface
USB
Data storage
Historical records
Operating environment
0–50°C; ≤90% RH, non-condensing
Sample vials
25 mm / 16 mm
Housing
Injection-molded ABS
Power
2 × AA batteries or USB
Dimensions
210 × 84 × 76 mm
Standard configuration
Final configuration is confirmed during quotation.
Optional configuration
Final configuration is confirmed during quotation.
Consumables
Final configuration is confirmed during quotation.
03

Recommended applications

Water-supply disinfection checks

Use for the matching water matrix, process-control or project-integration scenario; final range and installation are confirmed during quotation.

Ozone and chlorine-dioxide treatment verification

Use for the matching water matrix, process-control or project-integration scenario; final range and installation are confirmed during quotation.

04

Confirm the final configuration before quotation

Choose by the actual disinfectants used at the site. These programs require their respective reagents; the instrument does not measure all five parameters simultaneously in one sample run.

  1. 01Water matrix and application
  2. 02Required parameters and expected ranges
  3. 03Laboratory or field use
  4. 04Quantity, destination and delivery requirement
05

Technical and quotation documents

Confirm the model, water sample and required tests to request an English datasheet, configuration list and formal quotation. Reagents, vials and supporting equipment are confirmed in the quotation.
