CJ-VX-3200
Laboratory and field instruments

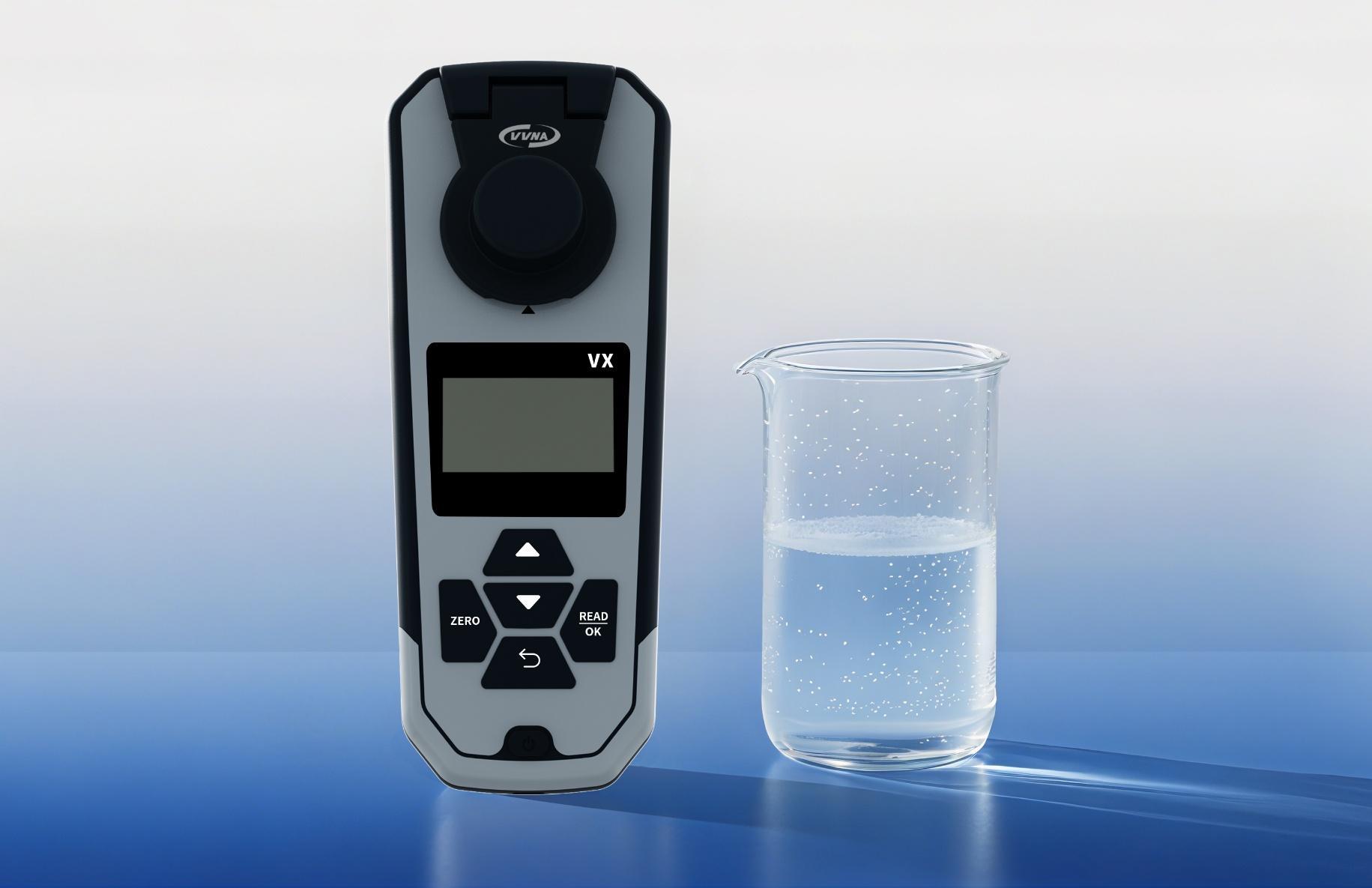

VX-3200 Portable Color and Turbidity Analyzer
A structured product page based on the current technical file. One-year warranty. Normal 3-5 day lead time from stock. Final measurement configuration is confirmed during quotation.
CJ-VX-32000–500 PCU0.00–250 NTU
01
Product and supply highlights
0–500 PCU
0.00–250 NTU
LED and silicon photodiode; integrated scattering / transmission path
One-year warranty
Normally in stock · 3-5 day lead time
02
Product technical specifications
- Order code
- CJ-VX-3200
- Color
- 0–500 PCU
- Turbidity
- 0.00–250 NTU
- Optical system
- LED and silicon photodiode; integrated scattering / transmission path
- Reading modes
- Concentration, absorbance and % transmittance
- Programs
- Built-in standard programs
- Interface language
- Chinese / English
- Data interface
- USB
- Data storage
- Historical records
- Operating environment
- 0–50°C; ≤90% RH, non-condensing
- Sample vials
- 25 mm / 16 mm
- Housing
- Injection-molded ABS
- Power
- 2 × AA batteries or USB
- Dimensions
- 210 × 84 × 76 mm
- Standard configuration
- Final configuration is confirmed during quotation.
- Optional configuration
- Final configuration is confirmed during quotation.
- Consumables
- Final configuration is confirmed during quotation.
03
Recommended applications
Drinking and treated water
Use in water plants, supply systems, treatment processes and routine laboratories.
Routine laboratory analysis
Measure samples using the verified parameters, ranges and built-in programs.
Field verification
Carry the instrument to project sites, sampling points and treatment facilities.
Project commissioning
Support startup, maintenance, troubleshooting and online-instrument checks.
04
Confirm the final configuration before quotation
The order code is CJ-VX-3200. Unlisted standard items, options and consumables use “Final configuration is confirmed during quotation.”
- 01Water matrix and application
- 02Required parameters and expected ranges
- 03Laboratory or field use
- 04Quantity, destination and delivery requirement
05
Technical and quotation documents
The values on this page are structured from the current supplied technical file. After the model and measurement configuration are confirmed, a neutral datasheet, configuration confirmation and quotation can be prepared.
Share your project requirement- Verified parameter table on this page→
- Measurement configuration confirmation→
- Warranty and lead-time confirmation→
- Formal project quotation→
