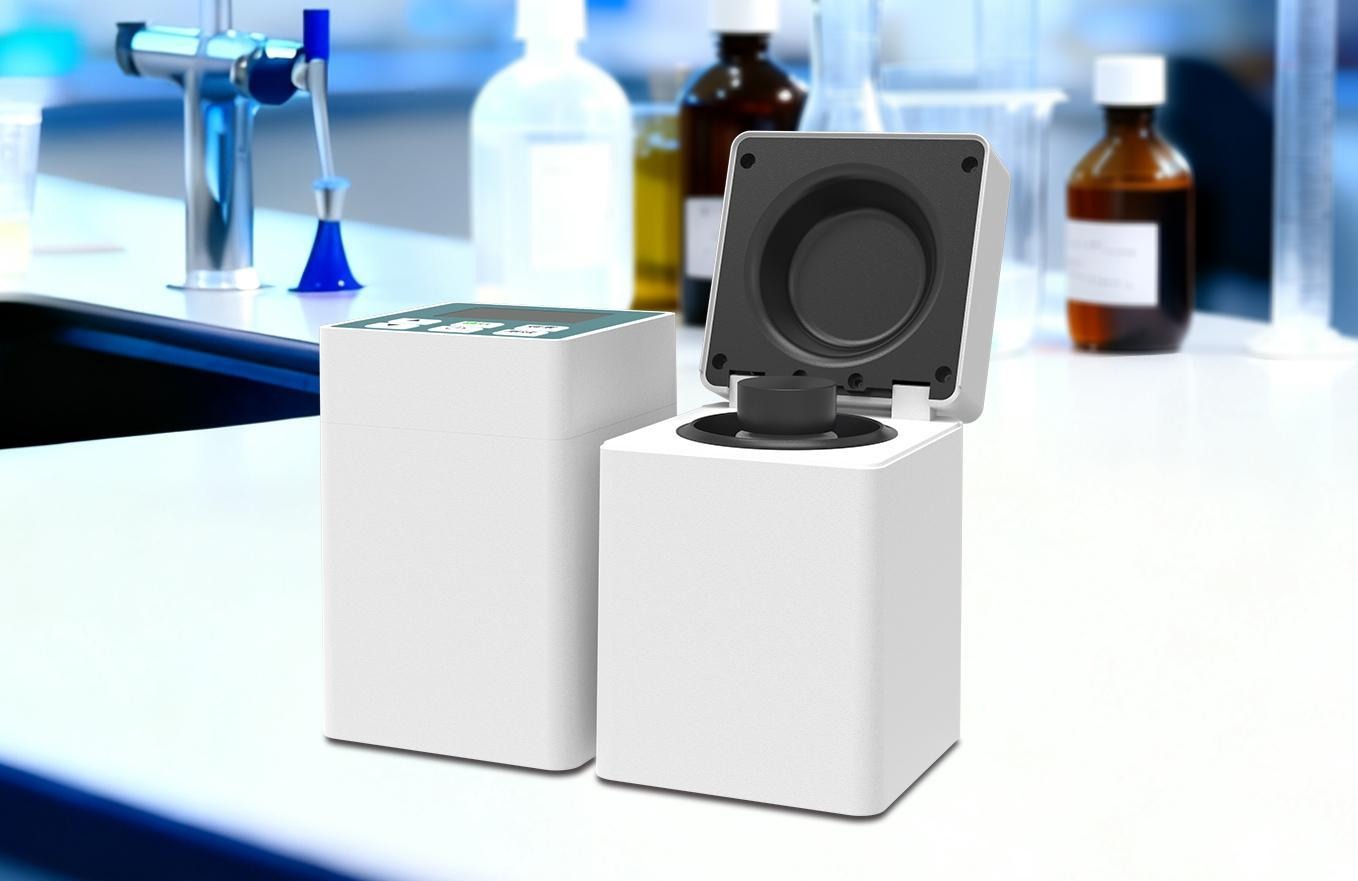

VI3200 Portable Color and Turbidity Analyzer
Model: VI3200
A portable dual-parameter analyzer for water color and turbidity, combining platinum-cobalt colorimetry with 90-degree scattering and transmission optics for field and laboratory testing.
VI3200
A portable dual-parameter analyzer for water color and turbidity, combining platinum-cobalt colorimetry with 90-degree scattering and transmission optics for field and laboratory testing.
Best for: Drinking water color and turbidity checks, Water treatment filtration monitoring, Surface water and groundwater surveys.
Specifications
- Parameters: Color and turbidity
- Color range: 0-500 degree using platinum-cobalt colorimetry
- Turbidity range: 0.00-250 NTU
- Turbidity method: 90-degree scattering with integrated transmission optics
- Optical system: LED-silicon photodiode
- Programs: Built-in standard turbidity method
- Calibration: User calibration supported
- Turbidity testing: Reagent-free
- Optical chamber: Low-stray-light design for low-turbidity samples
- Display language: English and Chinese
- Data interface: USB Type-C
- Data storage: Historical result records
- Operating conditions: 0-50 C and up to 90% RH without condensation
- Instrument size: 70 x 70 x 103 mm
- Power: Two AA batteries
Applications
- Drinking water color and turbidity checks
- Water treatment filtration monitoring
- Surface water and groundwater surveys
- Municipal wastewater inspection
- Industrial process-water testing
- Pharmaceutical water quality checks
- Environmental and public-health field programs
Benefits
- Measures color and turbidity in one portable instrument
- Integrated scattering and transmission optics cover varied water samples
- Platinum-cobalt method supports stable color measurement
- Reagent-free turbidity testing reduces consumable use
- User calibration supports site and method verification
- Compact battery operation suits mobile inspection
- Historical records and USB export support traceability
Frequently asked questions
What does the VI3200 measure?
VI3200 is configured for Parameters: Color and turbidity; Color range: 0-500 degree using platinum-cobalt colorimetry; Turbidity range: 0.00-250 NTU; Turbidity method: 90-degree scattering with integrated transmission optics.
Where is the VI3200 used?
Typical applications include Drinking water color and turbidity checks, Water treatment filtration monitoring, Surface water and groundwater surveys, Municipal wastewater inspection.
How do I select or order the VI3200?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
