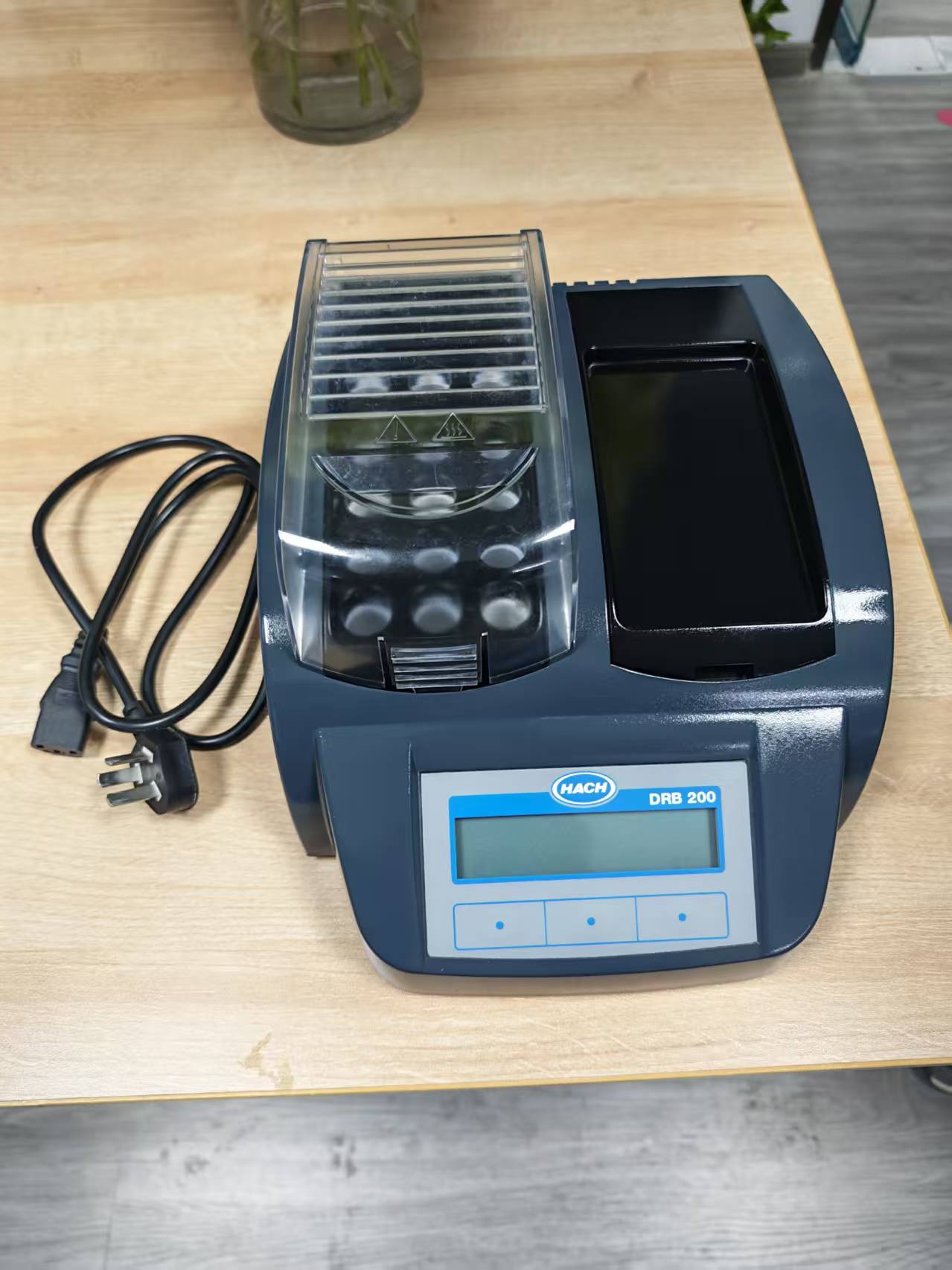

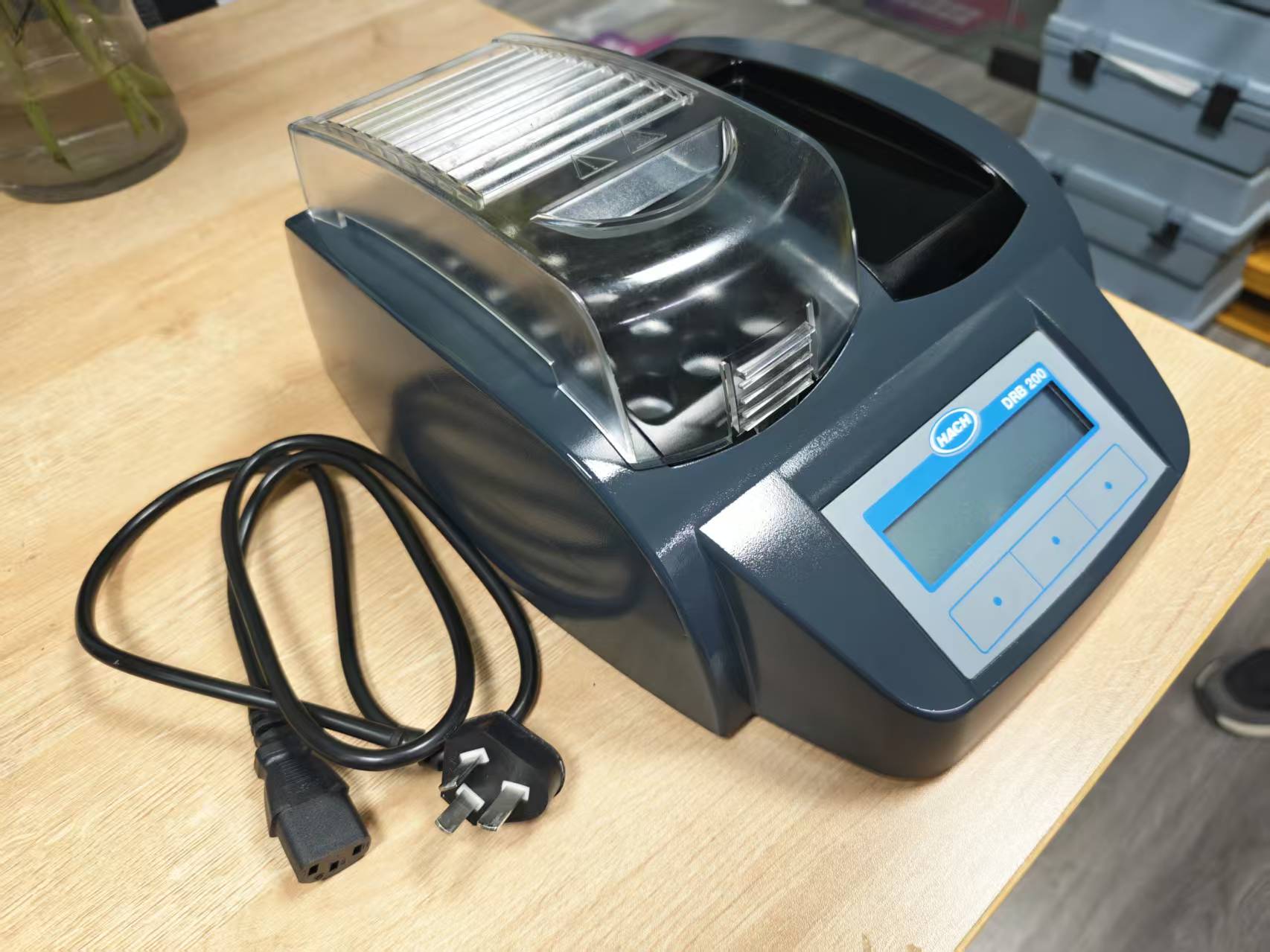

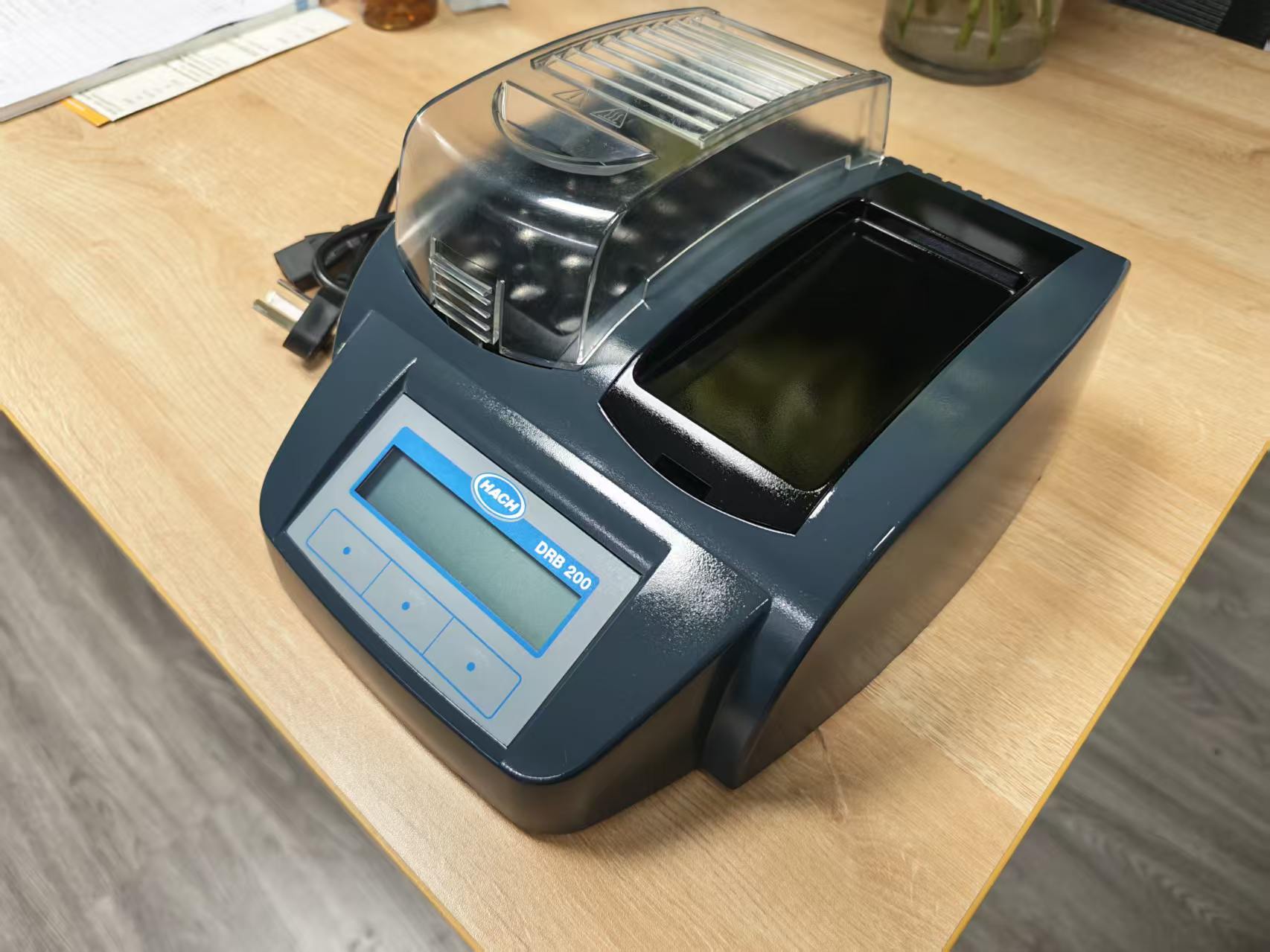

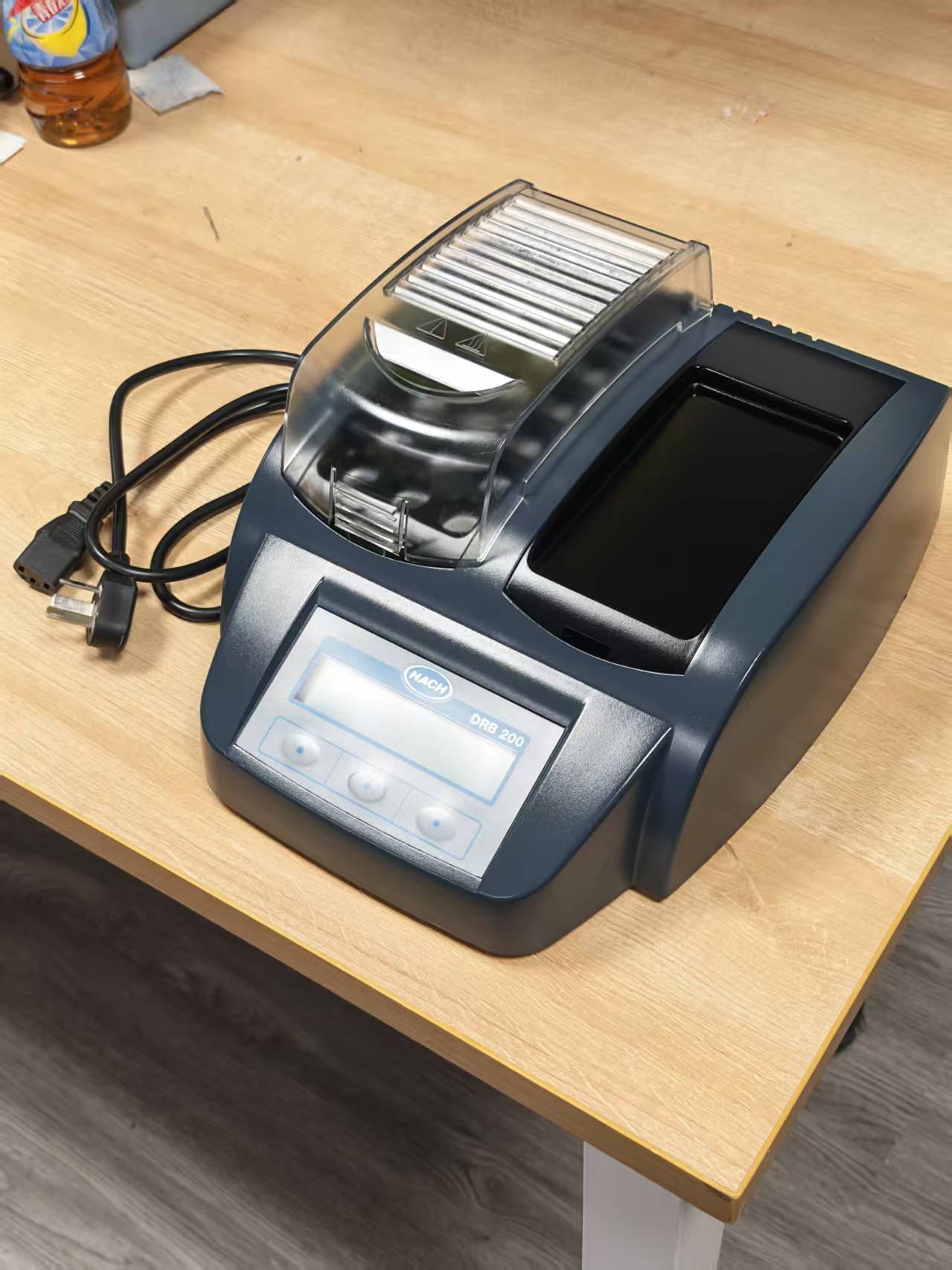

Used HACH DRB200 Digital Reactor

Name: Used HACH DRB200 Digital Reactor
Brand: HACH

Used HACH DRB200 dry thermostat reactor for controlled sample digestion before colorimetric analysis. Actual equipment photos and video are available; confirm the current unit, block, voltage, accessories, checks and quotation.

Used equipmentActual photos & videoConfirm voltage & block

Request current unit & quotation Specifications

HACH is the equipment brand. FUNEL is the seller and supply contact for this used unit. This listing does not represent manufacturer-authorized refurbishment or a manufacturer warranty.

Confirm the specific used unit

Condition & availability

Confirm the selected unit, cosmetic condition, heating and display checks, known issues, dispatch time and after-sales terms with the quotation.

Block, voltage & accessories

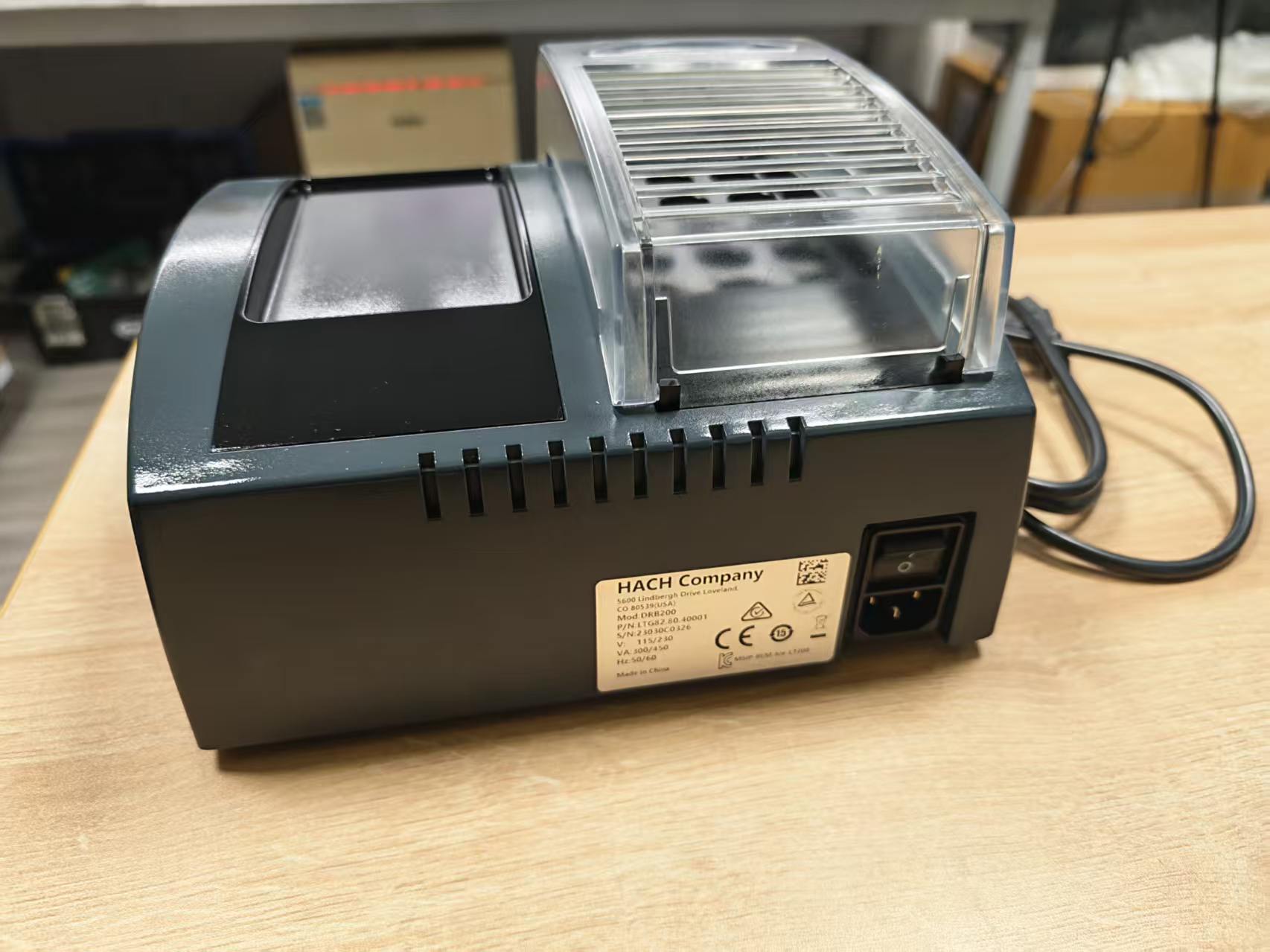

DRB200 has several block and voltage variants. The photographed unit label shows LTV082.53.40001, 115 V and 15 × 16 mm wells. Confirm the actual block, power cord and included accessories before ordering.

Safety & verification

The reactor operates at high temperature. Request unit-specific temperature checks and use method-compatible tubes and safety procedures. Photos and video are not a calibration certificate.

Manufacturer reference specifications

Source: supplied HACH DRB200 technical data sheet, page 42. These are model-family references, not a test report for the pictured used unit.

Condition: Used; unit-specific condition confirmed before order
Temperature range: 37–165 °C
Operating environment: 10–45 °C
Programmable timer: 0–480 minutes
Heating reference: 20 to 150 °C in 10 minutes
Temperature stability: ±2 °C
Preprogrammed applications: COD 150 °C / 120 min; TOC 105 °C / 120 min; metals 100 °C / 60 min; TN & TP 100 °C / 60 min or 130 °C / 30 min
Model-family power reference: 100–240 VAC, 50/60 Hz, 600 VA
Dimensions: 145 × 250 × 310 mm
Weight: Single block: 2.0 kg; dual block: 2.8 kg
Shown unit label: LTV082.53.40001; 115 V; 15 × 16 mm wells

How DRB200 fits the water-testing workflow

DRB200 controls digestion temperature and time before analysis. It does not measure the final concentration. Pair it with the correct digestion tubes and reagents, then read the prepared sample on a compatible colorimeter or spectrophotometer such as DR900 or DR6000 when the selected method supports that instrument.

Send the analyte, method or reagent code, digestion temperature, tube size, mains voltage, quantity and destination so FUNEL can check the correct configuration.
