Selectable measurement ranges: 0.01–20,000; 0.01–45,000; or 0.01–120,000 mg/L
FUNEL portable water analysis platform
PMI800-SS Portable Suspended Solids / Sludge Analyzer
FUNEL PMI800 combines one portable host with one parameter-specific sensor. The host automatically recognizes the sensor type and supports field readings, setup, calibration, data logging and USB export.
Selectable measurement ranges: 0.01–20,000; 0.01–45,000; or 0.01–120,000 mg/LAccuracy: ±5% of reading, dependent on sludge homogeneityResolution: 0.01–1 mg/L, depending on range
01
Portable host and parameter sensor
Accuracy: ±5% of reading, dependent on sludge homogeneity
Resolution: 0.01–1 mg/L, depending on range
Automatic sensor recognition with host-based setup and calibration
More than 100,000 stored records with USB export
IP67 handheld host; verified sensor protection, material and dimensions are listed below
02
Product technical specifications
- Selectable measurement ranges
- 0.01–20,000; 0.01–45,000; or 0.01–120,000 mg/L
- Accuracy
- ±5% of reading, dependent on sludge homogeneity
- Resolution
- 0.01–1 mg/L, depending on range
- Calibration
- Sample and slope calibration

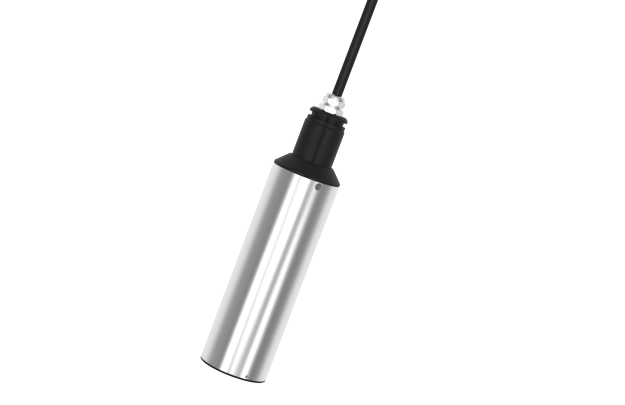

- Sensor construction
- SUS316L fresh-water body; POM cover; PUR cable
- Sensor protection
- IP68 / NEMA 6P
- Sensor size and weight
- Ø60 × 254 mm; 1.65 kg
- Cable
- 3 m standard; extendable
- Display
- 3.5-inch color display with adjustable backlight
- Power supply
- 4 × 3.7 V rechargeable lithium batteries
- Data storage
- >100,000 records
- Data export
- USB
- Host material
- ABS + PC
- Host protection
- IP67
- Operating temperature
- 0–50°C, non-freezing
- Storage temperature
- −15 to 60°C
- Host size and weight
- 203 × 100 × 43 mm; 0.5 kg
03
Recommended portable measurement tasks
Activated-sludge monitoring
Use for rapid measurements, logged readings and result verification in the real water and field conditions.
Wastewater treatment
Use for rapid measurements, logged readings and result verification in the real water and field conditions.
Industrial wastewater
Use for rapid measurements, logged readings and result verification in the real water and field conditions.
Surface-water surveys
Use for rapid measurements, logged readings and result verification in the real water and field conditions.
04
Confirm the water and sensor before selection
The PMI800 host platform is shared, while the sensor, range, calibration and suitable water differ by model. Standard accessories and order codes are not invented; the complete supply configuration is confirmed during quotation.
- 01Confirm the target parameter and normal/peak range
- 02Confirm the water matrix, turbidity, sludge homogeneity or algae distribution
- 03Confirm field measurement, laboratory verification or online-instrument comparison
- 04Confirm cable, quantity, destination and delivery requirement
05
Technical and quotation documents
The page values are structured from the supplied PMI800 technical files. After confirming the model and use conditions, we can prepare a neutral English datasheet, configuration confirmation and quotation.
Share your project requirement- Neutral English technical datasheet→
- Sensor and host configuration confirmation→
- Calibration and field-use guidance→
- Project quotation→
Contact FUNEL
Tell us what you need to measure.
We will respond with a recommended configuration, supporting documentation and quotation.
