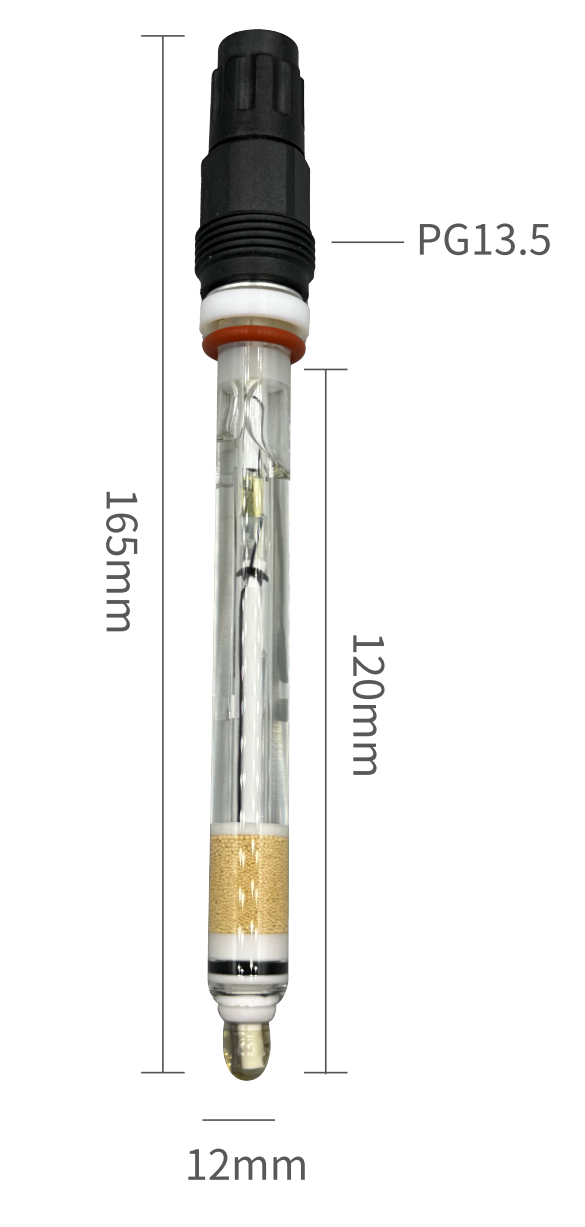

XF260E industrial pH sensor
PTFE or PEEK liquid-junction options were selected for corrosion resistance in the acidic, contaminated medium.
Verified customer project · Argentina
Online pH monitoring for acidic food-processing wastewater
The customer needed stable continuous pH measurement in acidic wastewater containing lemon oil, suspended solids and organic impurities. FUNEL configured an acid-resistant, anti-fouling measurement system and supported commissioning remotely.
The customer name is withheld. Project details and installation evidence are published with identifying information removed.
Original project record↓pH 2–3Process wastewater
XF260EIndustrial pH sensor
PH5000pH transmitter
Repeat ordersExpanded demand
01
The measurement challenge
Conventional glass sensors were prone to contamination and frequent maintenance in the customer’s acidic, high-fouling process.
- Acidic lemon-processing wastewater, typically pH 2–3
- Lemon oil, suspended solids and organic impurities
- High risk of sensor contamination and fouling
- Complex installation environment requiring stable continuous monitoring
02
Process position
- 01Lemon washing
- 02Cleaning water / emulsion
- 03Wastewater collection
- 04Online pH monitoring
- 05Follow-up treatment
03
Configured FUNEL solution
The measurement point was configured around the real medium, installation and integration requirements rather than the pH range alone.
PH5000 pH transmitter
Large LCD display for continuous local indication and project operation.
PTFE installation bracket
A chemically resistant mounting arrangement for reliable installation and maintenance access.
PT1000 temperature compensation
Temperature compensation was included for more accurate online measurement.
04
Remote commissioning solved a real wiring fault
The initial PT1000 connection produced an abnormal 83.9°C reading. FUNEL reviewed the wiring remotely, guided the terminal correction and helped return the temperature and pH display to normal operation.
- 01Review abnormal reading
- 02Check terminal wiring
- 03Guide corrected connection
- 04Confirm normal measurement
05
Project results
- Stable continuous pH monitoring in acidic, high-fouling wastewater
- Contamination-related maintenance was reduced with the selected sensor and installation
- Remote technical support resolved the commissioning issue and minimized downtime
- Customer satisfaction led to repeat orders and expanded project demand
06
Expanded delivery shown in the project record
These quantities describe the expanded delivery illustrated in the supplied case record; they are not presented as the customer’s cumulative lifetime purchases.
4 pcsXF260E pH sensors
3 pcsPH5000 transmitters
4 setsPTFE installation brackets
760 mSensor cable
07

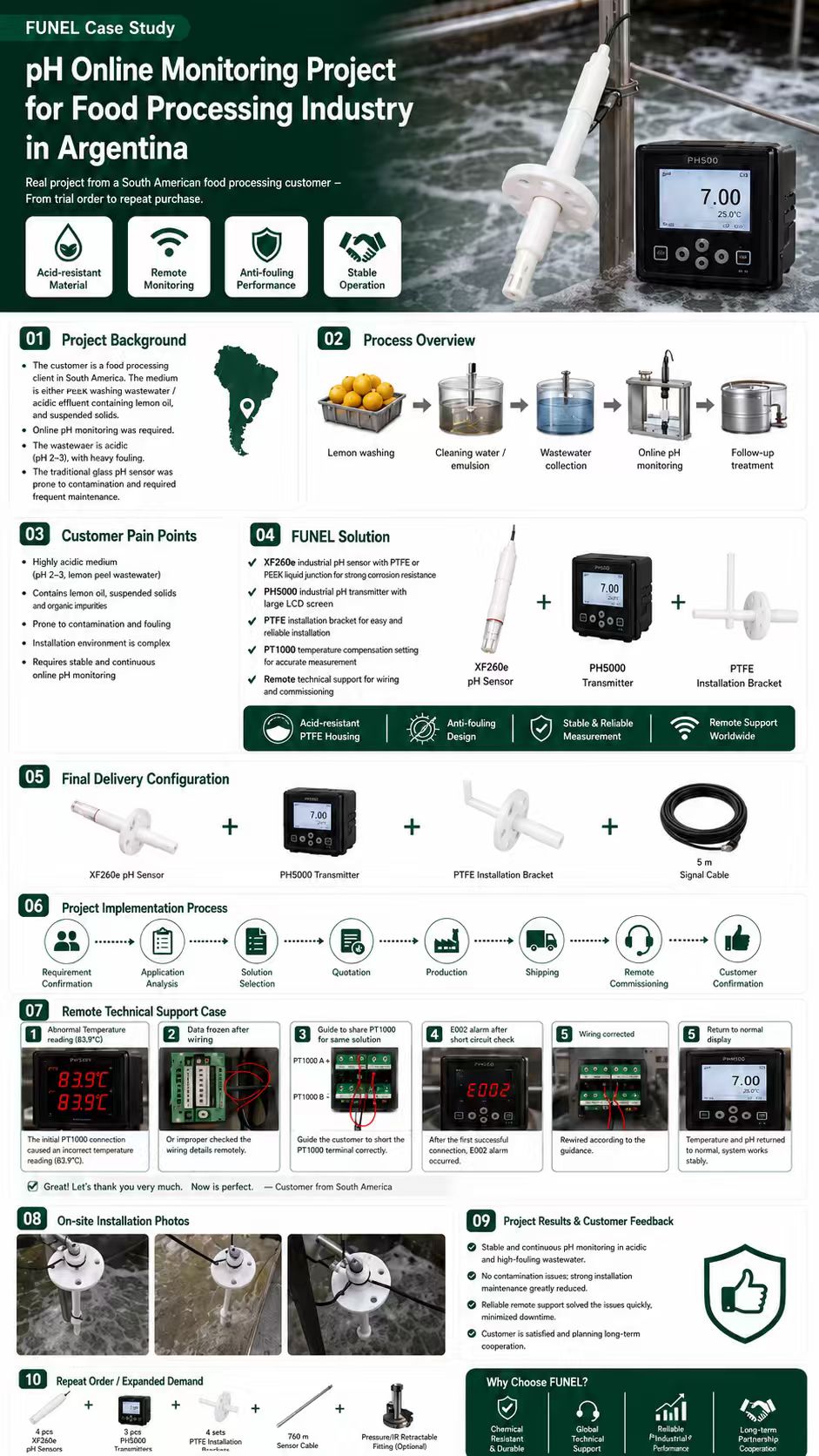

Original project record ↗Original project record
The supplied case-study sheet includes the process overview, configuration, remote support sequence, on-site installation photos and repeat-order evidence. Open the image at full size to review the complete record.
08
Related pH sensor
Review the verified XF260E product data, then send the real chemistry, temperature, pressure and installation conditions for final project confirmation.
