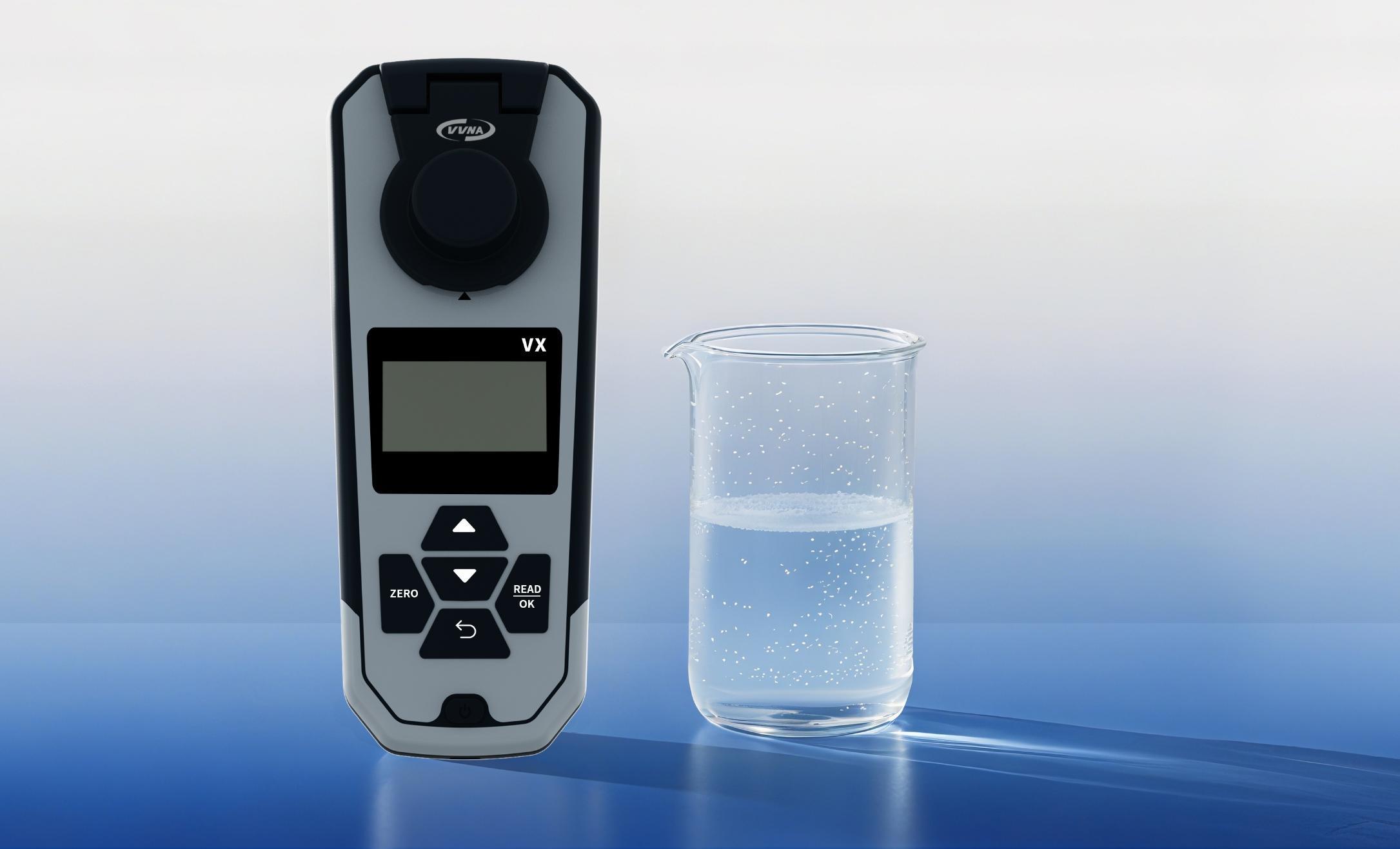

VX Series Portable Water Quality Analyzer Platform
Model: VX Series
The FUNEL VX Series is a configurable portable photometric water quality platform with built-in programs for chlorine, nutrients, metals, color, turbidity and other field parameters.
VX Series
The FUNEL VX Series is a configurable portable photometric water quality platform with built-in programs for chlorine, nutrients, metals, color, turbidity and other field parameters.
Best for: Drinking water and waterworks, Municipal and industrial wastewater, Environmental field monitoring.
Specifications
- Measurement principle: Photometric analysis
- Optical system: LED and silicon photodiode integrated optical path
- Reading modes: Concentration, absorbance and transmittance
- Programs: Built-in standard programs with model-specific parameter sets
- Data interface: USB Type-C
- Data storage: Historical records
- Sample vials: 25 mm and 16 mm
- Housing: Molded ABS
- Dimensions: 210 x 84 x 76 mm
- Power: 2 AA batteries
- Optical system: LED and silicon photodiode integrated optical path
- Reading modes: Concentration, absorbance and transmittance
- Programs: Built-in standard measurement programs
- Language: English and Chinese
- Data: USB interface with historical record storage
- Operating environment: 0-50 deg C, up to 90% RH, non-condensing
- Sample vials: 25 mm and 16 mm
- Power: 2 AA batteries or USB
- Dimensions: 210 x 84 x 76 mm
Applications
- Drinking water and waterworks
- Municipal and industrial wastewater
- Environmental field monitoring
- Boiler and cooling water
- Agriculture and aquaculture
- Education and mobile laboratories
Benefits
- Select a model by required parameter and range
- Compact platform for repeatable field testing
- English and Chinese interface
- Historical data storage and USB export
- Project and reagent configuration support from FUNEL
Frequently asked questions
What does the VX Series measure?
VX Series is configured for Measurement principle: Photometric analysis; Optical system: LED and silicon photodiode integrated optical path; Reading modes: Concentration, absorbance and transmittance; Programs: Built-in standard programs with model-specific parameter sets.
Where is the VX Series used?
Typical applications include Drinking water and waterworks, Municipal and industrial wastewater, Environmental field monitoring, Boiler and cooling water.
How do I select or order the VX Series?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
