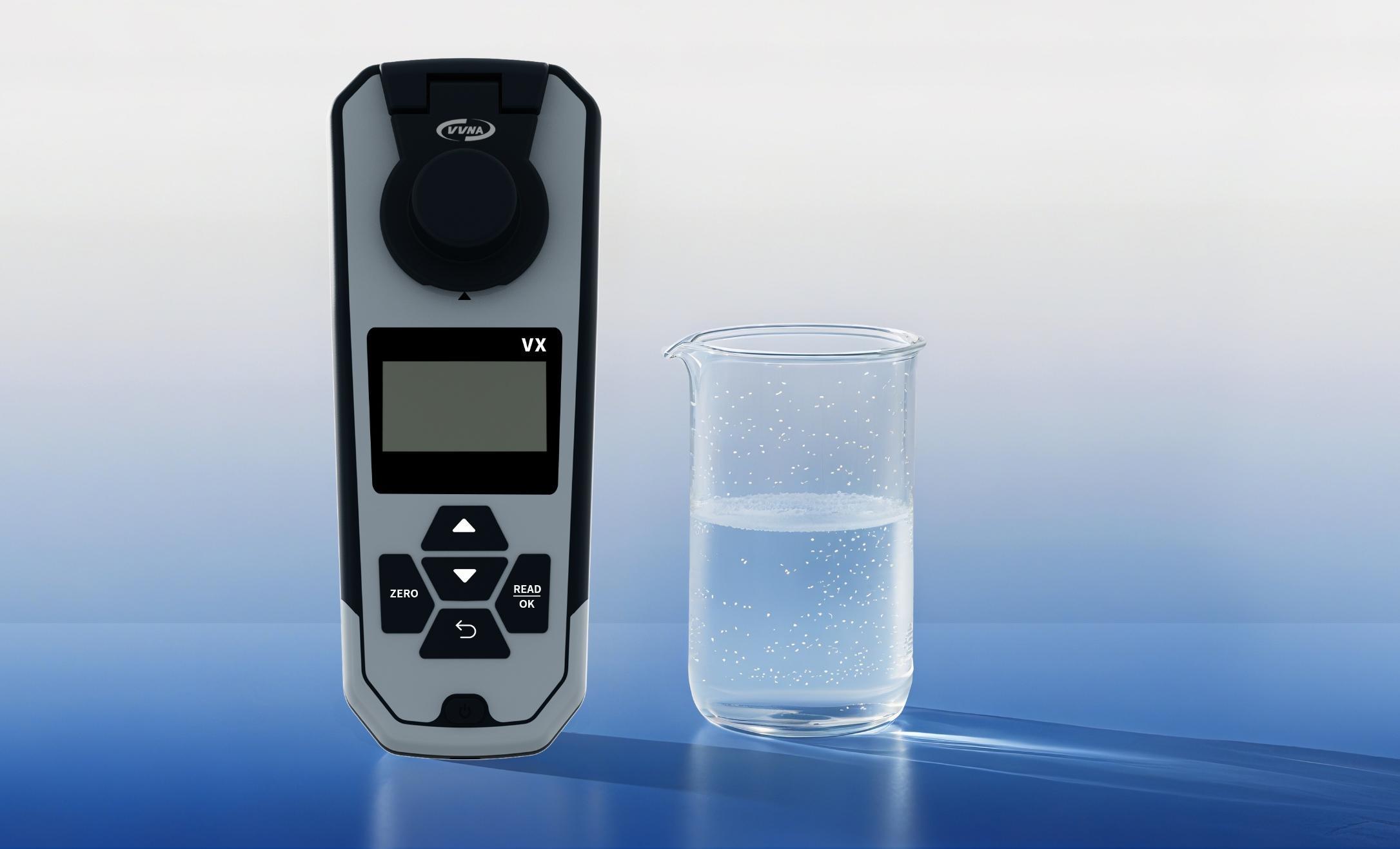

VX-AQ Portable Aquaculture Water Quality Analyzer
Model: VX-AQ
FUNEL VX-AQ is a portable aquaculture water quality analyzer for pond, hatchery and recirculating aquaculture checks including pH, hardness, alkalinity, ammonia, nitrite, turbidity and dissolved oxygen.
VX-AQ
FUNEL VX-AQ is a portable aquaculture water quality analyzer for pond, hatchery and recirculating aquaculture checks including pH, hardness, alkalinity, ammonia, nitrite, turbidity and dissolved oxygen.
Best for: Fish and shrimp ponds, Aquaculture hatcheries, Recirculating aquaculture systems.
Specifications
- Low-range turbidity: 0.00-250 NTU
- pH range: 6.5-8.5
- Total hardness: 5-400 mg/L
- Total alkalinity: 10-200 mg/L
- Ammonia nitrogen: 0.01-2.00 mg/L
- Nitrite: 0.003-0.500 mg/L
- Dissolved oxygen: 0.2-15.0 mg/L
- Sulfide: 0.02-1.00 mg/L
- Fluoride: 0.1-2.0 mg/L
- Optical system: LED and silicon photodiode integrated optical path
- Reading modes: Concentration, absorbance and transmittance
- Programs: Built-in standard measurement programs
- Language: English and Chinese
- Data: USB interface with historical record storage
- Operating environment: 0-50 deg C, up to 90% RH, non-condensing
- Sample vials: 25 mm and 16 mm
- Power: 2 AA batteries or USB
- Dimensions: 210 x 84 x 76 mm
Applications
- Fish and shrimp ponds
- Aquaculture hatcheries
- Recirculating aquaculture systems
- Pond water management
- Field water quality surveys
Benefits
- Portable field testing with a compact carrying configuration
- Guided operation for fast routine measurements
- Cold-light optical system for stable, repeatable readings
- Historical data storage and USB export
- Ready-to-use reagent support for applicable parameters
Frequently asked questions
What does the VX-AQ measure?
VX-AQ is configured for Low-range turbidity: 0.00-250 NTU; pH range: 6.5-8.5; Total hardness: 5-400 mg/L; Total alkalinity: 10-200 mg/L.
Where is the VX-AQ used?
Typical applications include Fish and shrimp ponds, Aquaculture hatcheries, Recirculating aquaculture systems, Pond water management.
How do I select or order the VX-AQ?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
