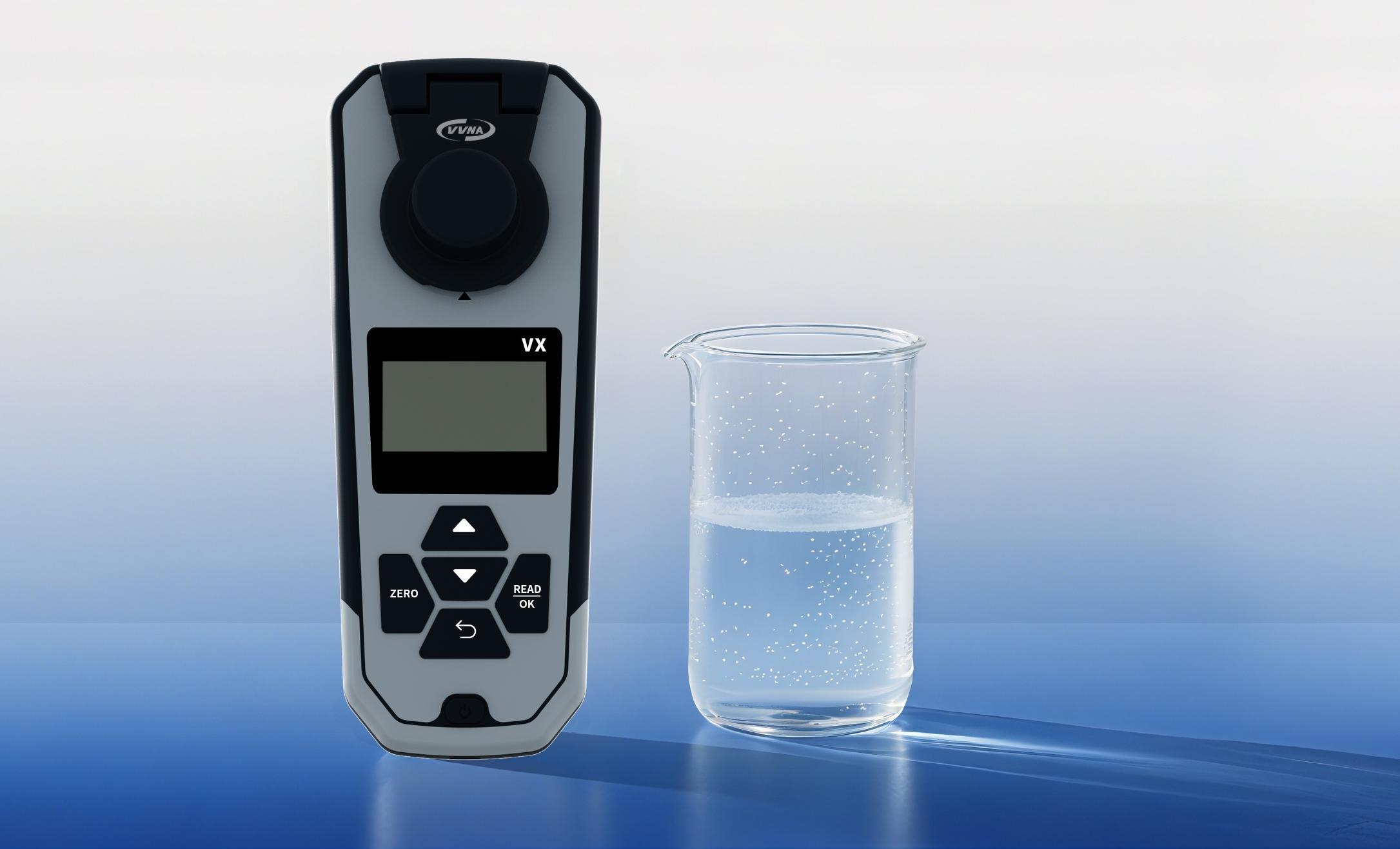

VX-3100 Portable Turbidity Meter
Model: VX-3100
FUNEL VX-3100 is a portable turbidity meter using 90-degree scattering and ratio detection for field measurement of drinking water, wastewater, surface water and process water.
VX-3100
FUNEL VX-3100 is a portable turbidity meter using 90-degree scattering and ratio detection for field measurement of drinking water, wastewater, surface water and process water.
Best for: Drinking water and waterworks, Municipal and industrial wastewater, Surface water and groundwater.
Specifications
- Measurement parameter: Turbidity
- Turbidity range: 0-1000 NTU
- Accuracy: +/-2% of reading plus stray light
- Stray light: Less than 0.02 NTU
- Measurement method: 90-degree scattering with ratio detection
- Sample vial: 25 mm
- User calibration: Supported
- Custom curves: Supported
- Optical system: LED and silicon photodiode integrated optical path
- Reading modes: Concentration, absorbance and transmittance
- Programs: Built-in standard measurement programs
- Language: English and Chinese
- Data: USB interface with historical record storage
- Operating environment: 0-50 deg C, up to 90% RH, non-condensing
- Sample vials: 25 mm and 16 mm
- Power: 2 AA batteries or USB
- Dimensions: 210 x 84 x 76 mm
Applications
- Drinking water and waterworks
- Municipal and industrial wastewater
- Surface water and groundwater
- Environmental monitoring
- Pharmaceutical and process water
- Education and field laboratories
Benefits
- Reagent-free turbidity measurement
- Low stray-light design for low-turbidity samples
- User calibration and custom curve support
- Portable field configuration
- USB data export
Frequently asked questions
What does the VX-3100 measure?
VX-3100 is configured for Measurement parameter: Turbidity; Turbidity range: 0-1000 NTU; Accuracy: +/-2% of reading plus stray light; Stray light: Less than 0.02 NTU.
Where is the VX-3100 used?
Typical applications include Drinking water and waterworks, Municipal and industrial wastewater, Surface water and groundwater, Environmental monitoring.
How do I select or order the VX-3100?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
