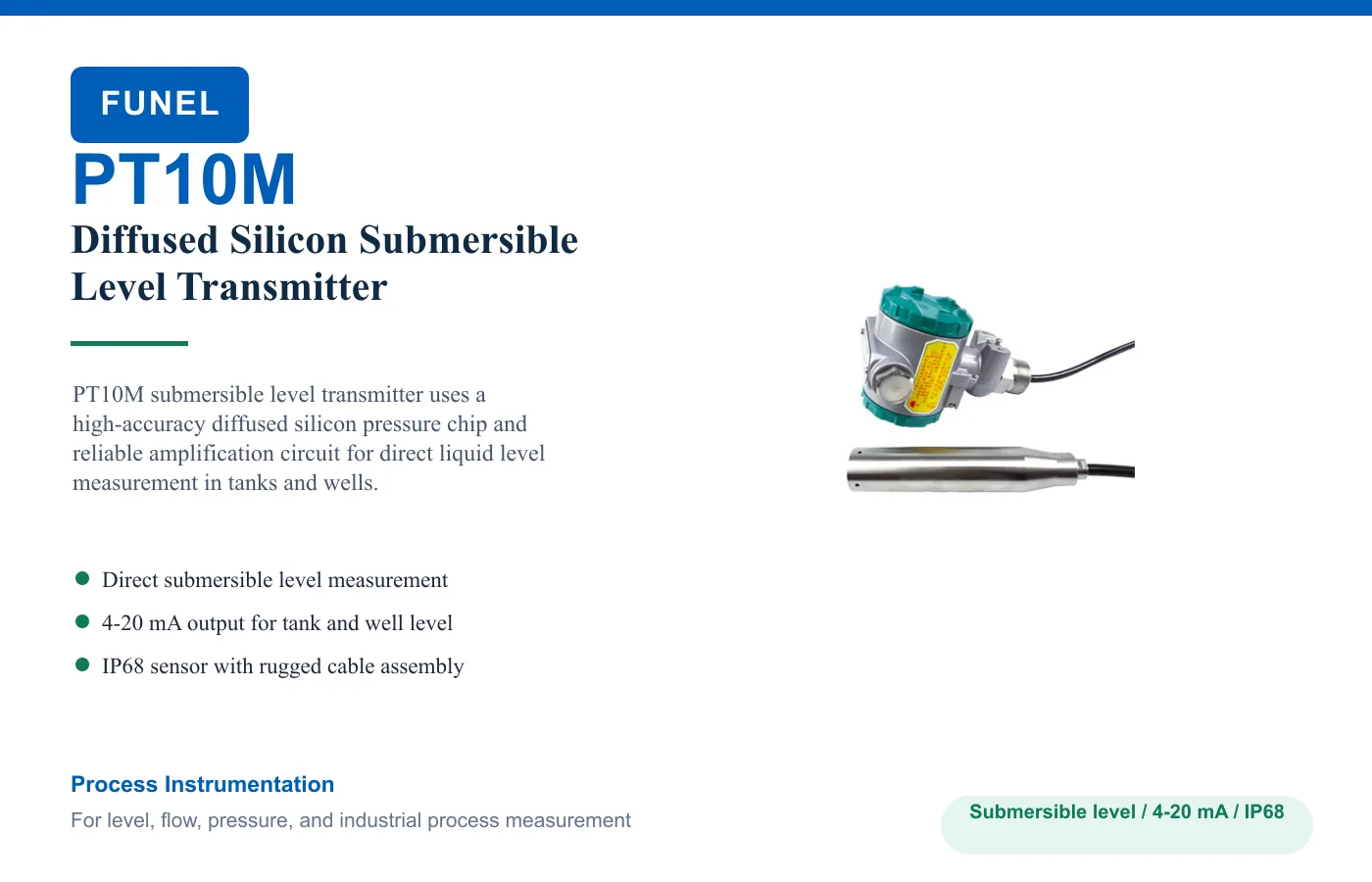

PT10M Diffused Silicon Submersible Level Transmitter
Model: PT10M
PT10M submersible level transmitter uses a high-accuracy diffused silicon pressure chip and reliable amplification circuit for direct liquid level measurement in tanks and wells.
PT10M
PT10M submersible level transmitter uses a high-accuracy diffused silicon pressure chip and reliable amplification circuit for direct liquid level measurement in tanks and wells.
Best for: Water tank, reservoir, well, sump, and process liquid level measurement, Submersible level monitoring in water treatment and industrial liquid applications, Projects requiring IP68 sensor protection and 4-20 mA liquid level output.
Specifications
- Measurement range: 0-1 m to 0-200 m, see selection table
- Accuracy: ±0.5%
- Stability: ±0.25% FS / 3 years
- Operating temperature: -20 to 60°C
- Storage temperature: -40 to 80°C
- Output: 4-20 mADC
- Power supply: 12-36 VDC
- Protection: Sensor: IP68; transmitter: IP65
Applications
- Water tank, reservoir, well, sump, and process liquid level measurement
- Submersible level monitoring in water treatment and industrial liquid applications
- Projects requiring IP68 sensor protection and 4-20 mA liquid level output
- Water treatment applications
- Wastewater treatment applications
- Process automation applications
- Tank level monitoring applications
- Pipeline flow measurement applications
- Chemical process applications
- Municipal water applications
- Industrial instrumentation applications
Benefits
- Direct submersible measurement for liquid level applications
- Integrated and split structures are available
- Rugged cable assembly with anti-surge and anti-interference design
- Reverse-polarity protection and current limiting protection
- Compact structure with convenient installation and high reliability
Frequently asked questions
What does the PT10M measure?
PT10M is configured for Measurement range: 0-1 m to 0-200 m, see selection table; Accuracy: ±0.5%; Stability: ±0.25% FS / 3 years; Operating temperature: -20 to 60°C.
Where is the PT10M used?
Typical applications include Water tank, reservoir, well, sump, and process liquid level measurement, Submersible level monitoring in water treatment and industrial liquid applications, Projects requiring IP68 sensor protection and 4-20 mA liquid level output, Water treatment applications.
How do I select or order the PT10M?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
