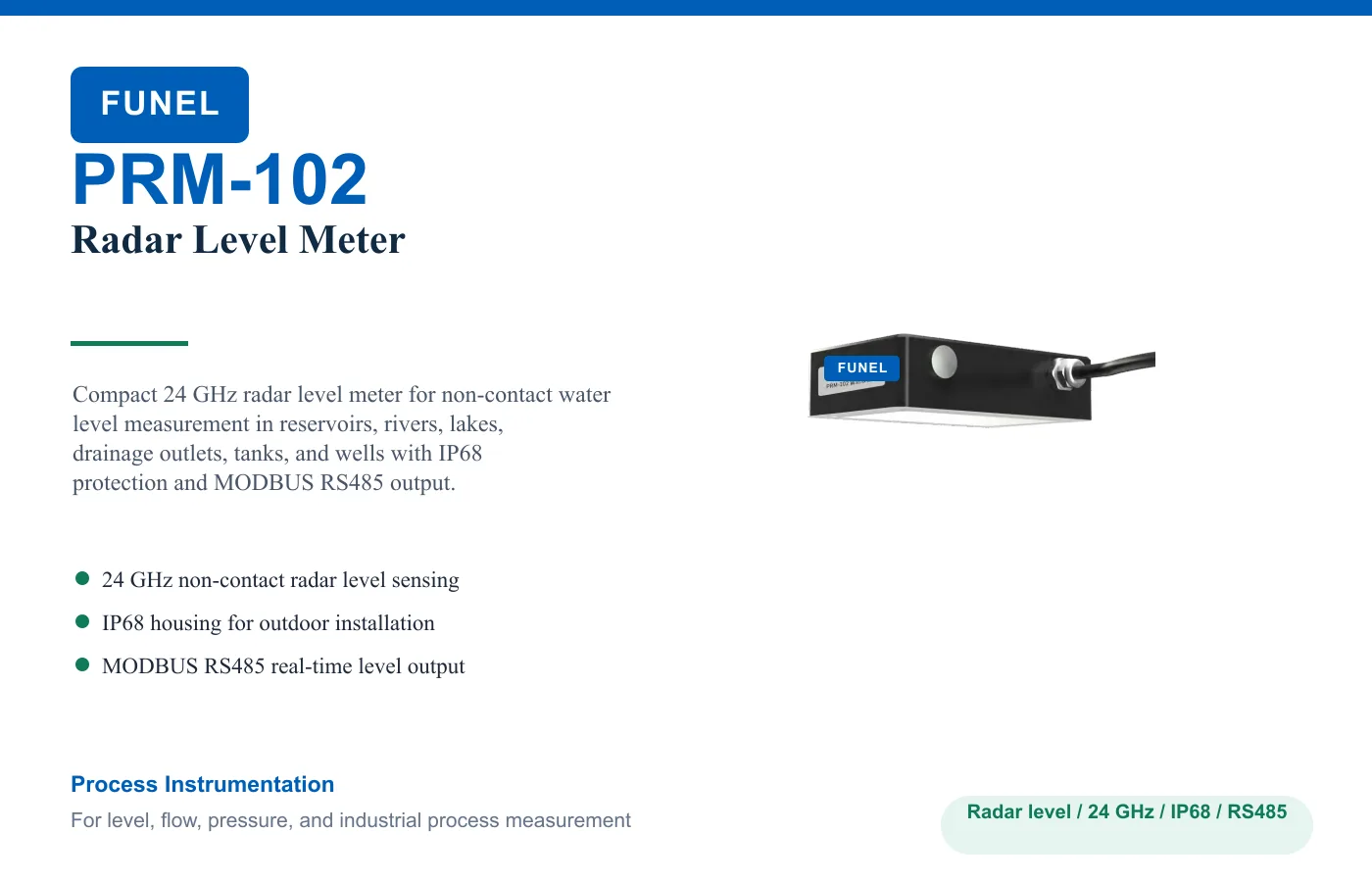

PRM-102 Radar Level Meter
Model: PRM-102
Compact 24 GHz radar level meter for non-contact water level measurement in reservoirs, rivers, lakes, drainage outlets, tanks, and wells with IP68 protection and MODBUS RS485 output.
PRM-102
Compact 24 GHz radar level meter for non-contact water level measurement in reservoirs, rivers, lakes, drainage outlets, tanks, and wells with IP68 protection and MODBUS RS485 output.
Best for: Reservoir, river, lake, canal, and open water level measurement, Tank, drainage outlet, well, and enclosed water level monitoring, Remote water level monitoring points requiring compact non-contact sensors.
Specifications
- Measurement range: 0.45-20 m, 0.45-40 m
- Accuracy: ±0.25% or ±10 mm, whichever is greater
- Resolution: 1 mm
- Measurement interval: 0-3000 s, minimum interval 30 s
- Communication: Standard MODBUS RS485, real-time measurement transmission
- Transmit frequency: 24 GHz
- Data format: 9600,n,8,1
- Transmit power: 10-20 dBm
- Operating voltage: 10-28 VDC; operating current ≤240 mA
- Operating temperature: -15 to 65°C
- Protection: IP68
- Size: 151 x 93 x 40 mm
Applications
- Reservoir, river, lake, canal, and open water level measurement
- Tank, drainage outlet, well, and enclosed water level monitoring
- Remote water level monitoring points requiring compact non-contact sensors
- Water treatment applications
- Wastewater treatment applications
- Process automation applications
- Tank level monitoring applications
- Pipeline flow measurement applications
- Chemical process applications
- Municipal water applications
- Industrial instrumentation applications
Benefits
- 24 GHz radar pulse measurement is not affected by water vapor, temperature, and pressure fluctuations
- Compact non-contact design supports easy installation in narrow spaces
- IP68 waterproof construction for outdoor and harsh installation environments
- Standard MODBUS RS485 output enables real-time level transmission
- Low transmit power and strong anti-interference performance improve measurement reliability
- Suitable for water level monitoring where ultrasonic sensors may be affected by environment
Frequently asked questions
What does the PRM-102 measure?
PRM-102 is configured for Measurement range: 0.45-20 m, 0.45-40 m; Accuracy: ±0.25% or ±10 mm, whichever is greater; Resolution: 1 mm; Measurement interval: 0-3000 s, minimum interval 30 s.
Where is the PRM-102 used?
Typical applications include Reservoir, river, lake, canal, and open water level measurement, Tank, drainage outlet, well, and enclosed water level monitoring, Remote water level monitoring points requiring compact non-contact sensors, Water treatment applications.
How do I select or order the PRM-102?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
