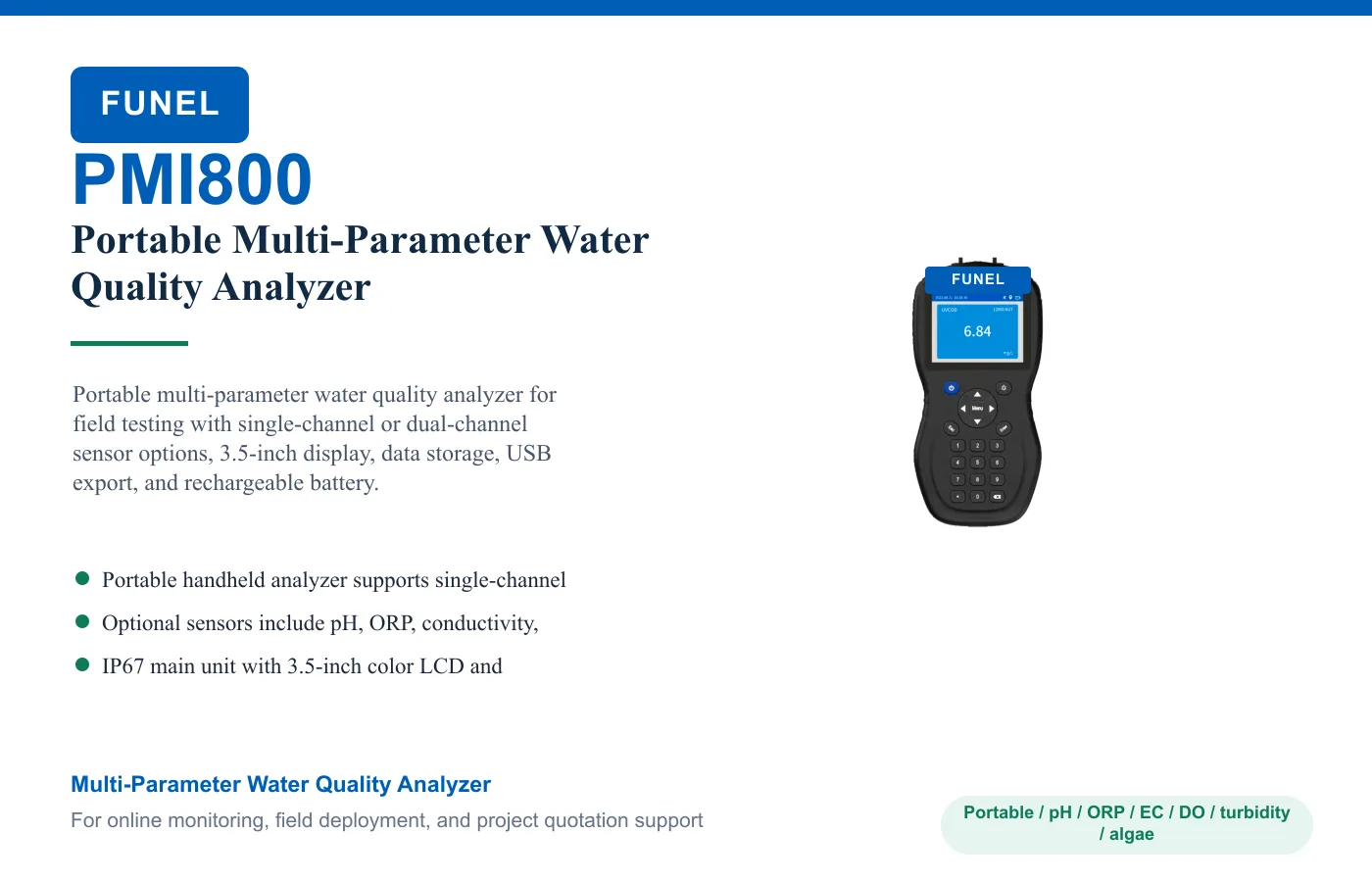

PMI800 Portable Multi-Parameter Water Quality Analyzer
Model: PMI800
Portable multi-parameter water quality analyzer for field testing with single-channel or dual-channel sensor options, 3.5-inch display, data storage, USB export, and rechargeable battery.
PMI800
Portable multi-parameter water quality analyzer for field testing with single-channel or dual-channel sensor options, 3.5-inch display, data storage, USB export, and rechargeable battery.
Best for: Portable testing for surface water, drinking water source, aquaculture, wastewater, process water, and environmental inspections, Field teams requiring quick multi-parameter water quality checks and data export, Laboratory or site inspection workflows that need interchangeable portable electrodes.
Specifications
- Channel options: Single-channel or dual-channel portable analyzer
- Display: 3.5-inch color LCD with adjustable backlight
- Data storage: More than 100000 records
- Material: ABS + PC
- Power supply: Built-in rechargeable battery, 4 x 3.7 V lithium battery
- Protection: IP67, immersion 0.5 m for 1 hour without water ingress
- Operating temperature: 0-50°C, non-freezing
- Storage temperature: -15 to 60°C
- Size: 203 x 100 x 43 mm
- Weight: 0.5 kg
- Temperature: Thermistor method, 0-60°C, 0.01°C resolution, accuracy ±0.5°C
- pH: Glass electrode, 0-14 pH, 0.01 pH resolution, accuracy ±0.1 pH
- ORP: Glass electrode, -2000 mV to +2000 mV, 1 mV resolution, accuracy ±2 mV
- Conductivity: Electrochemical method, 0-20000 µS/cm (K=1), optional salinity and TDS conversion
- Dissolved oxygen: Fluorescence method, 0-20 mg/L, 0-20 ppm, or 0-200% saturation
- Turbidity: Optical method, 0.1-1000 NTU, 0.01-0.1 NTU resolution
- Suspended solids: Optical method, 0.01-20000 mg/L, 0.01-45000 mg/L, or 0.01-120000 mg/L
- Chlorophyll: Fluorescence method, 0-500 µg/L, linearity R2 > 0.999
- Blue-green algae: Fluorescence method, 0-300000 cells/mL, 20 cells/mL resolution, linearity R2 > 0.999
Applications
- Portable testing for surface water, drinking water source, aquaculture, wastewater, process water, and environmental inspections
- Field teams requiring quick multi-parameter water quality checks and data export
- Laboratory or site inspection workflows that need interchangeable portable electrodes
- Surface water applications
- Drinking water source applications
- Aquaculture applications
- Wastewater treatment applications
- Industrial process water applications
- Environmental monitoring applications
- Seawater monitoring applications
- Field inspection applications
Benefits
- Portable handheld analyzer supports single-channel or dual-channel measurement
- Optional sensors include pH, ORP, conductivity, TDS, salinity, dissolved oxygen, turbidity, suspended solids, chlorophyll, blue-green algae, oil in water, COD, and ammonia
- IP67 main unit with 3.5-inch color LCD and ergonomic rubberized handheld design
- Automatic sensor recognition and adaptive menu display simplify field operation
- Built-in rechargeable battery and USB data export support on-site testing workflows
- Stores up to 100000 data records for traceable measurement and reporting
Frequently asked questions
What does the PMI800 measure?
PMI800 is configured for Channel options: Single-channel or dual-channel portable analyzer; Display: 3.5-inch color LCD with adjustable backlight; Data storage: More than 100000 records; Material: ABS + PC.
Where is the PMI800 used?
Typical applications include Portable testing for surface water, drinking water source, aquaculture, wastewater, process water, and environmental inspections, Field teams requiring quick multi-parameter water quality checks and data export, Laboratory or site inspection workflows that need interchangeable portable electrodes, Surface water applications.
How do I select or order the PMI800?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
