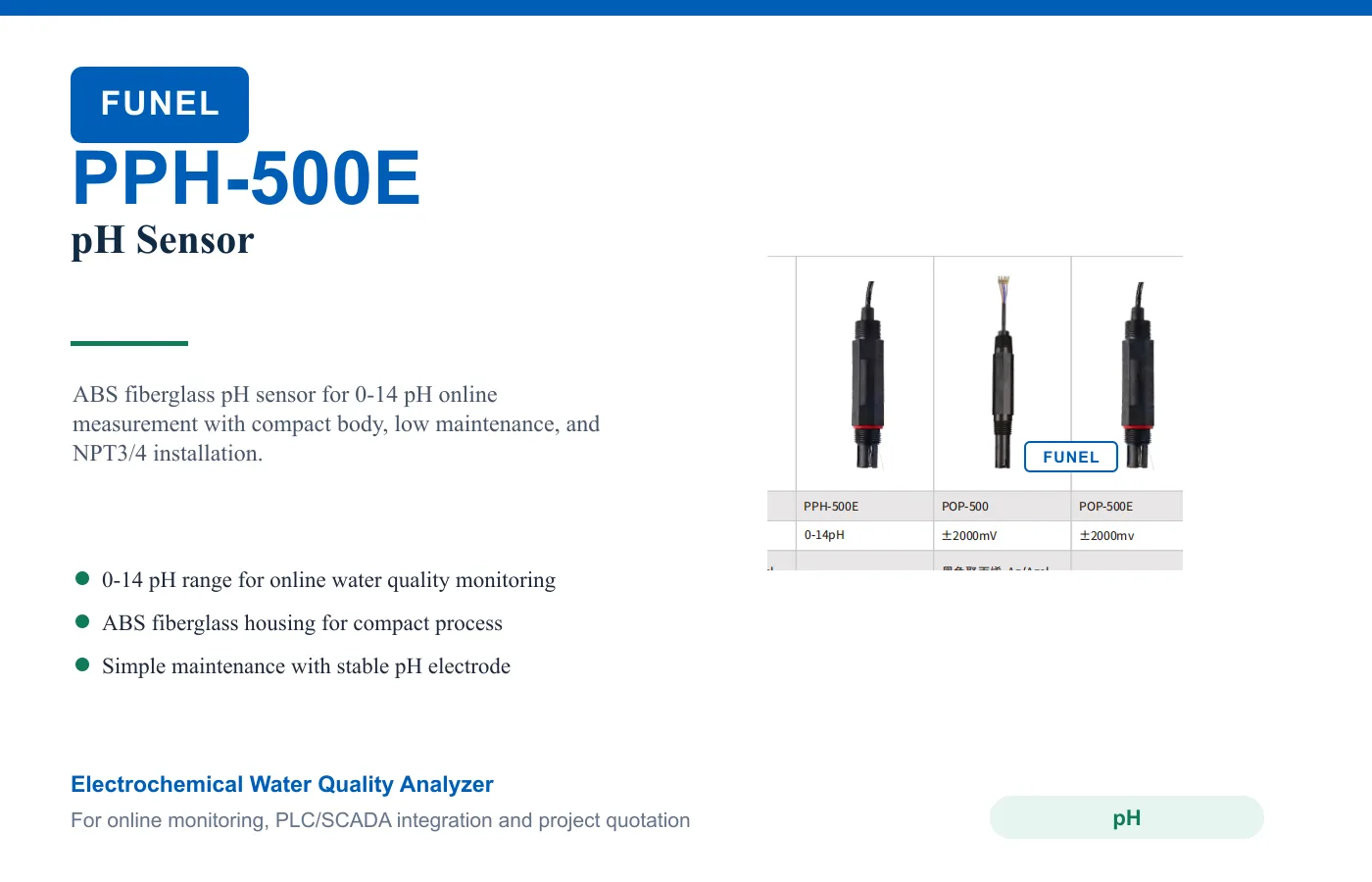

PPH-500E pH Sensor
Model: PPH-500E
ABS fiberglass pH sensor for 0-14 pH online measurement with compact body, low maintenance, and NPT3/4 installation.
PPH-500E
ABS fiberglass pH sensor for 0-14 pH online measurement with compact body, low maintenance, and NPT3/4 installation.
Best for: pH monitoring in wastewater, process water, drinking water, and industrial water loops, Online pH control for dosing, neutralization, and treatment process optimization, Wastewater treatment applications.
Specifications
- Measurement range: 0-14 pH
- Main material: ABS + fiberglass housing
- Operating temperature: 0-80°C, non-freezing
- Pressure range: ≤0.3 MPa
- Zero potential: 7 ±0.5 pH (30 mV)
- Slope: ≥95%
- Internal impedance: ≤250 MΩ
- Response time: ≤30 s to final 95% after stirring
- Size: 34 x 145 mm (diameter x length)
- Installation thread: Top / bottom NPT3/4
- Cable length: 10 m standard; extendable to 50 m
Applications
- pH monitoring in wastewater, process water, drinking water, and industrial water loops
- Online pH control for dosing, neutralization, and treatment process optimization
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- 0-14 pH range for online water quality monitoring
- ABS fiberglass housing for compact process installation
- Simple maintenance with stable pH electrode performance
- NPT3/4 top or bottom thread installation
- Compatible with FUNEL pH transmitters and monitoring systems
Frequently asked questions
What does the PPH-500E measure?
PPH-500E is configured for Measurement range: 0-14 pH; Main material: ABS + fiberglass housing; Operating temperature: 0-80°C, non-freezing; Pressure range: ≤0.3 MPa.
Where is the PPH-500E used?
Typical applications include pH monitoring in wastewater, process water, drinking water, and industrial water loops, Online pH control for dosing, neutralization, and treatment process optimization, Wastewater treatment applications, Drinking water applications.
How do I select or order the PPH-500E?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
