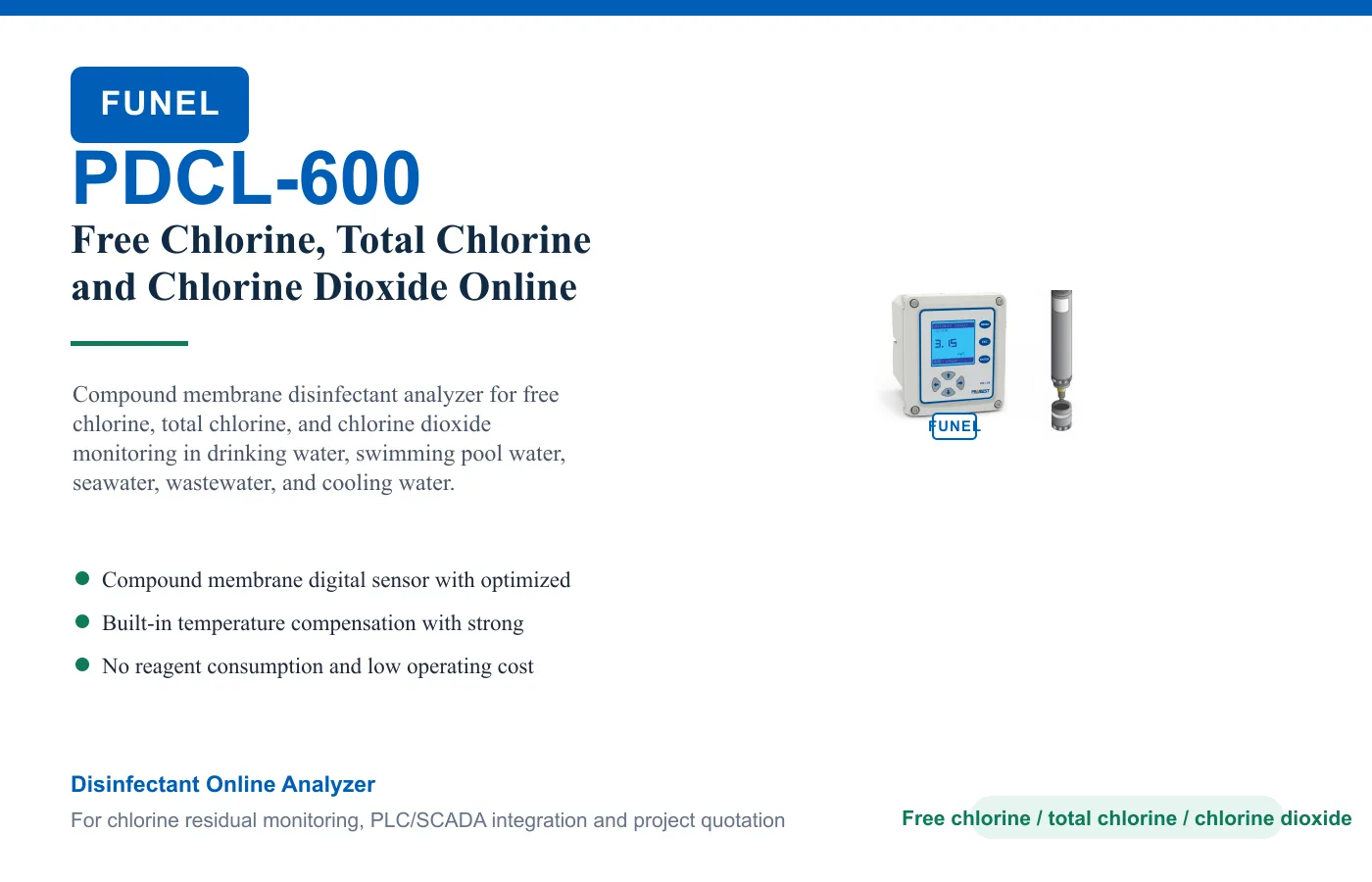

PDCL-600 Free Chlorine, Total Chlorine and Chlorine Dioxide Online Analyzer
Model: PDCL-600
Compound membrane disinfectant analyzer for free chlorine, total chlorine, and chlorine dioxide monitoring in drinking water, swimming pool water, seawater, wastewater, and cooling water.
PDCL-600
Compound membrane disinfectant analyzer for free chlorine, total chlorine, and chlorine dioxide monitoring in drinking water, swimming pool water, seawater, wastewater, and cooling water.
Best for: Free chlorine, total chlorine, and chlorine dioxide monitoring in tap water, drinking water, swimming pool water, aquaculture water, and seawater, Disinfectant residual monitoring in pressurized equipment, circulating water, cooling water, wastewater, and medical wastewater, Drinking water applications.
Specifications
- Measurement range: 0-2 mg/L, 0-20 mg/L, 0.5-200 mg/L
- pH range: pH 4-9
- Conductivity range: 10 µS/cm to 50 mS/cm for seawater
- Flow rate: 250-500 mL/min in flow cell
- Slope drift: Approx. -1% per month
- Response time: T90: about 2 minutes to reach 90% of measured value
- Zero calibration: Not required
- Slope calibration: Analyzed through DPD-1 method on the measuring device
- Temperature compensation: Integrated temperature sensor
- Material: PVC-U, stainless steel, and hydrophilic membrane
- Power supply: AC 85-500 VAC; DC 9-36 VDC
- Output: 3-channel 4-20 mA
- Relay: Three relays with configurable response parameters and response values
- Operating temperature: Measuring water: 0-45°C non-freezing; ambient: 0-55°C
- Communication: MODBUS RS485
- Size: Sensor: 25 x 205 mm (diameter x length); transmitter: 145 x 125 x 162 mm (L x W x H)
- Cable length: 5 m cable
Applications
- Free chlorine, total chlorine, and chlorine dioxide monitoring in tap water, drinking water, swimming pool water, aquaculture water, and seawater
- Disinfectant residual monitoring in pressurized equipment, circulating water, cooling water, wastewater, and medical wastewater
- Drinking water applications
- Tap water applications
- Swimming pool water applications
- Wastewater treatment applications
- Industrial process water applications
- Circulating cooling water applications
- Disinfection control applications
Benefits
- Compound membrane digital sensor with optimized signal processing
- Built-in temperature compensation with strong anti-interference performance
- No reagent consumption and low operating cost
- No zero calibration required for routine use
- Suitable for multiple disinfectant residual monitoring conditions
- Stable data output for continuous online monitoring and automation integration
Frequently asked questions
What does the PDCL-600 measure?
PDCL-600 is configured for Measurement range: 0-2 mg/L, 0-20 mg/L, 0.5-200 mg/L; pH range: pH 4-9; Conductivity range: 10 µS/cm to 50 mS/cm for seawater; Flow rate: 250-500 mL/min in flow cell.
Where is the PDCL-600 used?
Typical applications include Free chlorine, total chlorine, and chlorine dioxide monitoring in tap water, drinking water, swimming pool water, aquaculture water, and seawater, Disinfectant residual monitoring in pressurized equipment, circulating water, cooling water, wastewater, and medical wastewater, Drinking water applications, Tap water applications.
How do I select or order the PDCL-600?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
