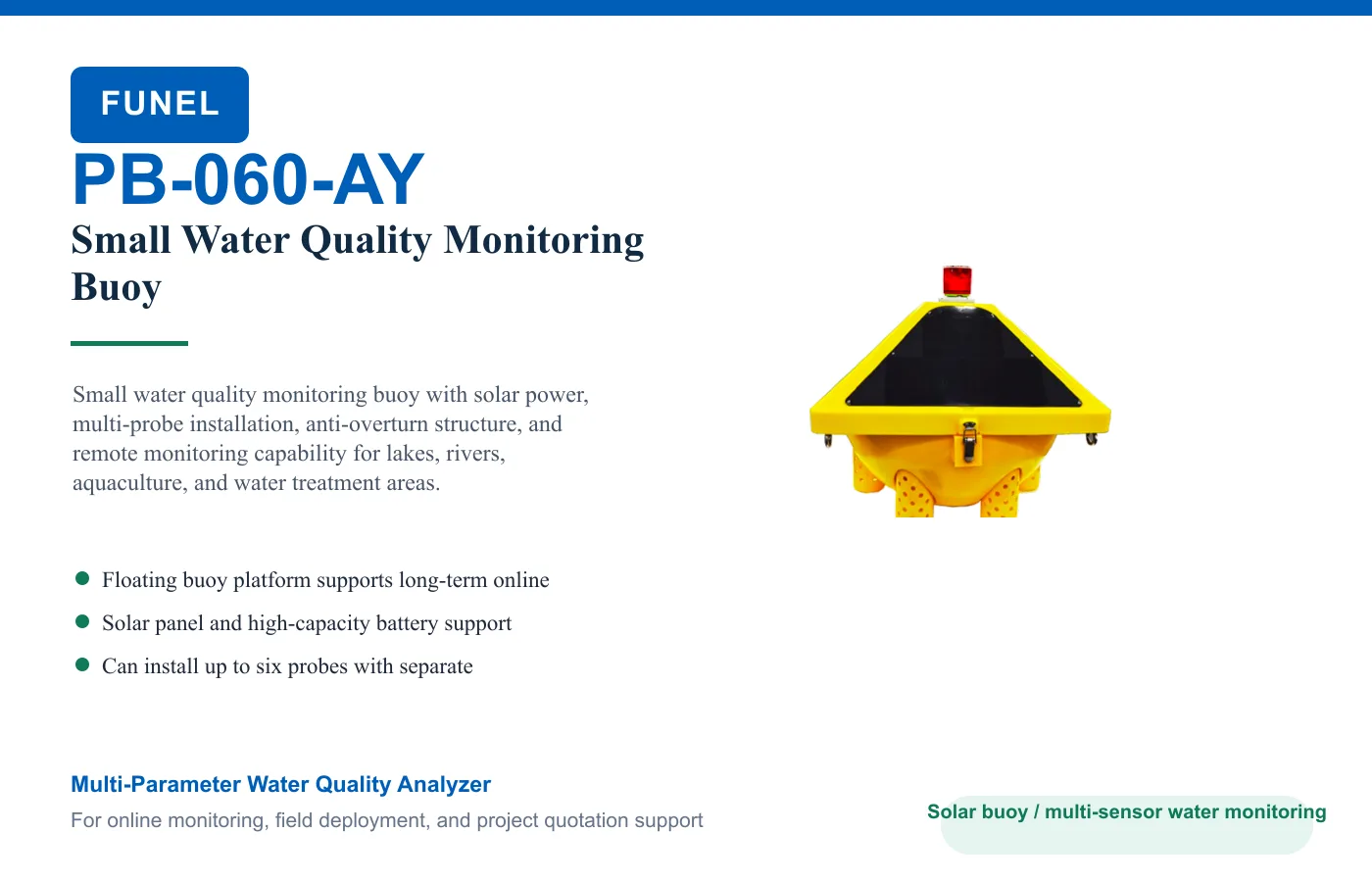

PB-060-AY Small Water Quality Monitoring Buoy
Model: PB-060-AY
Small water quality monitoring buoy with solar power, multi-probe installation, anti-overturn structure, and remote monitoring capability for lakes, rivers, aquaculture, and water treatment areas.
PB-060-AY
Small water quality monitoring buoy with solar power, multi-probe installation, anti-overturn structure, and remote monitoring capability for lakes, rivers, aquaculture, and water treatment areas.
Best for: Urban rivers, lakes, ponds, aquaculture water, reservoir water, and environmental supervision sites, Floating monitoring points requiring solar power and multiple probe installation, Water quality monitoring projects that require remote, continuous, and low-maintenance deployment.
Specifications
- Buoy size: 0.6 x 0.6 x 0.7 m (W x D x H)
- Buoy weight: Approx. 35 kg
- Probe installation: Can install 6 probes with diameter <75 mm and length <400 mm
- Power supply: 42 Ah battery with 72 W solar panel; optional 12 V power supply
- Low-power design: Low-power instruments, data logger, and indicator design reduces power consumption
- Operating endurance: More than 30 days in sunny conditions depending on configuration
- Logo / labeling: Custom printing and indicator display can be configured
- Anti-overturn design: Lower center of gravity helps prevent overturning
- Deployment: Suitable for urban river, small reservoir, pond, and aquaculture deployment
- Sensor maintenance: Plug-in sensor design for convenient service
- pH / temperature: pH 0-14 pH; temperature 0-60°C
- Conductivity: 10 µS/cm to 200 mS/cm
- Dissolved oxygen: 0-20 mg/L, 0-200% saturation; temperature 0-45°C
- Turbidity: 0.01-4000 NTU
- Chlorophyll: 0-500 µg/L
- Blue-green algae: 0-300000 cells/mL
- UVCOD: 0-2000 mg/L COD (2 mm)
- Ammonia: 0.1-3000 mg/L
Applications
- Urban rivers, lakes, ponds, aquaculture water, reservoir water, and environmental supervision sites
- Floating monitoring points requiring solar power and multiple probe installation
- Water quality monitoring projects that require remote, continuous, and low-maintenance deployment
- Surface water applications
- Drinking water source applications
- Aquaculture applications
- Wastewater treatment applications
- Industrial process water applications
- Environmental monitoring applications
- Seawater monitoring applications
- Field inspection applications
Benefits
- Floating buoy platform supports long-term online water quality monitoring
- Solar panel and high-capacity battery support unattended field deployment
- Can install up to six probes with separate mounting to reduce sensor interference
- Anti-overturn and anti-collision design improves stability in outdoor water bodies
- Plug-in sensor structure simplifies installation and maintenance
- Supports pH, temperature, conductivity, DO, turbidity, chlorophyll, blue-green algae, UVCOD, and ammonia monitoring
Frequently asked questions
What does the PB-060-AY measure?
PB-060-AY is configured for Buoy size: 0.6 x 0.6 x 0.7 m (W x D x H); Buoy weight: Approx. 35 kg; Probe installation: Can install 6 probes with diameter <75 mm and length <400 mm; Power supply: 42 Ah battery with 72 W solar panel; optional 12 V power supply.
Where is the PB-060-AY used?
Typical applications include Urban rivers, lakes, ponds, aquaculture water, reservoir water, and environmental supervision sites, Floating monitoring points requiring solar power and multiple probe installation, Water quality monitoring projects that require remote, continuous, and low-maintenance deployment, Surface water applications.
How do I select or order the PB-060-AY?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
Tell us your water type and signal requirements
We will help select the right analyzer, sensor, controller, output signal and installation plan for your project.
Get a project quote
Send parameter, measuring range, quantity, output signal and application. We will prepare a quotation and datasheet.
Request quote
