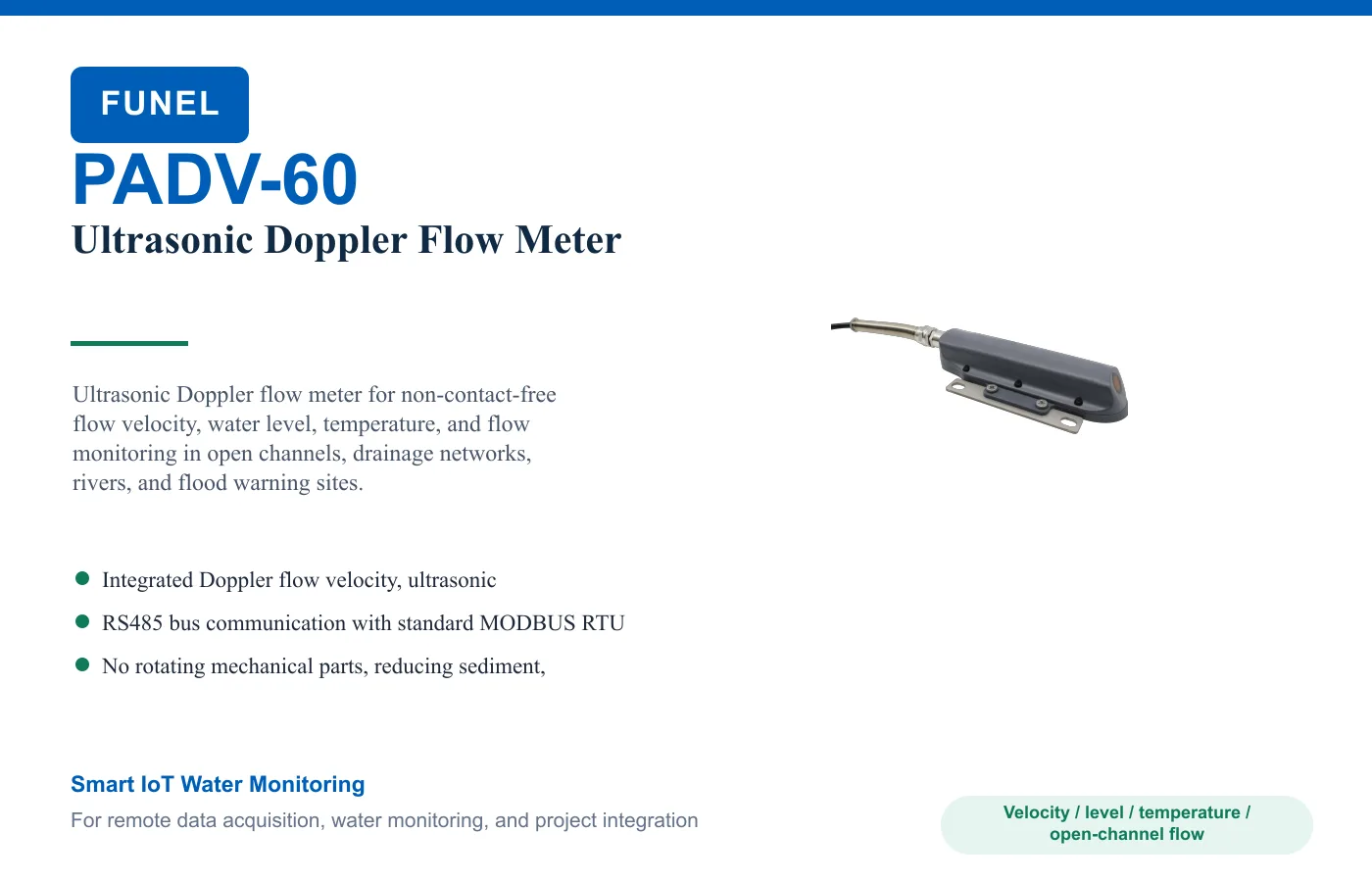

PADV-60 Ultrasonic Doppler Flow Meter
Model: PADV-60
Ultrasonic Doppler flow meter for non-contact-free flow velocity, water level, temperature, and flow monitoring in open channels, drainage networks, rivers, and flood warning sites.
PADV-60
Ultrasonic Doppler flow meter for non-contact-free flow velocity, water level, temperature, and flow monitoring in open channels, drainage networks, rivers, and flood warning sites.
Best for: Municipal drainage and sewage discharge monitoring, River, open-channel, and culvert flow monitoring, Water level, flow velocity, and flow monitoring in irrigation channels and drainage networks.
Specifications
- Flow velocity range: -10 to 10 m/s, customizable
- Flow velocity accuracy: ±1-3%, depending on site operating condition
- Velocity resolution: 1 mm/s
- Water level range: 0.02-10 m
- Water level accuracy: ±3 cm
- Water depth resolution: 3 mm
- Operating temperature: 0-60°C, non-freezing
- Temperature resolution: 0.01°C
- Storage temperature: -20 to 80°C
- Operating environment: Sediment <20 g/L; salinity: fresh water; pH 6-8
- Communication: Standard MODBUS RS485 protocol
- Power supply: 10-30 VDC
- Power consumption: 1 W ±0.1 W at 12 V; 1.5 W ±0.1 W at 24 V
- Operating current: ≤100 mA
- Material: POM + ABS + PC
- Protection: IP68
- Weight: 2.5 kg including cable; standard 20 m cable
- Size: 207.5 x 105 x 37.5 mm (L x W x H)
Applications
- Municipal drainage and sewage discharge monitoring
- River, open-channel, and culvert flow monitoring
- Water level, flow velocity, and flow monitoring in irrigation channels and drainage networks
- Flood warning and urban waterlogging monitoring points
- Smart water monitoring applications
- Drainage network applications
- Sewage discharge applications
- Open-channel flow applications
- Flood warning applications
- Remote telemetry applications
- Water tank monitoring applications
- Environmental monitoring applications
Benefits
- Integrated Doppler flow velocity, ultrasonic level, temperature, and flow calculation
- RS485 bus communication with standard MODBUS RTU protocol
- No rotating mechanical parts, reducing sediment, aquatic plant, and debris interference
- Wide range, high sensitivity, and high resolution without automatic flow velocity limitation
- Compact IP68 design for drainage, river, and channel installation
Frequently asked questions
What does the PADV-60 measure?
PADV-60 is configured for Flow velocity range: -10 to 10 m/s, customizable; Flow velocity accuracy: ±1-3%, depending on site operating condition; Velocity resolution: 1 mm/s; Water level range: 0.02-10 m.
Where is the PADV-60 used?
Typical applications include Municipal drainage and sewage discharge monitoring, River, open-channel, and culvert flow monitoring, Water level, flow velocity, and flow monitoring in irrigation channels and drainage networks, Flood warning and urban waterlogging monitoring points.
How do I select or order the PADV-60?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
