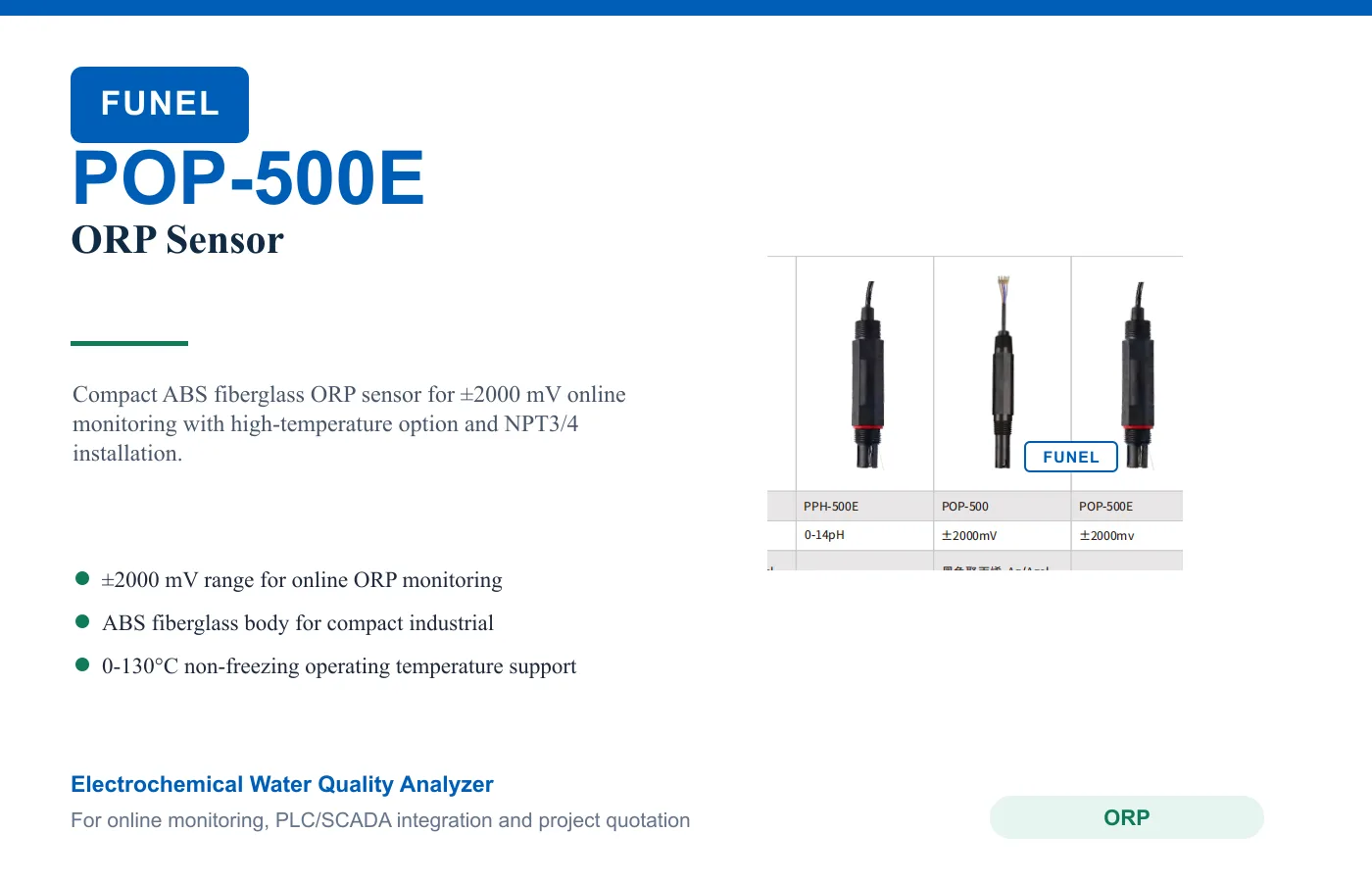

POP-500E ORP Sensor
Model: POP-500E
Compact ABS fiberglass ORP sensor for ±2000 mV online monitoring with high-temperature option and NPT3/4 installation.
POP-500E
Compact ABS fiberglass ORP sensor for ±2000 mV online monitoring with high-temperature option and NPT3/4 installation.
Best for: Online ORP monitoring for disinfection, dosing, oxidation, and reduction control, Industrial water, wastewater, and process water redox monitoring, Wastewater treatment applications.
Specifications
- Measurement range: ±2000 mV
- Main material: ABS + fiberglass housing
- Operating temperature: 0-130°C, non-freezing
- Pressure range: ≤0.3 MPa
- Zero potential: 86 ±15 mV at 25°C in pH 7.00 saturated quinhydrone solution
- Response time: ≤30 s to final 95% after stirring
- Size: 34 x 145 mm (diameter x length)
- Installation thread: Top / bottom NPT3/4
- Cable length: 10 m standard; extendable to 50 m
Applications
- Online ORP monitoring for disinfection, dosing, oxidation, and reduction control
- Industrial water, wastewater, and process water redox monitoring
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- ±2000 mV range for online ORP monitoring
- ABS fiberglass body for compact industrial installation
- 0-130°C non-freezing operating temperature support
- NPT3/4 top or bottom thread installation
- Designed for stable ORP process control and water quality monitoring
Frequently asked questions
What does the POP-500E measure?
POP-500E is configured for Measurement range: ±2000 mV; Main material: ABS + fiberglass housing; Operating temperature: 0-130°C, non-freezing; Pressure range: ≤0.3 MPa.
Where is the POP-500E used?
Typical applications include Online ORP monitoring for disinfection, dosing, oxidation, and reduction control, Industrial water, wastewater, and process water redox monitoring, Wastewater treatment applications, Drinking water applications.
How do I select or order the POP-500E?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
