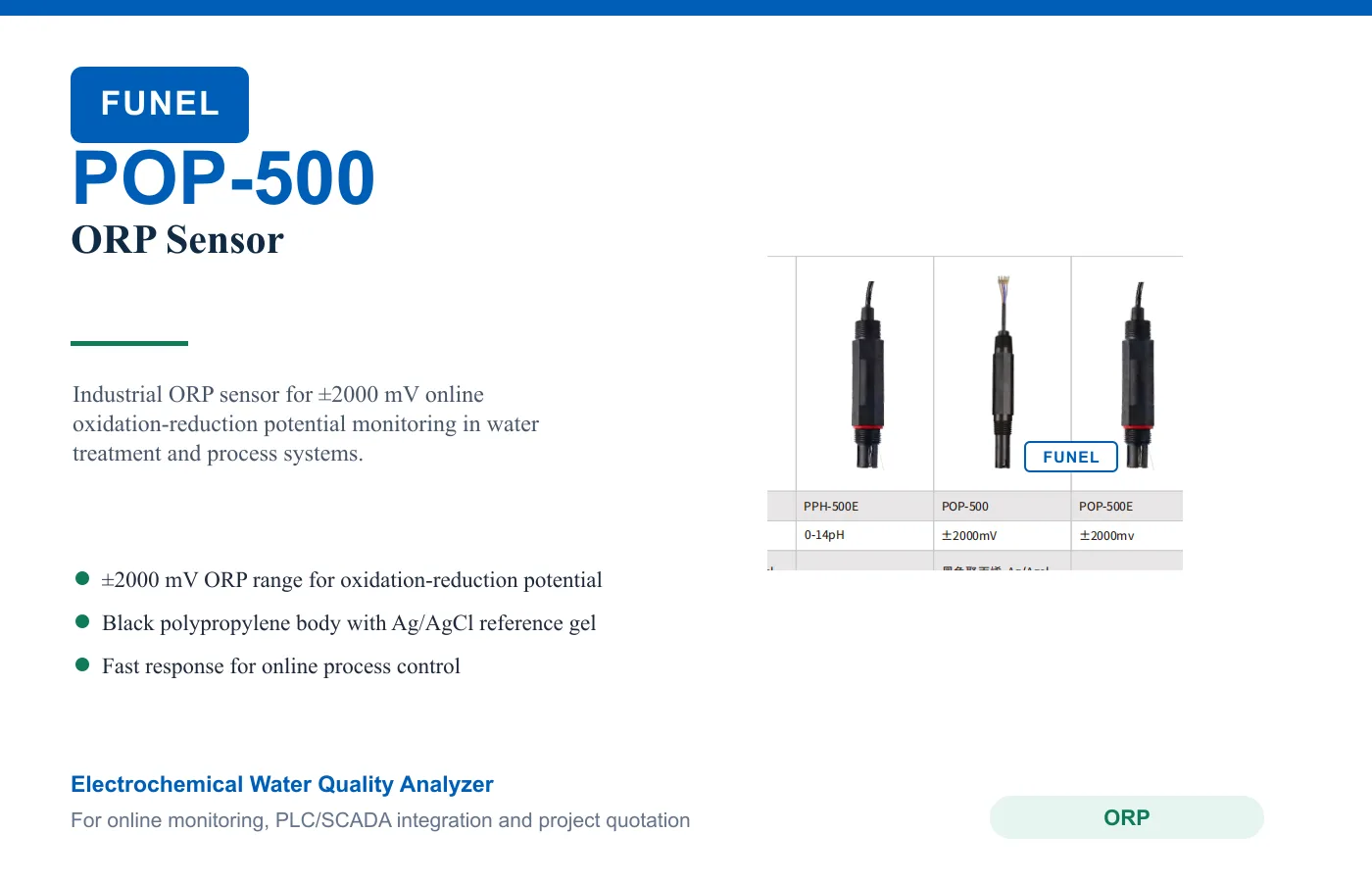

POP-500 ORP Sensor
Model: POP-500
Industrial ORP sensor for ±2000 mV online oxidation-reduction potential monitoring in water treatment and process systems.
POP-500
Industrial ORP sensor for ±2000 mV online oxidation-reduction potential monitoring in water treatment and process systems.
Best for: ORP monitoring in wastewater treatment, disinfection control, and chemical dosing systems, Online redox monitoring for industrial water, surface water, and environmental process control, Wastewater treatment applications.
Specifications
- Measurement range: ±2000 mV
- Main material: Black polypropylene body; Ag/AgCl reference gel
- Operating temperature: 0-80°C, non-freezing
- Pressure range: ≤0.6 MPa
- Zero potential: 86 ±15 mV at 25°C in pH 7.00 saturated quinhydrone solution
- Response time: ≤10 s to final 95% after stirring
- Size: 28.7 x 195 mm (diameter x length)
- Installation thread: Top / bottom R3/4
- Cable length: 10 m standard; extendable to 20 m
Applications
- ORP monitoring in wastewater treatment, disinfection control, and chemical dosing systems
- Online redox monitoring for industrial water, surface water, and environmental process control
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- ±2000 mV ORP range for oxidation-reduction potential monitoring
- Black polypropylene body with Ag/AgCl reference gel
- Fast response for online process control
- R3/4 top or bottom thread installation
- Suitable for water treatment, disinfection, and process monitoring systems
Frequently asked questions
What does the POP-500 measure?
POP-500 is configured for Measurement range: ±2000 mV; Main material: Black polypropylene body; Ag/AgCl reference gel; Operating temperature: 0-80°C, non-freezing; Pressure range: ≤0.6 MPa.
Where is the POP-500 used?
Typical applications include ORP monitoring in wastewater treatment, disinfection control, and chemical dosing systems, Online redox monitoring for industrial water, surface water, and environmental process control, Wastewater treatment applications, Drinking water applications.
How do I select or order the POP-500?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
Tell us your water type and signal requirements
We will help select the right analyzer, sensor, controller, output signal and installation plan for your project.
Get a project quote
Send parameter, measuring range, quantity, output signal and application. We will prepare a quotation and datasheet.
Request quote
