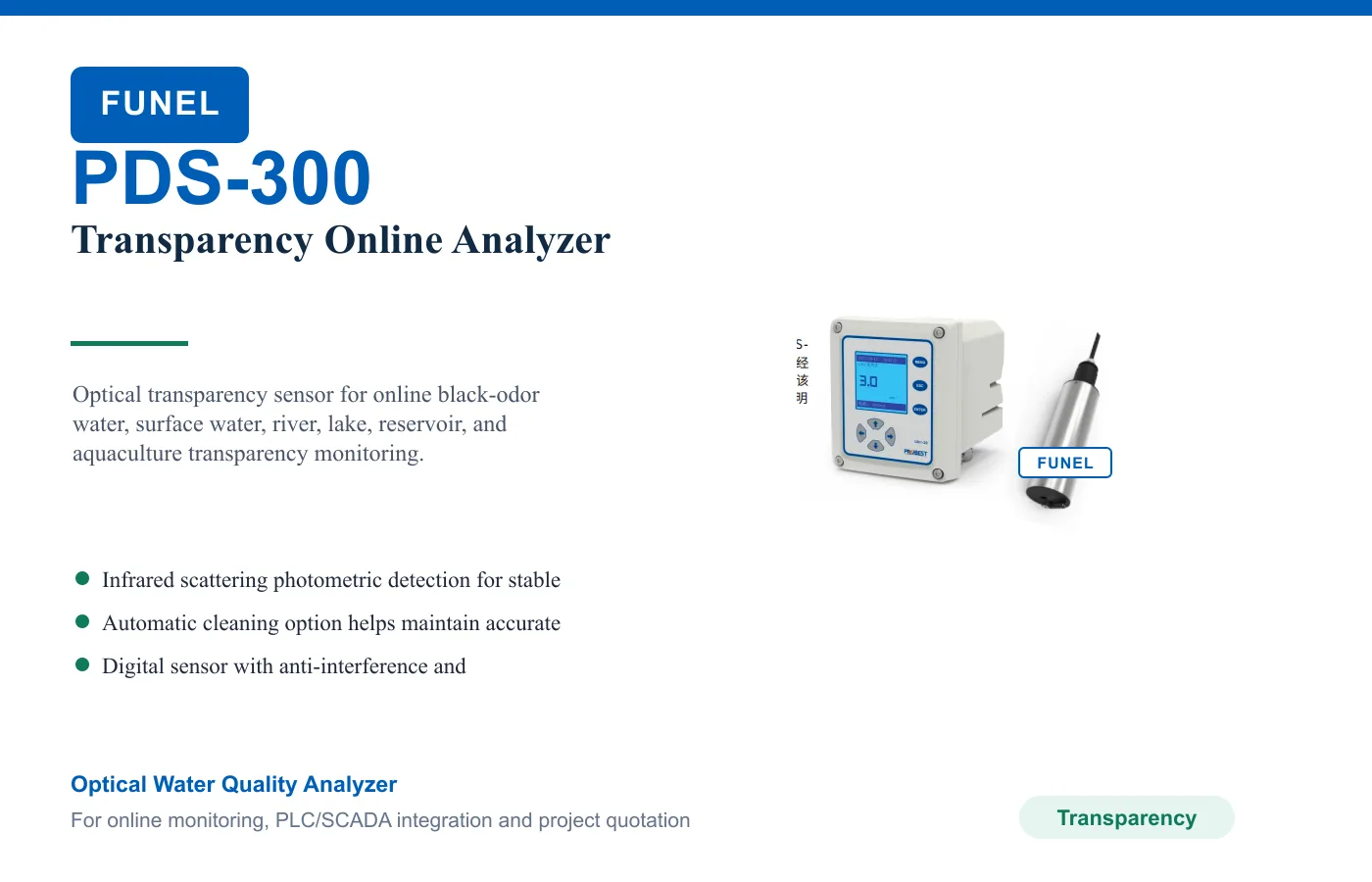

PDS-300 Transparency Online Analyzer
Model: PDS-300
Optical transparency sensor for online black-odor water, surface water, river, lake, reservoir, and aquaculture transparency monitoring.
PDS-300
Optical transparency sensor for online black-odor water, surface water, river, lake, reservoir, and aquaculture transparency monitoring.
Best for: Transparency monitoring for black-odor water identification and environmental water quality assessment, Online transparency monitoring for urban rivers, lakes, reservoirs, surface water, and aquaculture, Wastewater treatment applications.
Specifications
- Measurement range: 2-100 cm
- Accuracy: ±0.3 cm or ±5% of reading
- Pressure range: ≤0.4 MPa
- Flow velocity: ≤2.5 m/s, 8.2 ft/s
- Sensor size: 60 x 254 mm (diameter x length)
- Sensor weight: 1.65 kg
- Sensor protection: IP68 / NEMA6P
- Power supply: AC 85-500 VAC; DC 9-36 VDC
- Output: 3-channel 4-20 mA
- Relay: Three relays with configurable response parameters
- Communication: MODBUS RS485
- Storage temperature: -15 to 60°C
- Operating temperature: 0-45°C, non-freezing
- Transmitter size: 145 x 125 x 162 mm (L x W x H)
- Transmitter weight: 1.35 kg
- Transmitter protection: IP66 / NEMA4X
- Cable length: 10 m standard cable; extendable to 100 m unless otherwise noted
Applications
- Transparency monitoring for black-odor water identification and environmental water quality assessment
- Online transparency monitoring for urban rivers, lakes, reservoirs, surface water, and aquaculture
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Aquaculture applications
- Environmental monitoring applications
Benefits
- Infrared scattering photometric detection for stable transparency monitoring
- Automatic cleaning option helps maintain accurate data
- Digital sensor with anti-interference and long-distance transmission
- Standard digital signal output for integration and networking
- Fast field installation and direct insertion application
- Reverse-polarity protection, RS485 protection, historical data, and optional wireless module
Frequently asked questions
What does the PDS-300 measure?
PDS-300 is configured for Measurement range: 2-100 cm; Accuracy: ±0.3 cm or ±5% of reading; Pressure range: ≤0.4 MPa; Flow velocity: ≤2.5 m/s, 8.2 ft/s.
Where is the PDS-300 used?
Typical applications include Transparency monitoring for black-odor water identification and environmental water quality assessment, Online transparency monitoring for urban rivers, lakes, reservoirs, surface water, and aquaculture, Wastewater treatment applications, Drinking water applications.
How do I select or order the PDS-300?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
