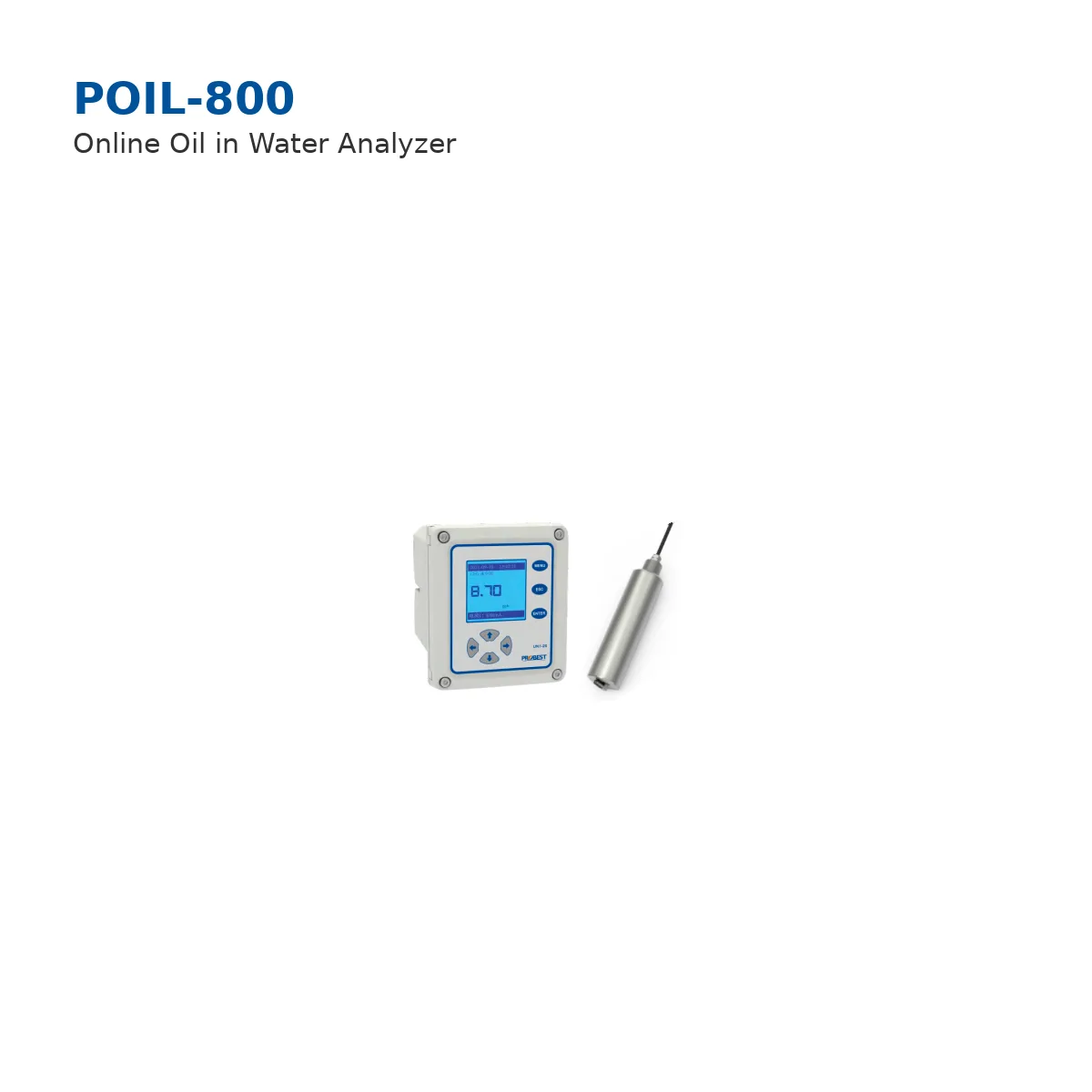

Online Oil in Water Analyzer
Model: POIL-800
Reagent-free online oil-in-water analyzer using UV fluorescence for continuous monitoring of petroleum hydrocarbons in wastewater, surface water, seawater and industrial discharge.
Specifications
- Measuring Range: 0–100 mg/L (NDSA)
- Accuracy: ±5% of measured value or ±0.15 mg/L, whichever is greater
- Repeatability: ±2%
- Resolution: 0.01 mg/L
- Pressure Range: ≤0.4 MPa
- Calibration: Sample calibration; slope calibration
- Sensor Main Material: Body: SUS316L standard version; titanium alloy seawater version; cable: PUR
- Power Supply: AC 85–500 VAC; DC 9–36 VDC
- Output: 3 channels 4–20 mA
- Relay: 3 relays; programmable response parameters and response values
- Communication: Modbus RS485
- Storage Temperature: -15–50 °C
- Operating Temperature: 0–45 °C, non-freezing
- Dimensions: Sensor: Ø60 × 263 mm; transmitter: 145 × 125 × 162 mm (L × W × H)
- Weight: Sensor: 2.1 kg; transmitter: 1.35 kg
- Protection Grade: Sensor: IP68 / NEMA6P; transmitter: IP66 / NEMA4X
- Cleaning Method: Automatic wiper cleaning
- Cable Length: Standard 10 m cable; extendable to 100 m
Applications
- Real-time online oil monitoring in water treatment systems for petroleum, chemical, power and other industrial fields
- Wastewater discharge oil-in-water monitoring
- Surface water, groundwater, seawater and drinking water monitoring
- Pollution source discharge control and environmental water quality monitoring
- Oil & Gas applications
- Petrochemical applications
- Chemical Processing applications
- Power Plants applications
- Industrial Wastewater applications
- Environmental Monitoring applications
- Surface Water Monitoring applications
Benefits
- UV fluorescence optical measurement, reagent-free and dilution-free
- Short response time for continuous online measurement
- LED light source with compact size and low power consumption
- Automatic sensor cleaning function for reduced maintenance
- Optical and electronic filtering technology to reduce ambient light interference
- Wide operating range and high sensitivity
- Durable full-metal sensor housing
- Time display, data storage and historical data viewing
- Optional wireless data transmission module
