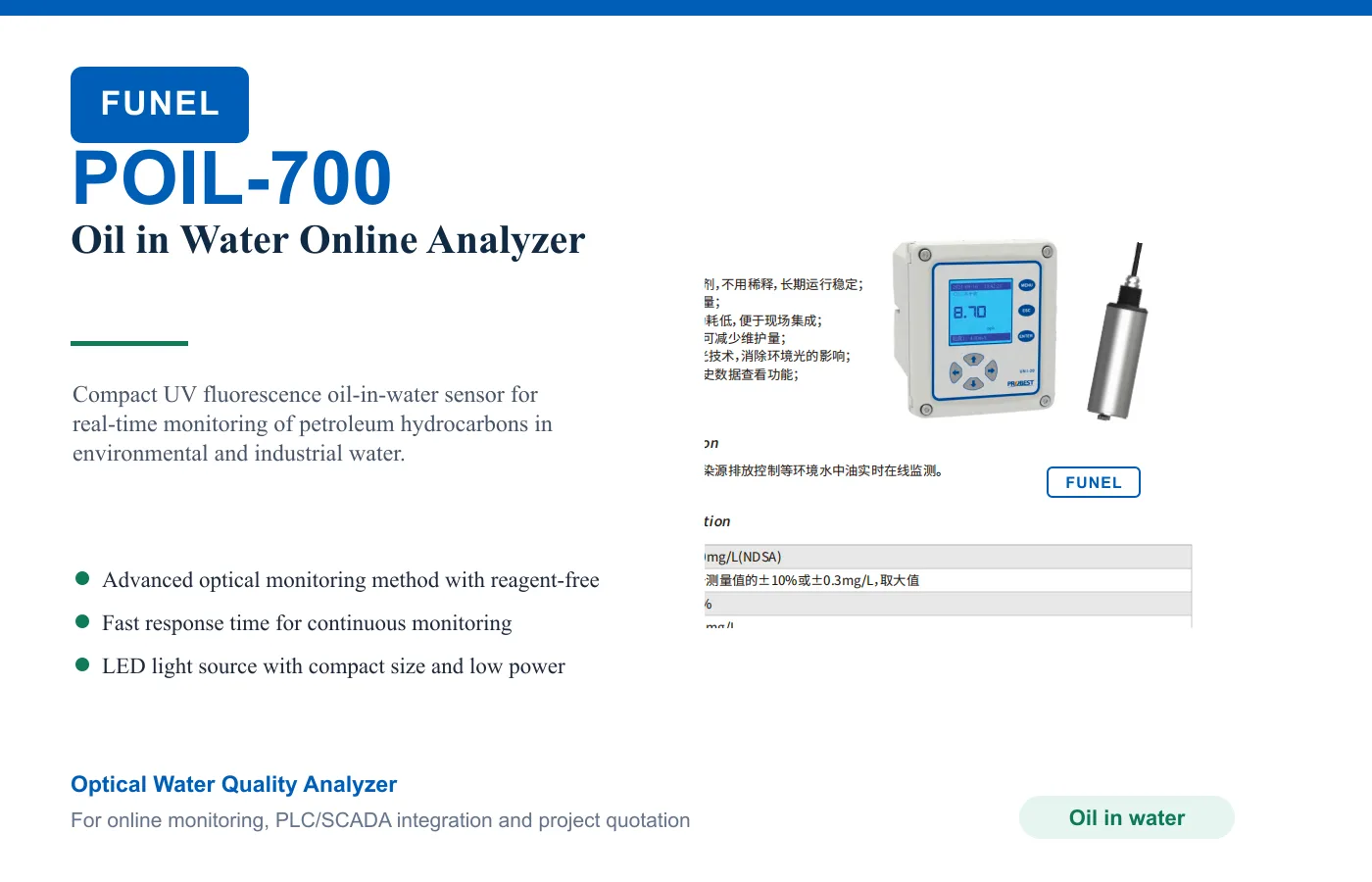

POIL-700 Oil in Water Online Analyzer
Model: POIL-700
Compact UV fluorescence oil-in-water sensor for real-time monitoring of petroleum hydrocarbons in environmental and industrial water.
POIL-700
Compact UV fluorescence oil-in-water sensor for real-time monitoring of petroleum hydrocarbons in environmental and industrial water.
Best for: Real-time oil-in-water monitoring for surface water, groundwater, drinking water, and contaminated discharge control, Oil pollution monitoring in environmental water bodies and industrial wastewater applications, Wastewater treatment applications.
Specifications
- Measurement range: 0-50 mg/L (NDSA)
- Accuracy: Better than ±10% of reading or ±0.3 mg/L, whichever is greater
- Repeatability: ±5%
- Resolution: 0.01 mg/L
- Pressure range: ≤0.1 MPa
- Calibration: Sample calibration; slope calibration
- Sensor material: SUS316L body; PUR cable
- Sensor size: 60 x 213 mm (diameter x length)
- Sensor weight: 1.55 kg
- Sensor protection: IP68 / NEMA6P
- Cleaning: Automatic brush cleaning
- Power supply: AC 85-500 VAC; DC 9-36 VDC
- Output: 3-channel 4-20 mA
- Relay: Three relays with configurable response parameters
- Communication: MODBUS RS485
- Storage temperature: -15 to 60°C
- Operating temperature: 0-45°C, non-freezing
- Transmitter size: 145 x 125 x 162 mm (L x W x H)
- Transmitter weight: 1.35 kg
- Transmitter protection: IP66 / NEMA4X
- Cable length: 10 m standard cable; extendable to 100 m unless otherwise noted
Applications
- Real-time oil-in-water monitoring for surface water, groundwater, drinking water, and contaminated discharge control
- Oil pollution monitoring in environmental water bodies and industrial wastewater applications
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Aquaculture applications
- Environmental monitoring applications
Benefits
- Advanced optical monitoring method with reagent-free oil-in-water measurement
- Fast response time for continuous monitoring
- LED light source with compact size and low power consumption
- Automatic cleaning option reduces maintenance
- Unique optical and electronic filtering helps reduce ambient-light interference
- Durable stainless-steel body with data storage and optional wireless transmission
Frequently asked questions
What does the POIL-700 measure?
POIL-700 is configured for Measurement range: 0-50 mg/L (NDSA); Accuracy: Better than ±10% of reading or ±0.3 mg/L, whichever is greater; Repeatability: ±5%; Resolution: 0.01 mg/L.
Where is the POIL-700 used?
Typical applications include Real-time oil-in-water monitoring for surface water, groundwater, drinking water, and contaminated discharge control, Oil pollution monitoring in environmental water bodies and industrial wastewater applications, Wastewater treatment applications, Drinking water applications.
How do I select or order the POIL-700?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
