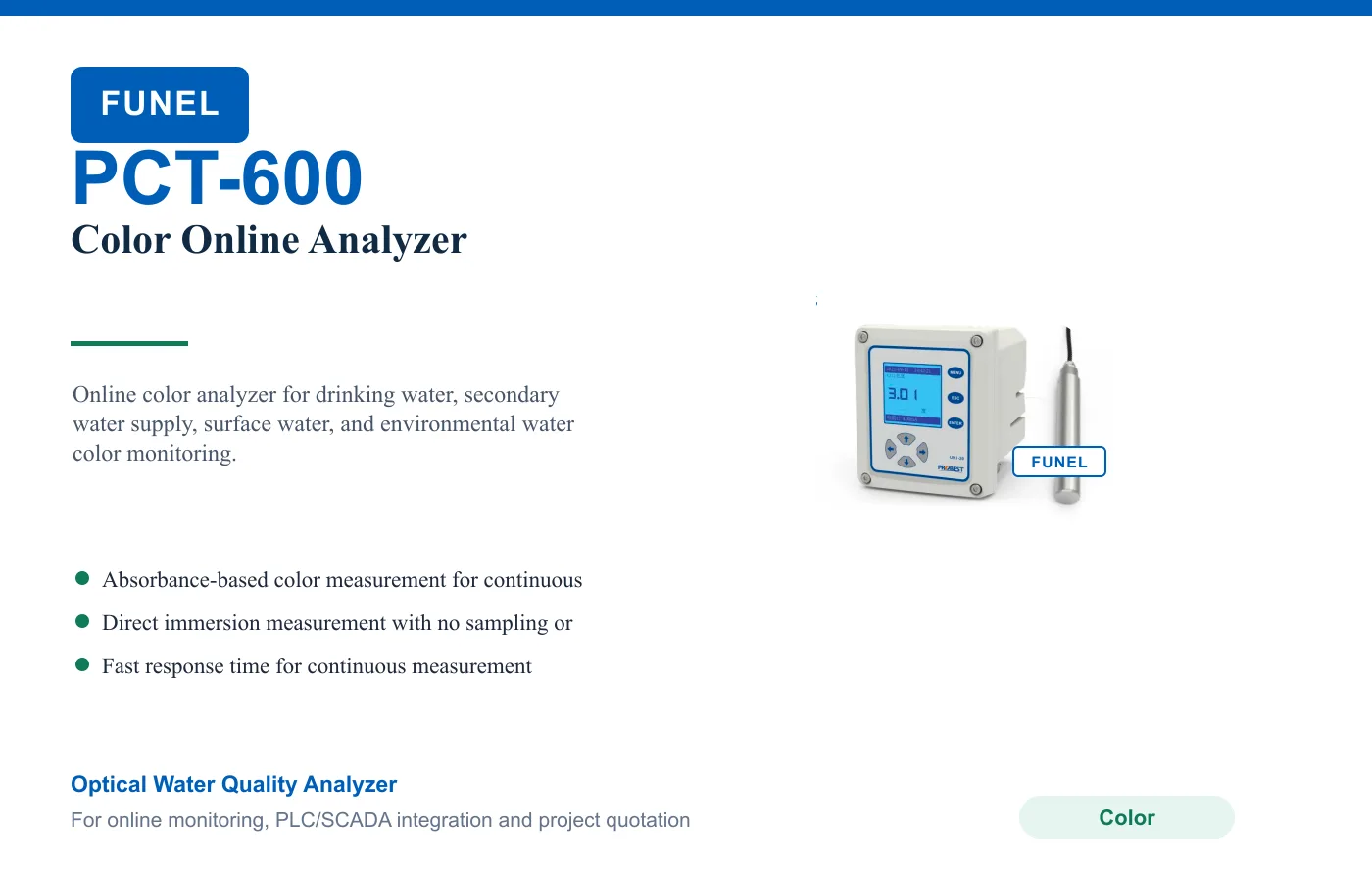

PCT-600 Color Online Analyzer
Model: PCT-600
Online color analyzer for drinking water, secondary water supply, surface water, and environmental water color monitoring.
PCT-600
Online color analyzer for drinking water, secondary water supply, surface water, and environmental water color monitoring.
Best for: Online color monitoring for raw water, secondary water supply, and drinking water, Real-time color monitoring for surface water and environmental water bodies, Wastewater treatment applications.
Specifications
- Measurement range: 0-100 degree
- Accuracy: ±10% or ±1 degree, whichever is greater
- Repeatability: ≤5%
- Resolution: 0.1 degree
- Pressure range: ≤0.1 MPa
- Sensor material: SUS316L body for standard version; titanium alloy for seawater version; PUR cable
- Sensor size: 34 x 244 mm (diameter x length)
- Sensor weight: 0.8 kg
- Sensor protection: IP68 / NEMA6P
- Power supply: AC 85-500 VAC; DC 9-36 VDC
- Output: 3-channel 4-20 mA
- Relay: Three relays with configurable response parameters
- Communication: MODBUS RS485
- Storage temperature: -15 to 60°C
- Operating temperature: 0-45°C, non-freezing
- Transmitter size: 145 x 125 x 162 mm (L x W x H)
- Transmitter weight: 1.35 kg
- Transmitter protection: IP66 / NEMA4X
- Cable length: 10 m standard cable; extendable to 100 m unless otherwise noted
Applications
- Online color monitoring for raw water, secondary water supply, and drinking water
- Real-time color monitoring for surface water and environmental water bodies
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Aquaculture applications
- Environmental monitoring applications
Benefits
- Absorbance-based color measurement for continuous online monitoring
- Direct immersion measurement with no sampling or pretreatment required
- Fast response time for continuous measurement
- LED light source with compact size and low power consumption
- Automatic cleaning option reduces maintenance demand
- Reverse-polarity protection, RS485 protection, history data, and optional wireless module
Frequently asked questions
What does the PCT-600 measure?
PCT-600 is configured for Measurement range: 0-100 degree; Accuracy: ±10% or ±1 degree, whichever is greater; Repeatability: ≤5%; Resolution: 0.1 degree.
Where is the PCT-600 used?
Typical applications include Online color monitoring for raw water, secondary water supply, and drinking water, Real-time color monitoring for surface water and environmental water bodies, Wastewater treatment applications, Drinking water applications.
How do I select or order the PCT-600?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
