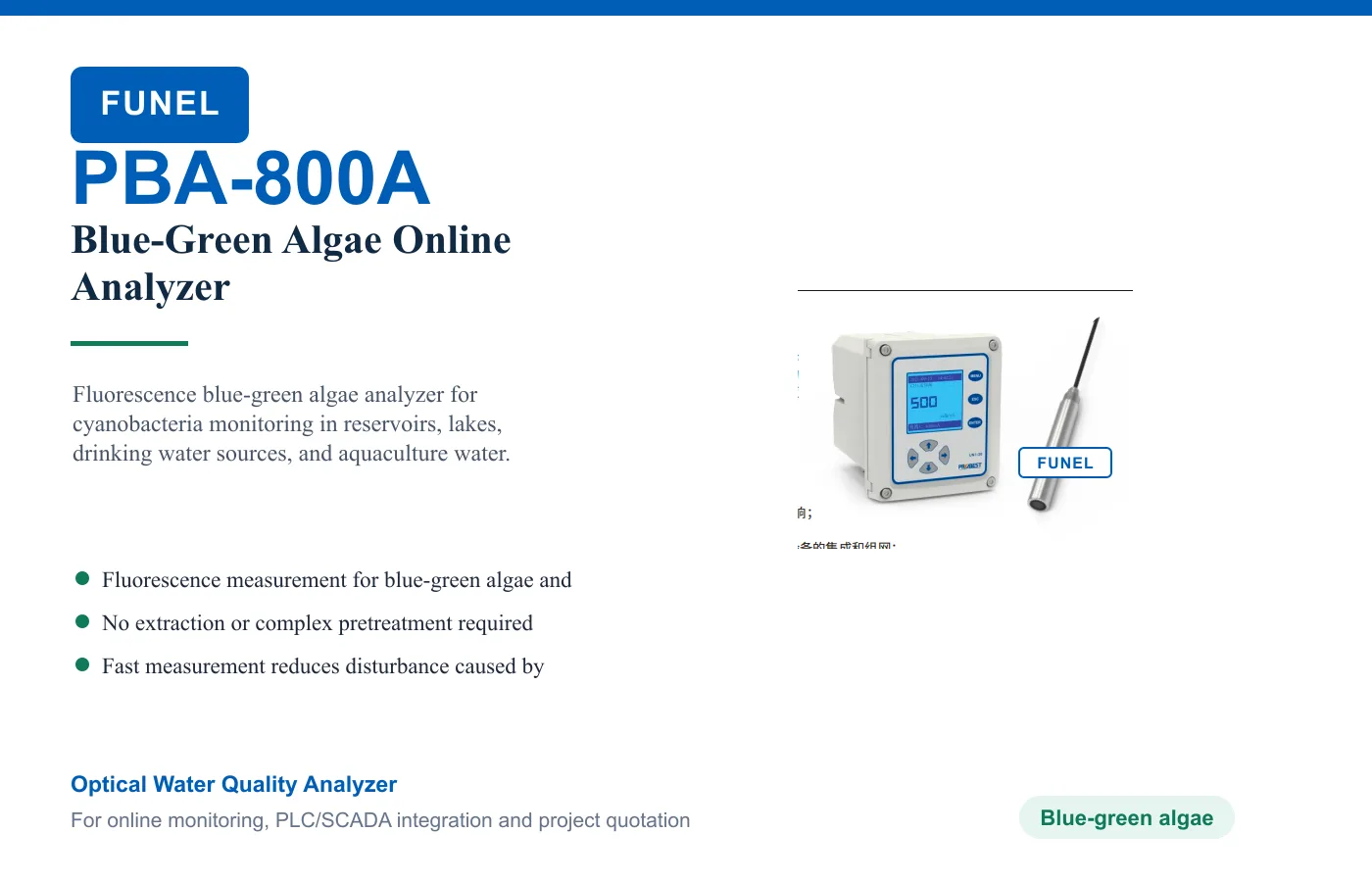

PBA-800A Blue-Green Algae Online Analyzer
Model: PBA-800A
Fluorescence blue-green algae analyzer for cyanobacteria monitoring in reservoirs, lakes, drinking water sources, and aquaculture water.
PBA-800A
Fluorescence blue-green algae analyzer for cyanobacteria monitoring in reservoirs, lakes, drinking water sources, and aquaculture water.
Best for: Blue-green algae monitoring at raw water intake, drinking water sources, and aquaculture waters, Cyanobacteria monitoring in surface water, landscape water, lakes, reservoirs, and seawater, Wastewater treatment applications.
Specifications
- Measurement range: 0-300,000 cells/mL
- Detection limit: 200 cells/mL
- Accuracy: ±10% at 1 ppb Rhodamine B signal level
- Repeatability: ±3%
- Resolution: 20 cells/mL
- Pressure range: ≤0.4 MPa
- Calibration: Offset calibration; slope calibration
- Sample condition: Sample distribution should be uniform; multi-point monitoring is recommended; turbidity should be below 50 NTU
- Sensor material: SUS316L + PVC body; POM covers; PUR cable
- Sensor size: 30 x 223 mm (diameter x length)
- Sensor weight: 0.55 kg
- Sensor protection: IP68 / NEMA6P
- Power supply: AC 85-500 VAC; DC 9-36 VDC
- Output: 3-channel 4-20 mA
- Relay: Three relays with configurable response parameters
- Communication: MODBUS RS485
- Storage temperature: -15 to 60°C
- Operating temperature: 0-45°C, non-freezing
- Transmitter size: 145 x 125 x 162 mm (L x W x H)
- Transmitter weight: 1.35 kg
- Transmitter protection: IP66 / NEMA4X
- Cable length: 10 m standard cable; extendable to 100 m unless otherwise noted
Applications
- Blue-green algae monitoring at raw water intake, drinking water sources, and aquaculture waters
- Cyanobacteria monitoring in surface water, landscape water, lakes, reservoirs, and seawater
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Aquaculture applications
- Environmental monitoring applications
Benefits
- Fluorescence measurement for blue-green algae and cyanobacteria warning applications
- No extraction or complex pretreatment required
- Fast measurement reduces disturbance caused by sample handling
- Digital sensor with strong anti-interference and long-distance communication
- Standard digital signal output for integration and networking
- Fast field installation with power reverse-polarity protection and RS485 protection
Frequently asked questions
What does the PBA-800A measure?
PBA-800A is configured for Measurement range: 0-300,000 cells/mL; Detection limit: 200 cells/mL; Accuracy: ±10% at 1 ppb Rhodamine B signal level; Repeatability: ±3%.
Where is the PBA-800A used?
Typical applications include Blue-green algae monitoring at raw water intake, drinking water sources, and aquaculture waters, Cyanobacteria monitoring in surface water, landscape water, lakes, reservoirs, and seawater, Wastewater treatment applications, Drinking water applications.
How do I select or order the PBA-800A?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
