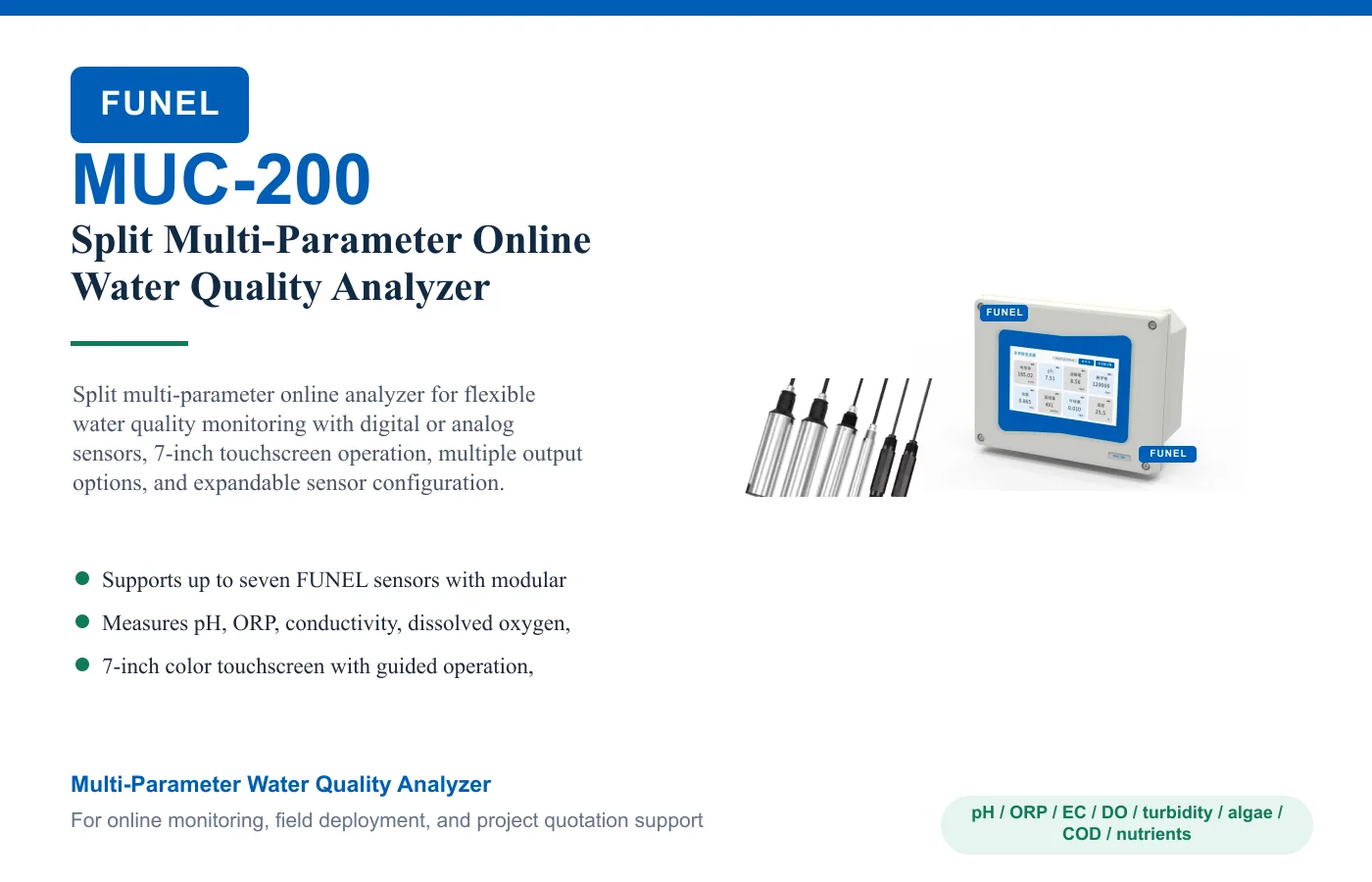

MUC-200 Split Multi-Parameter Online Water Quality Analyzer
Model: MUC-200
Split multi-parameter online analyzer for flexible water quality monitoring with digital or analog sensors, 7-inch touchscreen operation, multiple output options, and expandable sensor configuration.
MUC-200
Split multi-parameter online analyzer for flexible water quality monitoring with digital or analog sensors, 7-inch touchscreen operation, multiple output options, and expandable sensor configuration.
Best for: Surface water, drinking water source, aquaculture, seawater, and environmental water quality monitoring, Wastewater treatment, industrial process water, and multi-parameter online monitoring stations, Projects requiring flexible sensor selection and centralized transmitter display.
Specifications
- Sensor capacity: Up to 7 sensors depending on configuration
- Display: 7-inch color touchscreen
- Output: 4-20 mA, MODBUS RS485, optional wireless data transmission
- Temperature: Thermistor method, 0-80°C, accuracy ±0.5°C
- pH: Glass electrode, 0-14 pH, accuracy ±0.1 pH, sensor size 28.7 x 195 mm
- Conductivity: Electrochemical method, 10 µS/cm to 5000 µS/cm (K=1.0), accuracy ±3% or ±3 µS/cm
- Dissolved oxygen: Fluorescence method, 0-20 mg/L or 0-200% saturation, accuracy ±3% or ±0.3 mg/L
- Turbidity: Optical scattering, 0.01-100 NTU or 0.01-4000 NTU, accuracy ±2% or ±0.1 NTU
- Suspended solids / sludge concentration: Optical scattering, 0.01-20000 mg/L, 0.01-45000 mg/L, or 0.01-120000 mg/L
- Residual chlorine: Constant-voltage electrode method, 0-2 mg/L or 0-20 mg/L optional
- Chlorophyll: Fluorescence method, 0-500 µg/L, accuracy ±5% against rhodamine reference
- Blue-green algae: Fluorescence method, 0-300000 cells/mL, accuracy ±10% against rhodamine reference
- UVCOD: Optical method, 0-2000 mg/L COD (2 mm), 0-1000 mg/L COD (5 mm), or 0-90 mg/L COD (50 mm)
- Nitrate: Optical method, 0.1-100 mg/L (1 mm) or 0.1-50 mg/L (2 mm), accuracy ±5%
- Ammonia nitrogen: Ion selective electrode, NH4-N 0.1-3000 mg/L, optional K+ compensation 0.5-5000 mg/L
- Optional parameters: ORP and additional high-accuracy sensors can be configured
Applications
- Surface water, drinking water source, aquaculture, seawater, and environmental water quality monitoring
- Wastewater treatment, industrial process water, and multi-parameter online monitoring stations
- Projects requiring flexible sensor selection and centralized transmitter display
- Surface water applications
- Drinking water source applications
- Aquaculture applications
- Wastewater treatment applications
- Industrial process water applications
- Environmental monitoring applications
- Seawater monitoring applications
- Field inspection applications
Benefits
- Supports up to seven FUNEL sensors with modular digital or analog interfaces
- Measures pH, ORP, conductivity, dissolved oxygen, turbidity, suspended solids, algae, COD, ammonia, nitrate, and more
- 7-inch color touchscreen with guided operation, data storage, and export functions
- Supports 4-20 mA, MODBUS RS485, and optional wireless data transmission
- Plug-and-play sensor design reduces installation and replacement workload
- Suitable for optical, electrochemical, fluorescence, and ion selective electrode sensors
Frequently asked questions
What does the MUC-200 measure?
MUC-200 is configured for Sensor capacity: Up to 7 sensors depending on configuration; Display: 7-inch color touchscreen; Output: 4-20 mA, MODBUS RS485, optional wireless data transmission; Temperature: Thermistor method, 0-80°C, accuracy ±0.5°C.
Where is the MUC-200 used?
Typical applications include Surface water, drinking water source, aquaculture, seawater, and environmental water quality monitoring, Wastewater treatment, industrial process water, and multi-parameter online monitoring stations, Projects requiring flexible sensor selection and centralized transmitter display, Surface water applications.
How do I select or order the MUC-200?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
