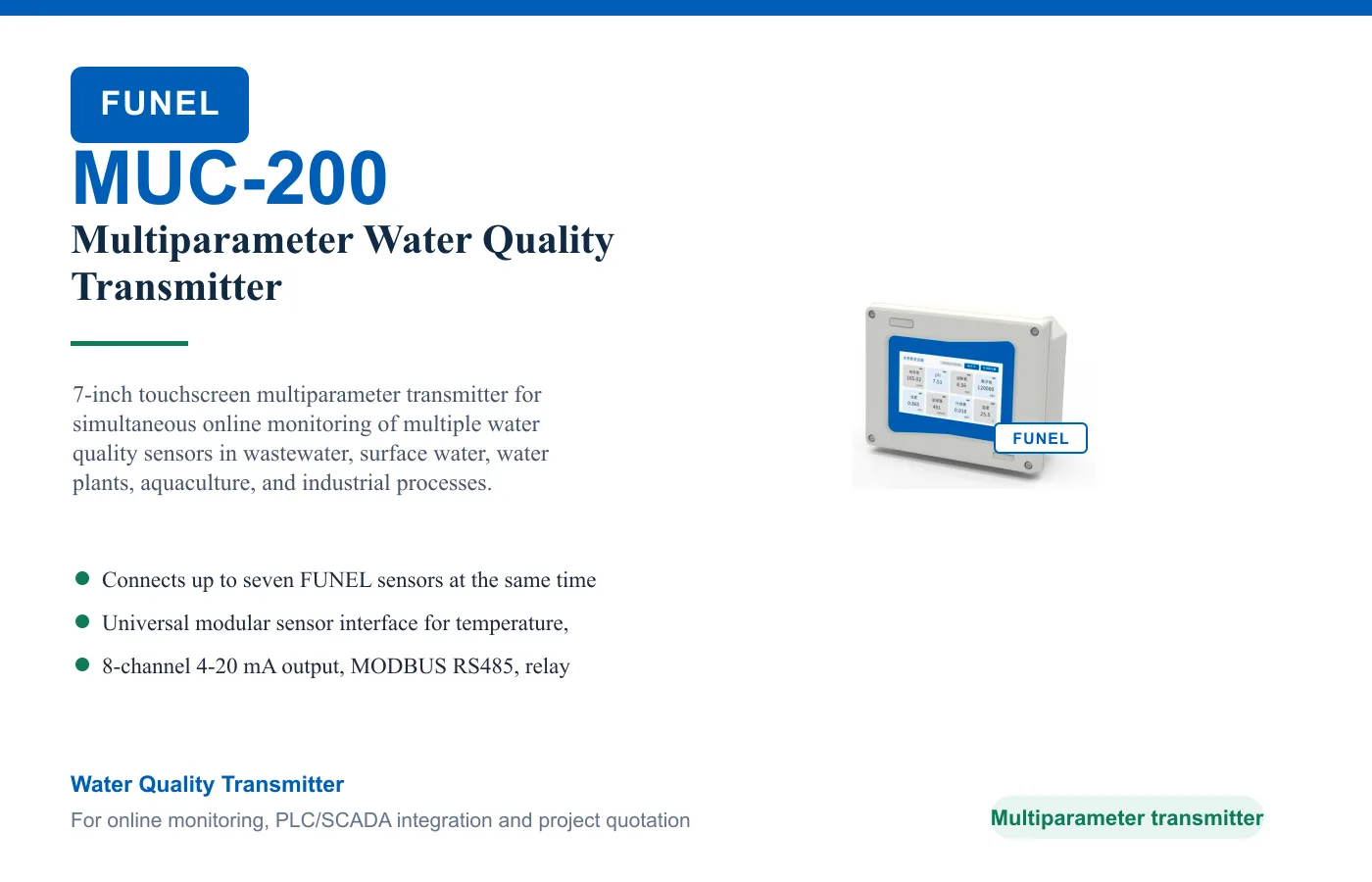

MUC-200 Multiparameter Water Quality Transmitter
Model: MUC-200
7-inch touchscreen multiparameter transmitter for simultaneous online monitoring of multiple water quality sensors in wastewater, surface water, water plants, aquaculture, and industrial processes.
MUC-200
7-inch touchscreen multiparameter transmitter for simultaneous online monitoring of multiple water quality sensors in wastewater, surface water, water plants, aquaculture, and industrial processes.
Best for: Multiparameter online monitoring in municipal wastewater treatment plants and industrial wastewater stations, Surface water, water plant, aquaculture, industrial process water, and environmental monitoring systems, PLC, SCADA, telemetry, and remote data acquisition projects requiring multiple sensors in one transmitter.
Specifications
- Display: 7-inch touchscreen with LED backlight, readable under direct sunlight
- Power supply: AC 85-500 VAC; DC 9-36 VDC
- Output: 8-channel 4-20 mA analog output with configurable response parameters and response values
- Relay: 4 relays with configurable response parameters and response values
- Communication: Standard MODBUS RS485 for real-time measured value transmission; optional wireless communication: 4G UDP/TCP, NB UDP
- Main material: PA66 + GF25 + FR upper cover; powder-coated aluminum alloy lower shell
- Storage temperature: -20 to 70°C
- Operating temperature: -15 to 60°C
- Protection: IP65 / NEMA4X
- Size: 260 x 200 x 123.3 mm (L x W x H)
- Weight: Approx. 2.0 kg
Applications
- Multiparameter online monitoring in municipal wastewater treatment plants and industrial wastewater stations
- Surface water, water plant, aquaculture, industrial process water, and environmental monitoring systems
- PLC, SCADA, telemetry, and remote data acquisition projects requiring multiple sensors in one transmitter
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Aquaculture applications
- Environmental monitoring applications
- System integration applications
Benefits
- Connects up to seven FUNEL sensors at the same time for high integration and lower maintenance cost
- Universal modular sensor interface for temperature, pH, ORP, conductivity, DO, turbidity, SS, chlorophyll, blue-green algae, UVCOD, UVNO3, ammonia, transparency, residual chlorine, and other parameters
- 8-channel 4-20 mA output, MODBUS RS485, relay output, and optional wireless communication
- 7-inch color touchscreen with simple operation and low training cost
- Data storage, historical curve, export, error display, alarm upload, and multi-level management authority
- Wall mounting or panel mounting for flexible project installation
Frequently asked questions
What does the MUC-200 measure?
MUC-200 is configured for Display: 7-inch touchscreen with LED backlight, readable under direct sunlight; Power supply: AC 85-500 VAC; DC 9-36 VDC; Output: 8-channel 4-20 mA analog output with configurable response parameters and response values; Relay: 4 relays with configurable response parameters and response values.
Where is the MUC-200 used?
Typical applications include Multiparameter online monitoring in municipal wastewater treatment plants and industrial wastewater stations, Surface water, water plant, aquaculture, industrial process water, and environmental monitoring systems, PLC, SCADA, telemetry, and remote data acquisition projects requiring multiple sensors in one transmitter, Wastewater treatment applications.
How do I select or order the MUC-200?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
