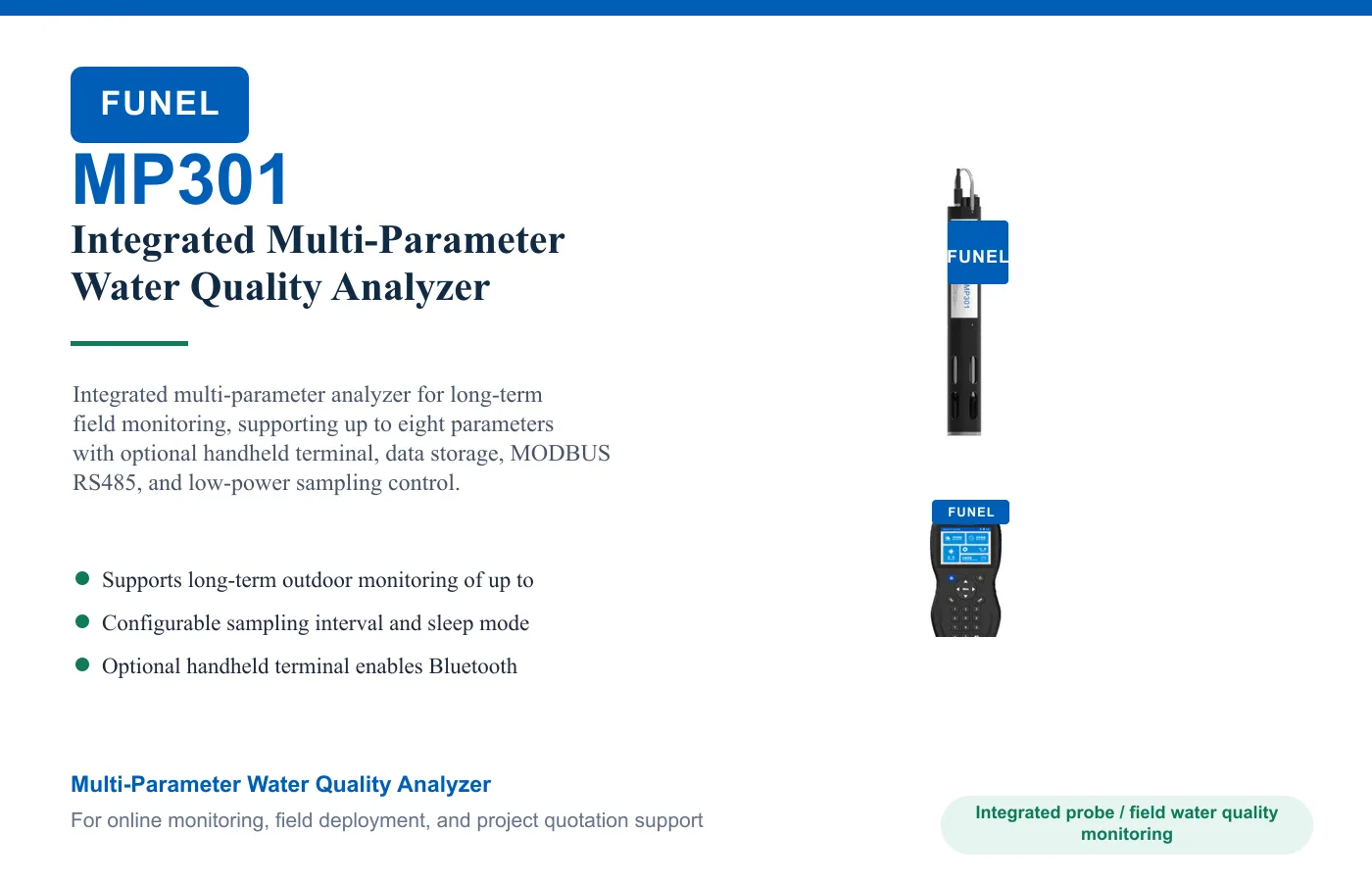

MP301 Integrated Multi-Parameter Water Quality Analyzer
Model: MP301
Integrated multi-parameter analyzer for long-term field monitoring, supporting up to eight parameters with optional handheld terminal, data storage, MODBUS RS485, and low-power sampling control.
MP301
Integrated multi-parameter analyzer for long-term field monitoring, supporting up to eight parameters with optional handheld terminal, data storage, MODBUS RS485, and low-power sampling control.
Best for: River, lake, reservoir, drinking water source, groundwater, and seawater monitoring, Field monitoring stations requiring integrated sensors, battery power, and optional handheld operation, Multi-parameter projects requiring depth, temperature, pH, ORP, conductivity, turbidity, DO, algae, nutrient, and ion monitoring.
Specifications
- Host power supply: 9-36 VDC
- Host power consumption: 3 W
- Communication: MODBUS RS485
- Host size: 90 x 635 mm (diameter x length)
- Maximum pressure depth: 30 m for complete set; 10 m for housed electrode configuration
- Operating temperature: 0-40°C, non-freezing
- Storage temperature: 0-50°C
- Host protection: IP68
- Host weight: 5 kg
- Battery capacity: 8 x 3.6 V lithium battery
- Handheld display: 3.5-inch color LCD, adjustable backlight
- Handheld storage: More than 100000 records
- Handheld power: Built-in battery, 4 x 3.7 V lithium battery
- Handheld protection: IP67
- Handheld size: 203 x 100 x 43 mm
- Depth: Pressure method, 0-61 m, 2 cm resolution, accuracy ±0.3%
- Temperature: Thermistor method, 0-60°C, 0.1°C resolution, accuracy ±0.5°C
- pH: Glass electrode, 0-14 pH, 0.01 pH resolution, accuracy ±0.1 pH
- ORP: Glass electrode, -1000 mV to +1000 mV, 1 mV resolution, accuracy ±5 mV
- Conductivity: Electrochemical method, 10 µS/cm to 200 mS/cm, accuracy ±1% or ±1 µS/cm
- Turbidity: Optical method, 0-1000 NTU, 0.1 NTU resolution, accuracy ±5% or ±0.3 NTU
- Dissolved oxygen: Fluorescence method, 0-20 mg/L, 0-20 ppm, or 0-200% saturation, accuracy ±3% or ±0.3 mg/L
- Chlorophyll: Fluorescence method, 0-500 µg/L, accuracy ±5% against rhodamine reference
- Blue-green algae: Fluorescence method, 0-300000 cells/mL, 20 cells/mL resolution
- Ammonia nitrogen: Ion selective electrode, 0.1-3000 mg/L-N, accuracy ±5% or ±0.2 mg/L
- Nitrate: Ion selective electrode, 0.5-3000 mg/L-N, accuracy ±10% or ±0.2 mg/L
- Chloride: Ion selective electrode, 3-3500 mg/L, accuracy ±10% or ±0.2 mg/L
- Fluoride: Ion selective electrode, 0.5-1000 mg/L, accuracy ±10% or ±0.2 mg/L
- Potassium ion: Ion selective electrode, 0.5-5000 mg/L, accuracy ±10% or ±0.2 mg/L
Applications
- River, lake, reservoir, drinking water source, groundwater, and seawater monitoring
- Field monitoring stations requiring integrated sensors, battery power, and optional handheld operation
- Multi-parameter projects requiring depth, temperature, pH, ORP, conductivity, turbidity, DO, algae, nutrient, and ion monitoring
- Surface water applications
- Drinking water source applications
- Aquaculture applications
- Wastewater treatment applications
- Industrial process water applications
- Environmental monitoring applications
- Seawater monitoring applications
- Field inspection applications
Benefits
- Supports long-term outdoor monitoring of up to eight water quality parameters
- Configurable sampling interval and sleep mode reduce power consumption for field projects
- Optional handheld terminal enables Bluetooth viewing, calibration, and historical data download
- Standard MODBUS RS485 output supports data logger or remote networking integration
- Built-in data storage up to 100000 records with LED status indication
- Plug-in sensor design, optional cleaning brush, reverse-polarity protection, and protected RS485 wiring
Frequently asked questions
What does the MP301 measure?
MP301 is configured for Host power supply: 9-36 VDC; Host power consumption: 3 W; Communication: MODBUS RS485; Host size: 90 x 635 mm (diameter x length).
Where is the MP301 used?
Typical applications include River, lake, reservoir, drinking water source, groundwater, and seawater monitoring, Field monitoring stations requiring integrated sensors, battery power, and optional handheld operation, Multi-parameter projects requiring depth, temperature, pH, ORP, conductivity, turbidity, DO, algae, nutrient, and ion monitoring, Surface water applications.
How do I select or order the MP301?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
