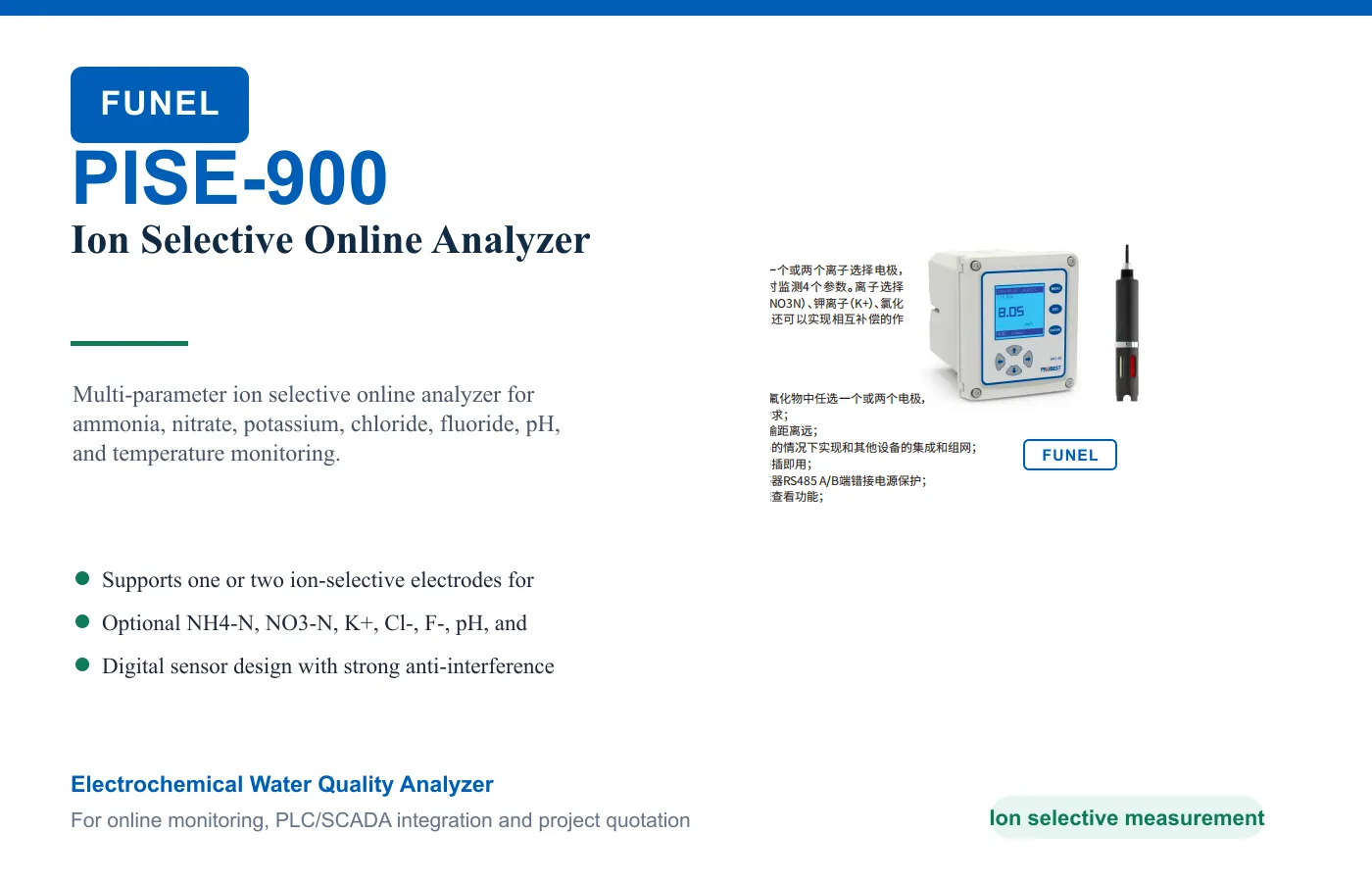

PISE-900 Ion Selective Online Analyzer
Model: PISE-900
Multi-parameter ion selective online analyzer for ammonia, nitrate, potassium, chloride, fluoride, pH, and temperature monitoring.
PISE-900
Multi-parameter ion selective online analyzer for ammonia, nitrate, potassium, chloride, fluoride, pH, and temperature monitoring.
Best for: Ion concentration monitoring in surface water, groundwater, industrial process water, and wastewater treatment, Online ammonia and nitrate monitoring for environmental water quality and treatment control, Wastewater treatment applications.
Specifications
- Measurement range: NH4-N: 0.1-3000 mg/L; NO3-N: 0.5-3000 mg/L; K+: 0.5-5000 mg/L; Cl-: 3-3500 mg/L; F-: 0.5-1000 mg/L; pH: 5-10; temperature: 0-40°C
- Resolution: Ion parameters: 0.01 mg/L; temperature: 0.1°C; pH: 0.01
- Accuracy: NH4-N: ±5% of reading or ±0.2 mg/L, whichever is greater; other ions: ±10% or ±0.2 mg/L, whichever is greater; temperature: ±0.5°C; pH: ±0.1 pH
- Repeatability: ±5% or ±0.2 mg/L, whichever is greater
- Sensor size: 55 x 342 mm (diameter x length)
- Sensor weight: <1 kg
- Sensor protection: IP68 / NEMA6P
- Power supply: AC 85-500 VAC; DC 9-36 VDC
- Output: 3-channel 4-20 mA
- Relay: Three relays with configurable response parameters
- Communication: MODBUS RS485
- Storage temperature: 0-50°C, non-freezing
- Operating temperature: 0-40°C, non-freezing
- Transmitter size: 145 x 125 x 162 mm (L x W x H)
- Transmitter weight: 1.35 kg
- Transmitter protection: IP66 / NEMA4X
- Cable length: 10 m standard cable; extendable to 100 m
Applications
- Ion concentration monitoring in surface water, groundwater, industrial process water, and wastewater treatment
- Online ammonia and nitrate monitoring for environmental water quality and treatment control
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- Supports one or two ion-selective electrodes for flexible parameter combinations
- Optional NH4-N, NO3-N, K+, Cl-, F-, pH, and temperature measurement
- Digital sensor design with strong anti-interference performance
- Standard digital output enables integration and networking without transmitter dependency
- Fast field installation with reverse-polarity and RS485 protection
- Data display, historical storage, and optional wireless transmission module
Frequently asked questions
What does the PISE-900 measure?
PISE-900 is configured for Measurement range: NH4-N: 0.1-3000 mg/L; NO3-N: 0.5-3000 mg/L; K+: 0.5-5000 mg/L; Cl-: 3-3500 mg/L; F-: 0.5-1000 mg/L; pH: 5-10; temperature: 0-40°C; Resolution: Ion parameters: 0.01 mg/L; temperature: 0.1°C; pH: 0.01; Accuracy: NH4-N: ±5% of reading or ±0.2 mg/L, whichever is greater; other ions: ±10% or ±0.2 mg/L, whichever is greater; temperature: ±0.5°C; pH: ±0.1 pH; Repeatability: ±5% or ±0.2 mg/L, whichever is greater.
Where is the PISE-900 used?
Typical applications include Ion concentration monitoring in surface water, groundwater, industrial process water, and wastewater treatment, Online ammonia and nitrate monitoring for environmental water quality and treatment control, Wastewater treatment applications, Drinking water applications.
How do I select or order the PISE-900?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
Tell us your water type and signal requirements
We will help select the right analyzer, sensor, controller, output signal and installation plan for your project.
Get a project quote
Send parameter, measuring range, quantity, output signal and application. We will prepare a quotation and datasheet.
Request quote
