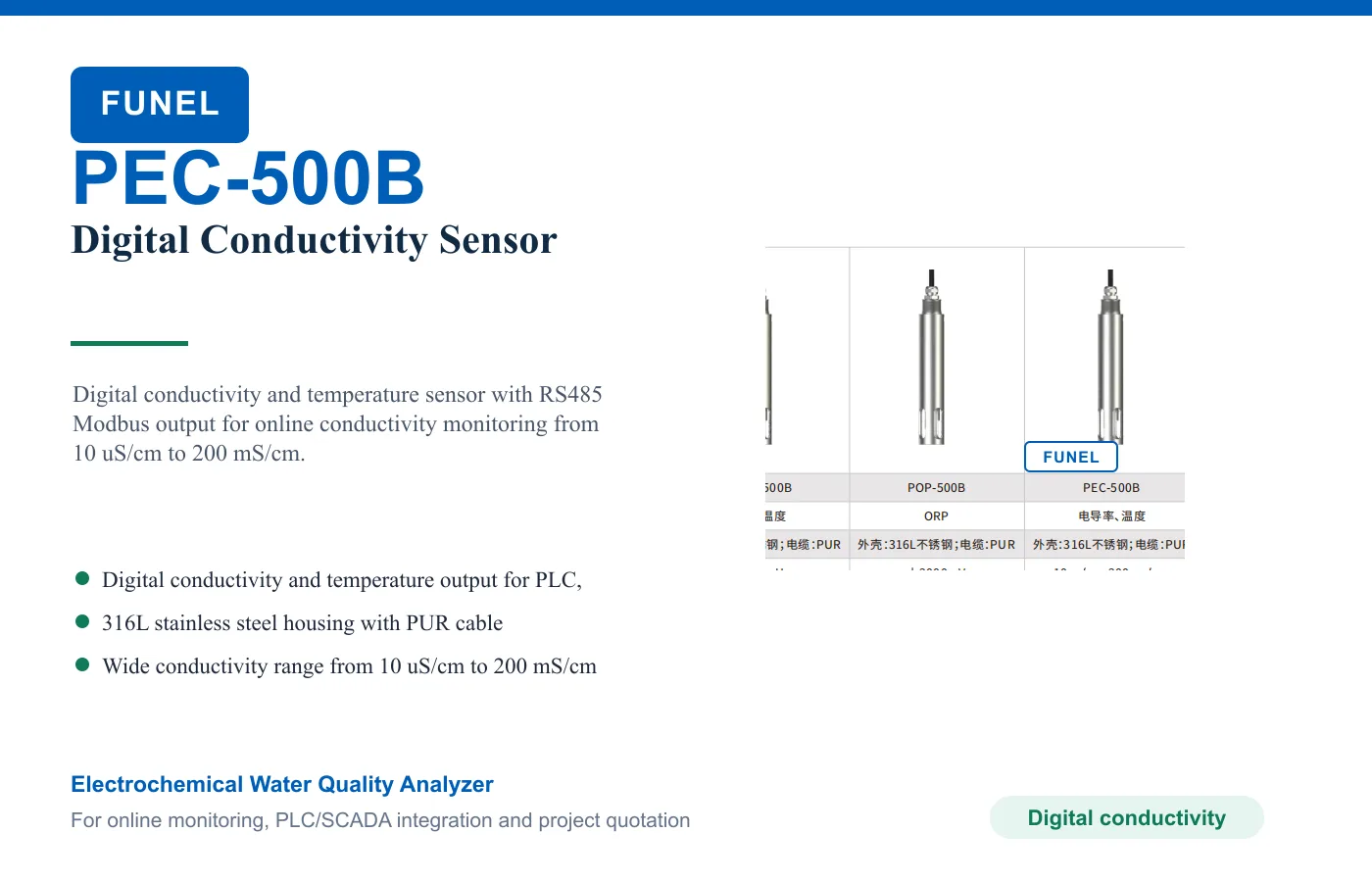

PEC-500B Digital Conductivity Sensor
Model: PEC-500B
Digital conductivity and temperature sensor with RS485 Modbus output for online conductivity monitoring from 10 uS/cm to 200 mS/cm.
PEC-500B
Digital conductivity and temperature sensor with RS485 Modbus output for online conductivity monitoring from 10 uS/cm to 200 mS/cm.
Best for: Digital conductivity monitoring in drinking water, industrial water, process water, and wastewater treatment, Online conductivity and temperature measurement for automation and remote monitoring systems, Wastewater treatment applications.
Specifications
- Measured parameters: Conductivity and temperature
- Main material: 316L stainless steel housing; PUR cable
- Measurement range: 10 uS/cm to 200 mS/cm
- Resolution: 0.01 uS/cm to 1 uS/cm depending on range
- Accuracy: ±1% or ±1 uS/cm, whichever is greater
- Repeatability: ±1% or ±1 uS/cm, whichever is greater
- Temperature range: 0-100°C
- Temperature resolution: 0.1°C
- Temperature accuracy: 0.5°C
- Electrode pressure: 0-0.1 MPa
- Electrode temperature: 0-45°C, non-freezing
- Power supply: 9-36 VDC
- Communication: RS485, standard Modbus protocol
- Protection: IP68 / NEMA6P
- Size: 34 x 230 mm (diameter x length)
- Cable length: 10 m standard; extendable to 200 m
Applications
- Digital conductivity monitoring in drinking water, industrial water, process water, and wastewater treatment
- Online conductivity and temperature measurement for automation and remote monitoring systems
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- Digital conductivity and temperature output for PLC, SCADA, and telemetry systems
- 316L stainless steel housing with PUR cable
- Wide conductivity range from 10 uS/cm to 200 mS/cm
- 9-36 VDC power and RS485 standard Modbus communication
- IP68 / NEMA6P protection for online field installation
Frequently asked questions
What does the PEC-500B measure?
PEC-500B is configured for Measured parameters: Conductivity and temperature; Main material: 316L stainless steel housing; PUR cable; Measurement range: 10 uS/cm to 200 mS/cm; Resolution: 0.01 uS/cm to 1 uS/cm depending on range.
Where is the PEC-500B used?
Typical applications include Digital conductivity monitoring in drinking water, industrial water, process water, and wastewater treatment, Online conductivity and temperature measurement for automation and remote monitoring systems, Wastewater treatment applications, Drinking water applications.
How do I select or order the PEC-500B?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
