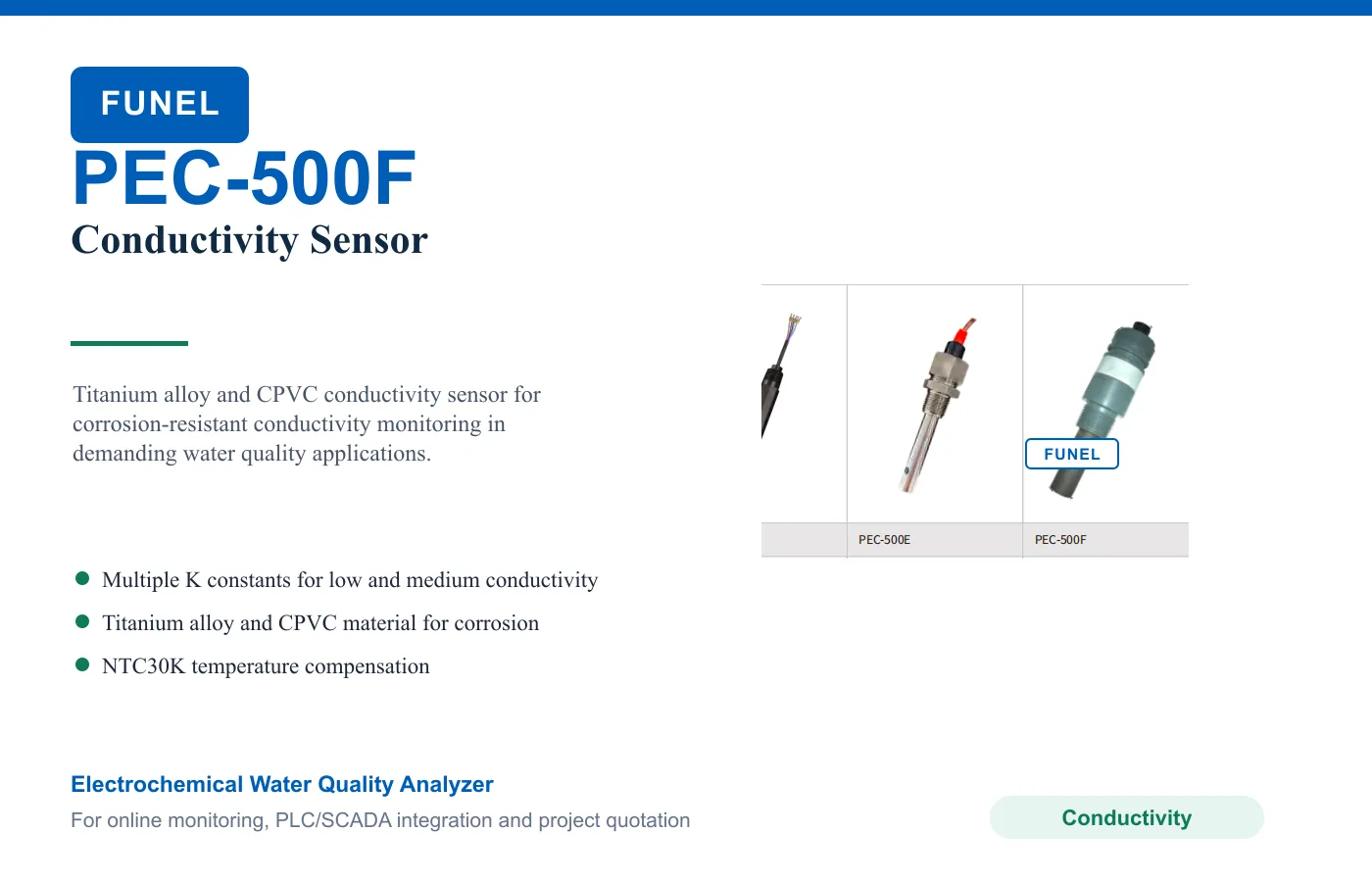

PEC-500F Conductivity Sensor
Model: PEC-500F
Titanium alloy and CPVC conductivity sensor for corrosion-resistant conductivity monitoring in demanding water quality applications.
PEC-500F
Titanium alloy and CPVC conductivity sensor for corrosion-resistant conductivity monitoring in demanding water quality applications.
Best for: Conductivity monitoring for industrial water, chemical process water, and corrosion-sensitive applications, Online water quality monitoring in treatment systems requiring titanium alloy or CPVC materials, Wastewater treatment applications.
Specifications
- Measurement range: K=0.01: 0.05-20 uS/cm; K=0.05: 0.05-100 uS/cm; K=0.1: 0.1-200 uS/cm
- Linearity error: 1.0% FS
- Temperature compensation: NTC30K
- Main material: Titanium alloy and CPVC
- Pressure range: ≤0.6 MPa
- Operating temperature: 0-80°C, non-freezing
- Weight: 0.2 kg
- Size: 17.0 mm diameter; length below thread varies by electrode constant
- Installation thread: 3/4 inch NPT
- Cable length: 10 m standard; extendable to 30 m
Applications
- Conductivity monitoring for industrial water, chemical process water, and corrosion-sensitive applications
- Online water quality monitoring in treatment systems requiring titanium alloy or CPVC materials
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- Multiple K constants for low and medium conductivity ranges
- Titanium alloy and CPVC material for corrosion resistance
- NTC30K temperature compensation
- 3/4 inch NPT process connection
- Reliable conductivity measurement for industrial and chemical water conditions
Frequently asked questions
What does the PEC-500F measure?
PEC-500F is configured for Measurement range: K=0.01: 0.05-20 uS/cm; K=0.05: 0.05-100 uS/cm; K=0.1: 0.1-200 uS/cm; Linearity error: 1.0% FS; Temperature compensation: NTC30K; Main material: Titanium alloy and CPVC.
Where is the PEC-500F used?
Typical applications include Conductivity monitoring for industrial water, chemical process water, and corrosion-sensitive applications, Online water quality monitoring in treatment systems requiring titanium alloy or CPVC materials, Wastewater treatment applications, Drinking water applications.
How do I select or order the PEC-500F?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
