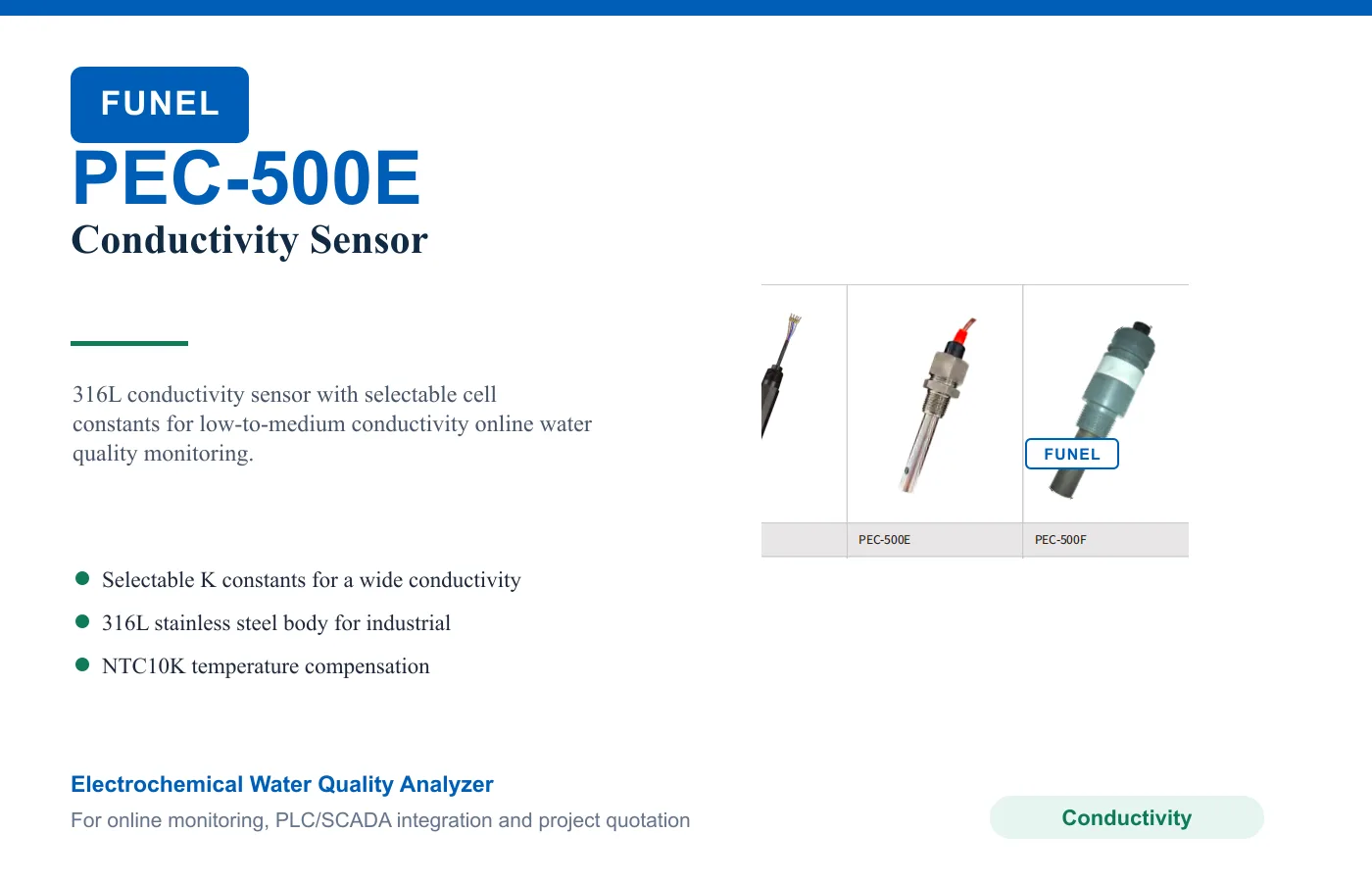

PEC-500E Conductivity Sensor
Model: PEC-500E
316L conductivity sensor with selectable cell constants for low-to-medium conductivity online water quality monitoring.
PEC-500E
316L conductivity sensor with selectable cell constants for low-to-medium conductivity online water quality monitoring.
Best for: Conductivity monitoring in industrial water, purified water, and process water systems, Online conductivity control for water treatment and quality assurance loops, Wastewater treatment applications.
Specifications
- Measurement range: K=0.01: 0.055-20 uS/cm; K=0.1: 0.5-200 uS/cm; K=1.0: 1.0-2000 uS/cm
- Linearity error: 1.5% FS
- Temperature compensation: NTC10K
- Main material: 316L stainless steel
- Pressure range: ≤0.6 MPa
- Operating temperature: 0-50°C, non-freezing
- Weight: 0.2 kg
- Size: 12.0 mm diameter; length below thread varies by electrode constant
- Installation thread: 1/2 inch NPT
- Cable length: 10 m standard; extendable to 30 m
Applications
- Conductivity monitoring in industrial water, purified water, and process water systems
- Online conductivity control for water treatment and quality assurance loops
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- Selectable K constants for a wide conductivity measurement range
- 316L stainless steel body for industrial applications
- NTC10K temperature compensation
- 1/2 inch NPT process connection
- Stable output for transmitter and automation integration
Frequently asked questions
What does the PEC-500E measure?
PEC-500E is configured for Measurement range: K=0.01: 0.055-20 uS/cm; K=0.1: 0.5-200 uS/cm; K=1.0: 1.0-2000 uS/cm; Linearity error: 1.5% FS; Temperature compensation: NTC10K; Main material: 316L stainless steel.
Where is the PEC-500E used?
Typical applications include Conductivity monitoring in industrial water, purified water, and process water systems, Online conductivity control for water treatment and quality assurance loops, Wastewater treatment applications, Drinking water applications.
How do I select or order the PEC-500E?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
