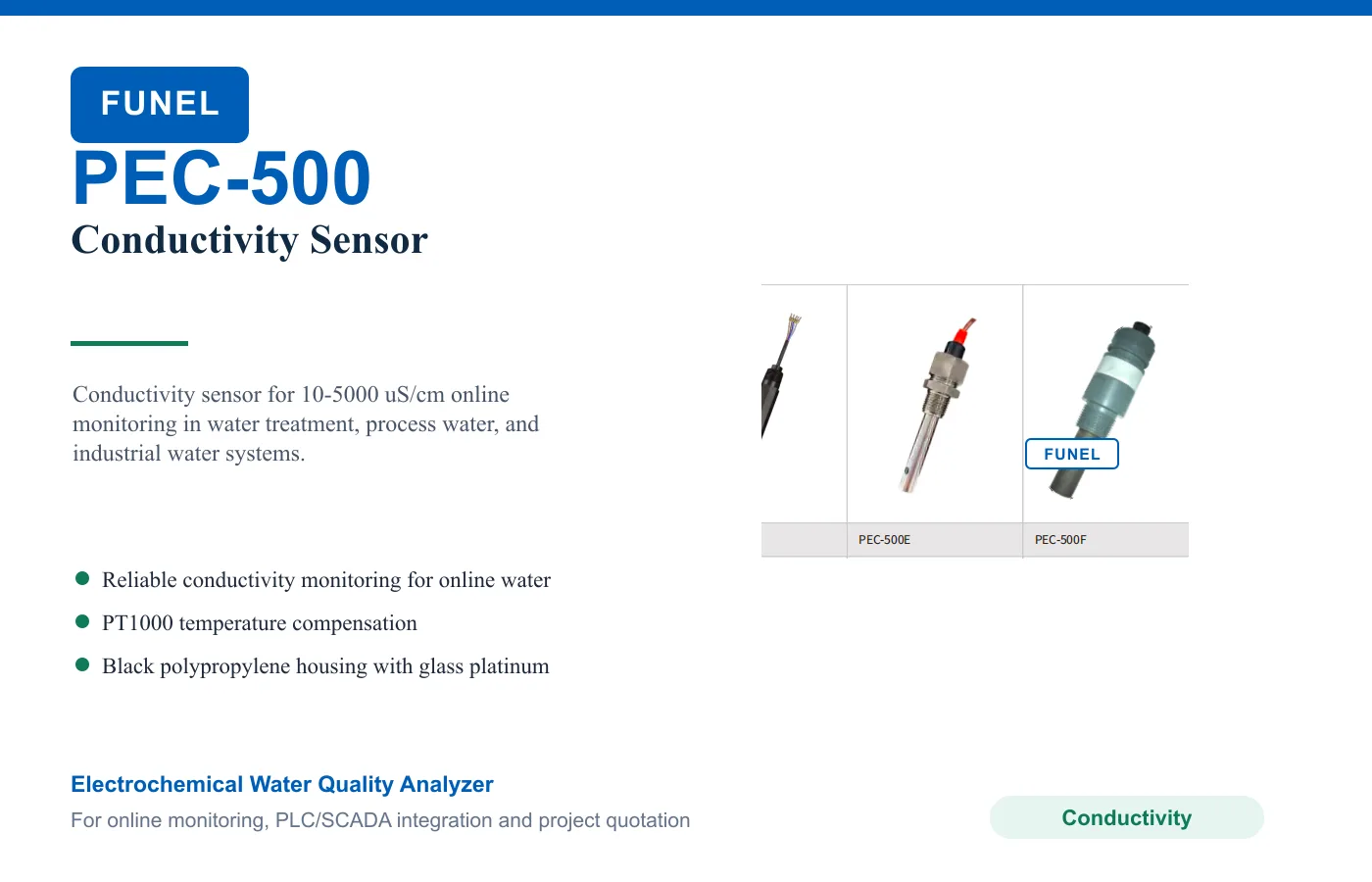

PEC-500 Conductivity Sensor
Model: PEC-500
Conductivity sensor for 10-5000 uS/cm online monitoring in water treatment, process water, and industrial water systems.
PEC-500
Conductivity sensor for 10-5000 uS/cm online monitoring in water treatment, process water, and industrial water systems.
Best for: Online conductivity monitoring for drinking water, industrial water, and process water, Water treatment, cooling water, boiler water, and wastewater conductivity control, Wastewater treatment applications.
Specifications
- Measurement range: 10-5000 uS/cm (K=1.0)
- Linearity error: ±3% of measured value
- Temperature compensation: PT1000
- Main material: Black polypropylene housing; glass platinum electrode
- Pressure range: ≤0.6 MPa
- Operating temperature: 0-80°C, non-freezing
- Weight: 0.2 kg
- Size: 28.7 x 195 mm (diameter x length)
- Installation thread: R3/4 thread
- Cable length: 10 m standard; extendable to 20 m
Applications
- Online conductivity monitoring for drinking water, industrial water, and process water
- Water treatment, cooling water, boiler water, and wastewater conductivity control
- Wastewater treatment applications
- Drinking water applications
- Surface water applications
- Industrial process water applications
- Chemical process applications
- Environmental monitoring applications
Benefits
- Reliable conductivity monitoring for online water quality systems
- PT1000 temperature compensation
- Black polypropylene housing with glass platinum electrode
- R3/4 thread installation for field mounting
- Designed for integration with conductivity transmitters and monitoring systems
Frequently asked questions
What does the PEC-500 measure?
PEC-500 is configured for Measurement range: 10-5000 uS/cm (K=1.0); Linearity error: ±3% of measured value; Temperature compensation: PT1000; Main material: Black polypropylene housing; glass platinum electrode.
Where is the PEC-500 used?
Typical applications include Online conductivity monitoring for drinking water, industrial water, and process water, Water treatment, cooling water, boiler water, and wastewater conductivity control, Wastewater treatment applications, Drinking water applications.
How do I select or order the PEC-500?
Send FUNEL your target parameters, measuring range, water type, quantity and application. We will confirm the configuration and provide a quotation and datasheet.
